Lexus
>>
2012
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Description and Operation
>>
System Diagram
System Diagram

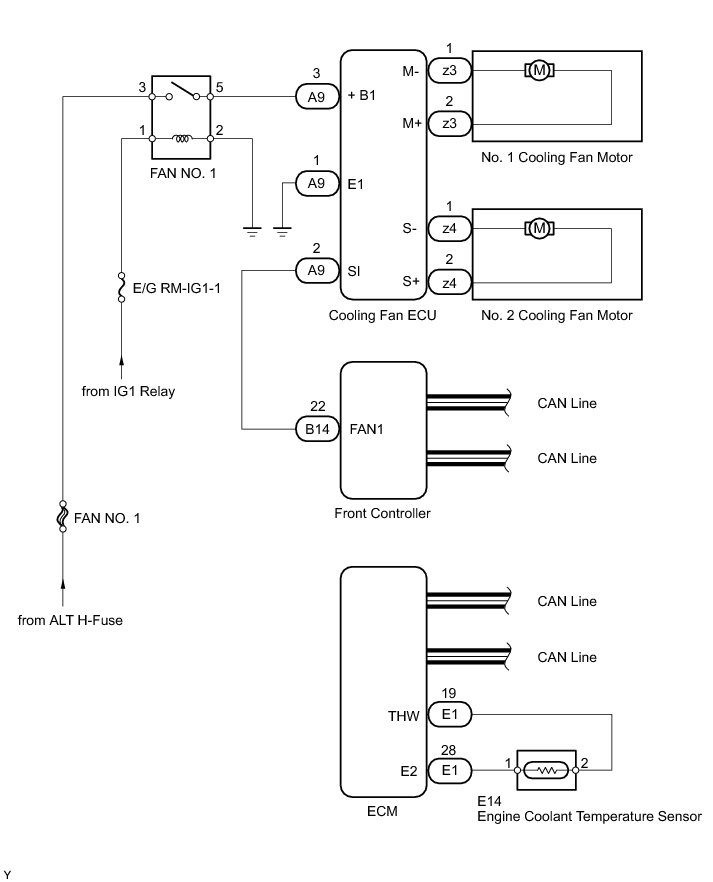

1UR-FSE COOLING:
COOLING SYSTEM
: SYSTEM DIAGRAM
