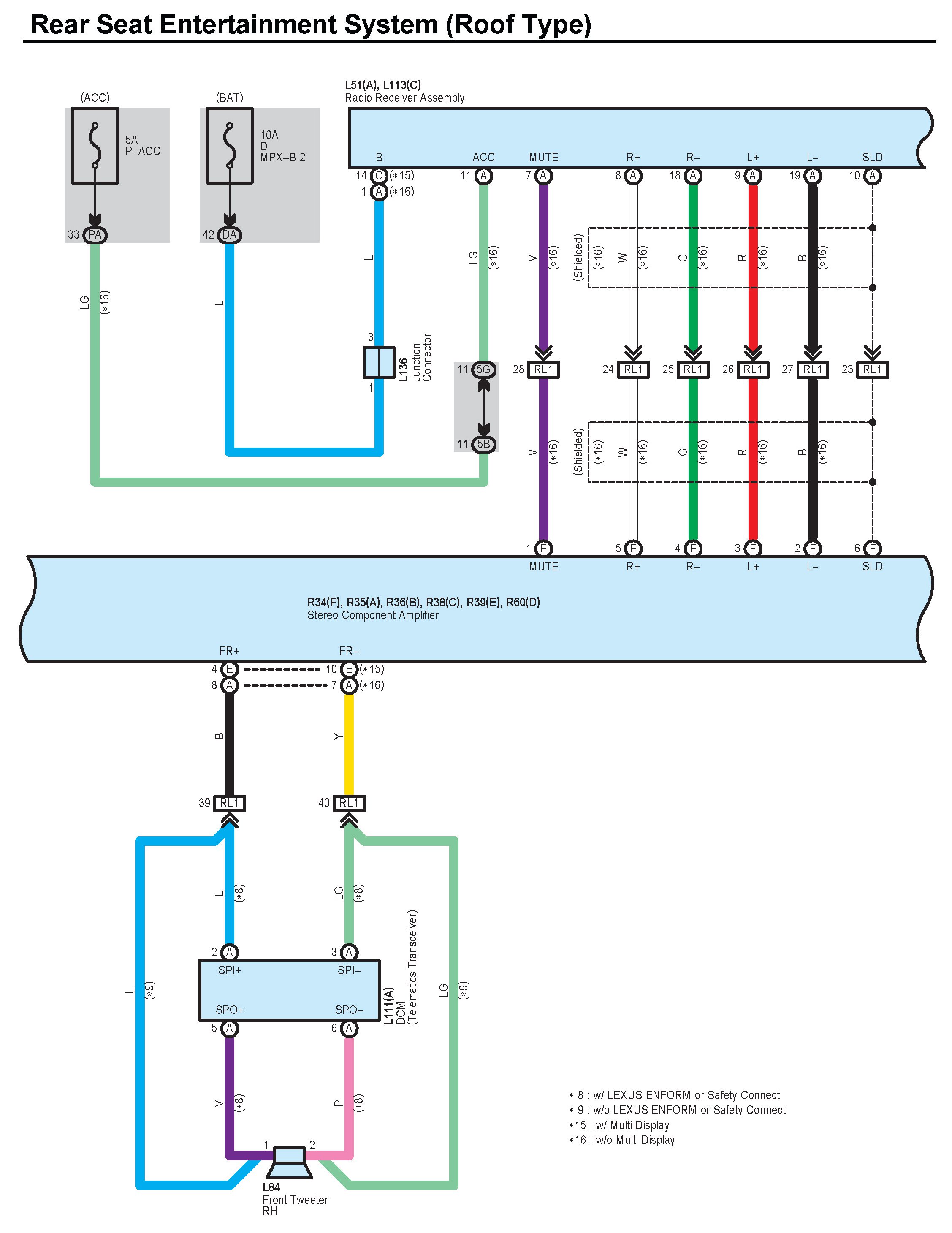

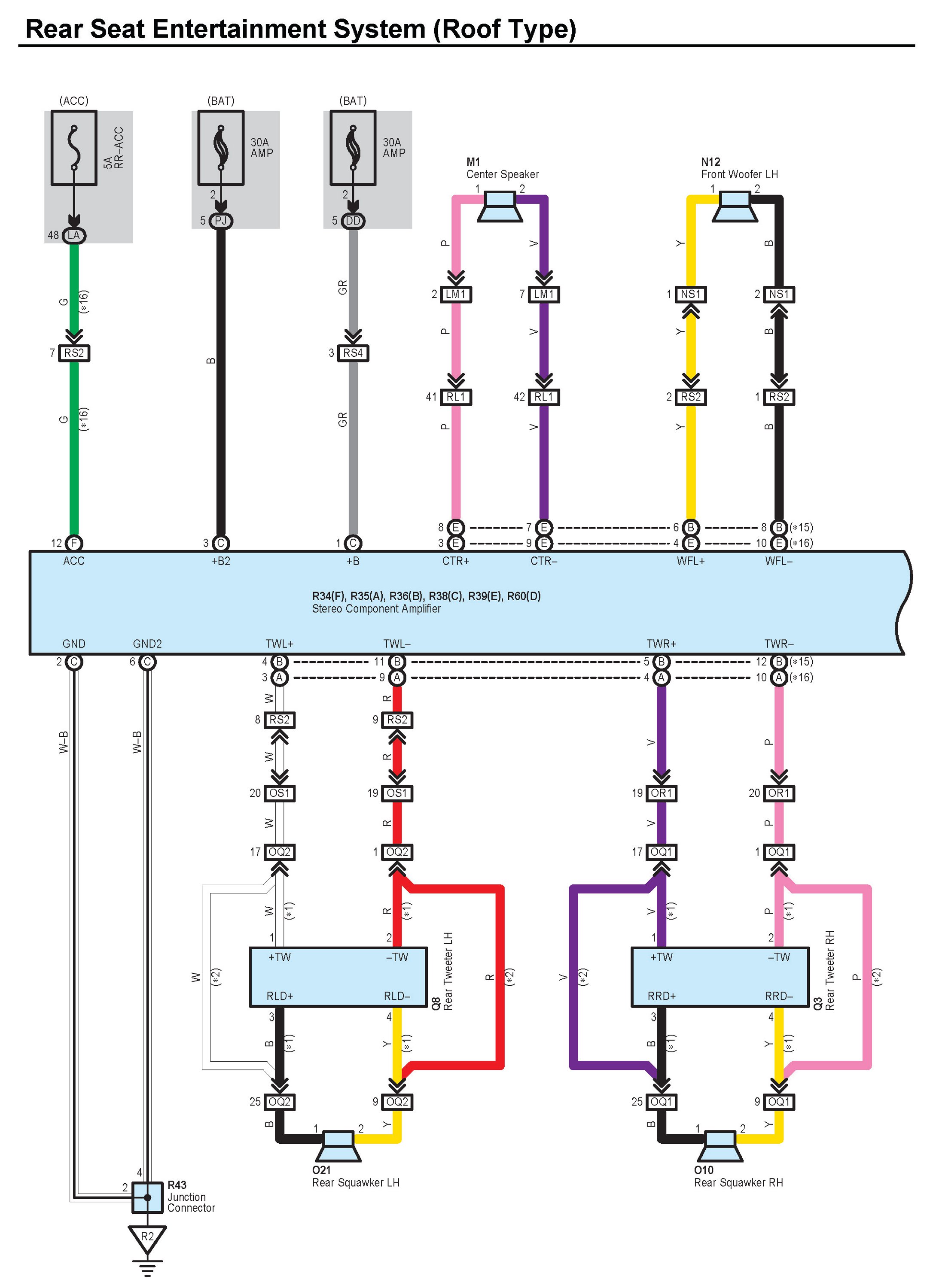

Rear Seat Entertainment System (Roof Type)

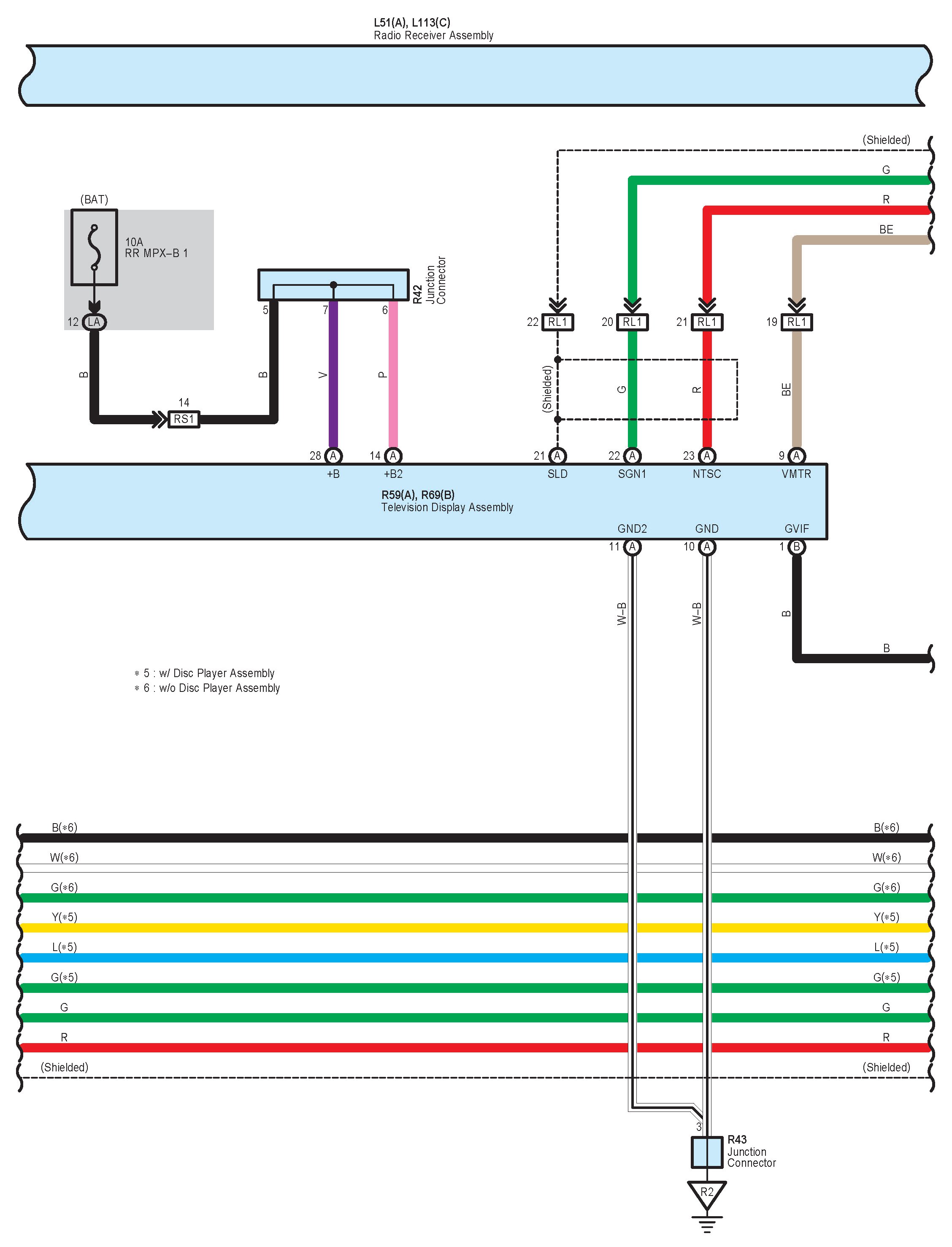

Rear Seat Entertainment System (Roof Type) Part 1:

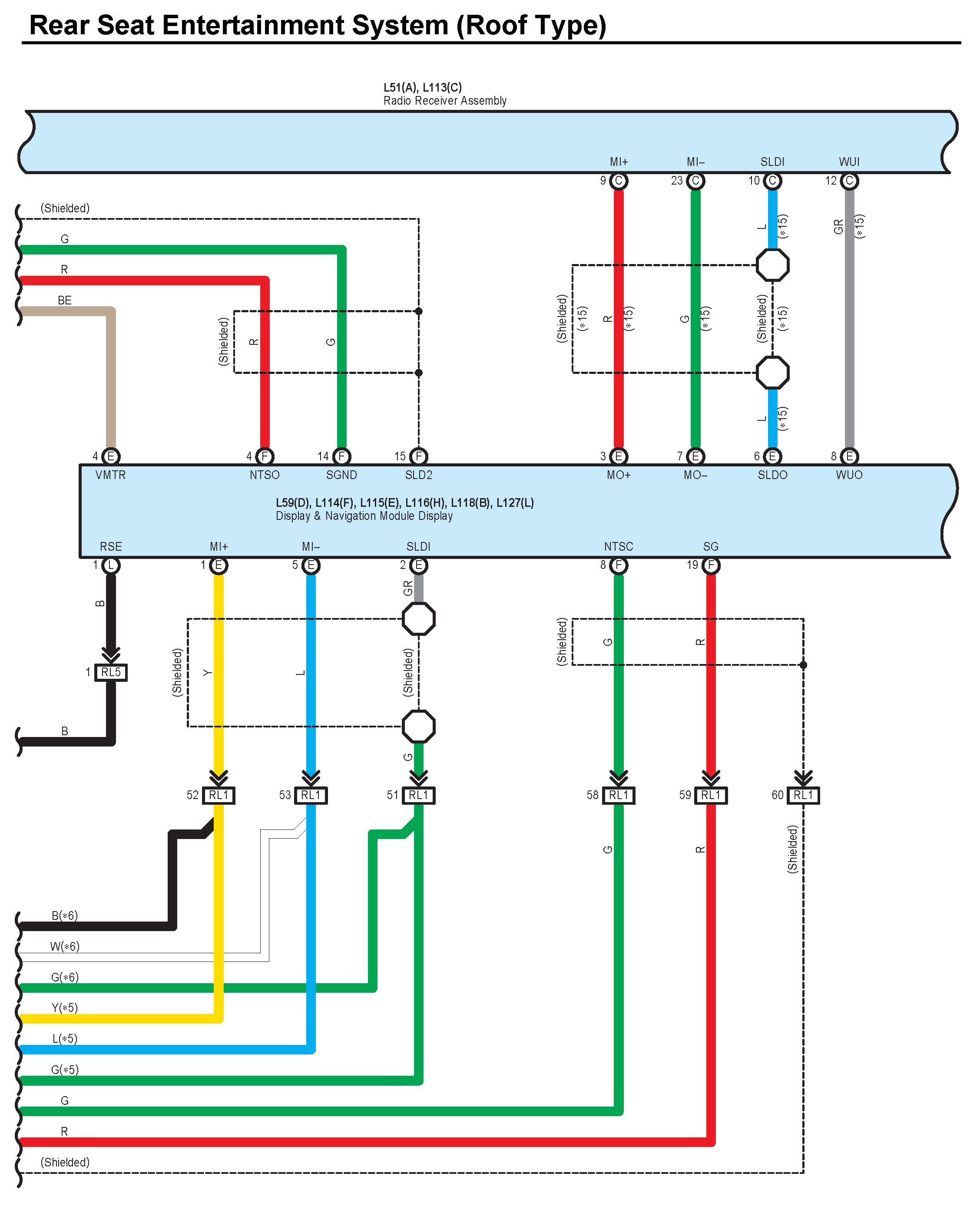

Rear Seat Entertainment System (Roof Type) Part 2:

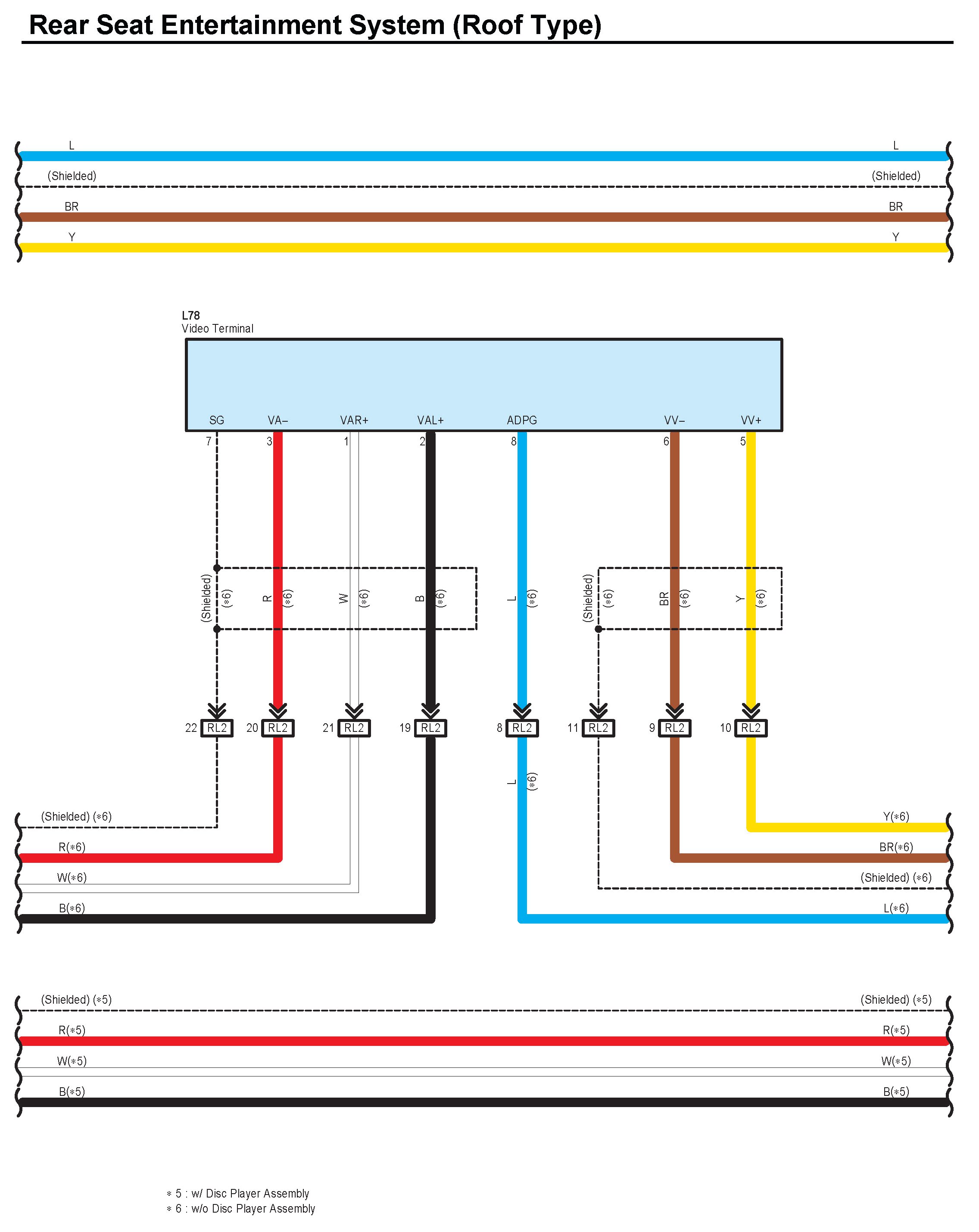

Rear Seat Entertainment System (Roof Type) Part 3:

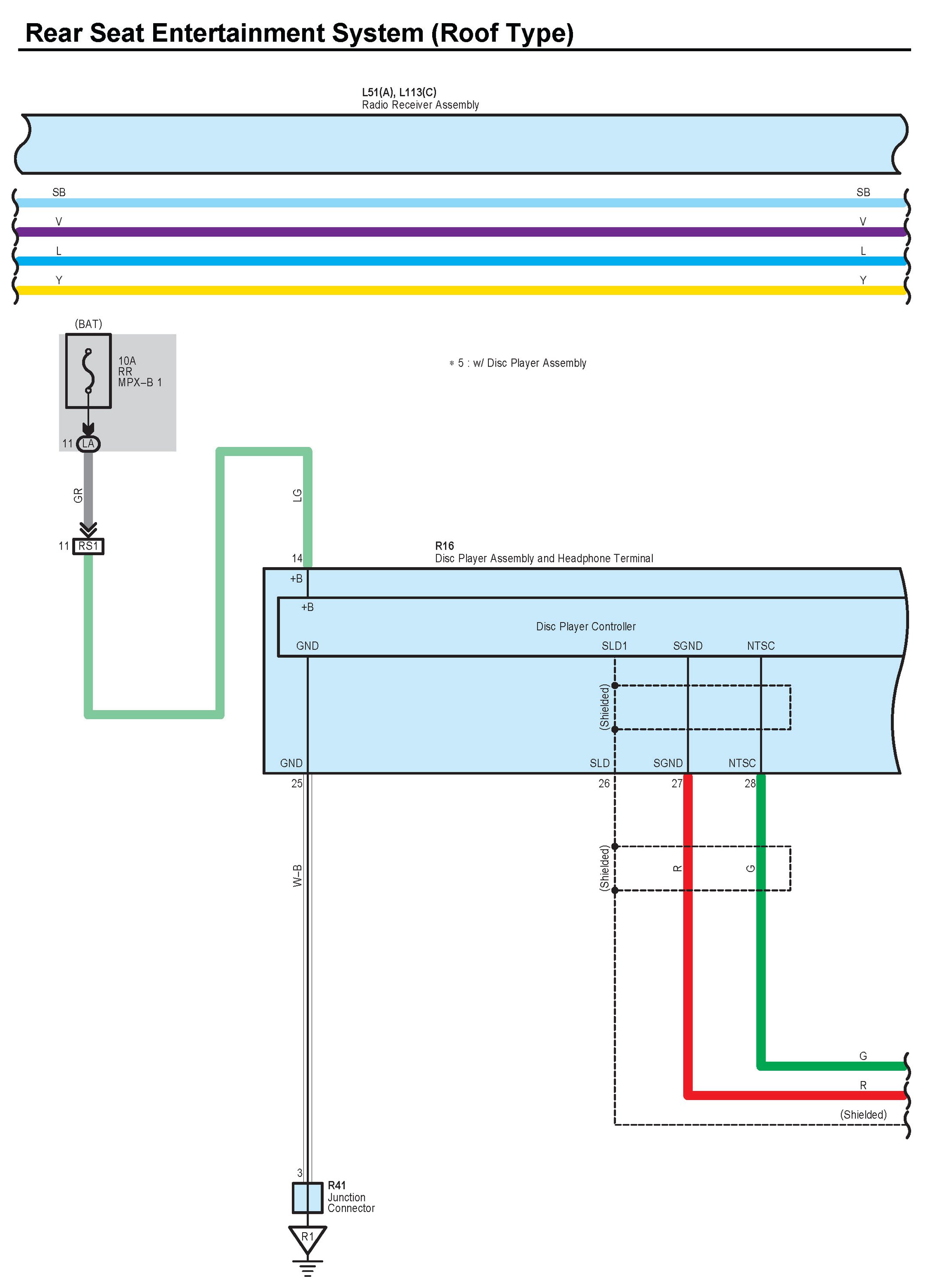

Rear Seat Entertainment System (Roof Type) Part 4:

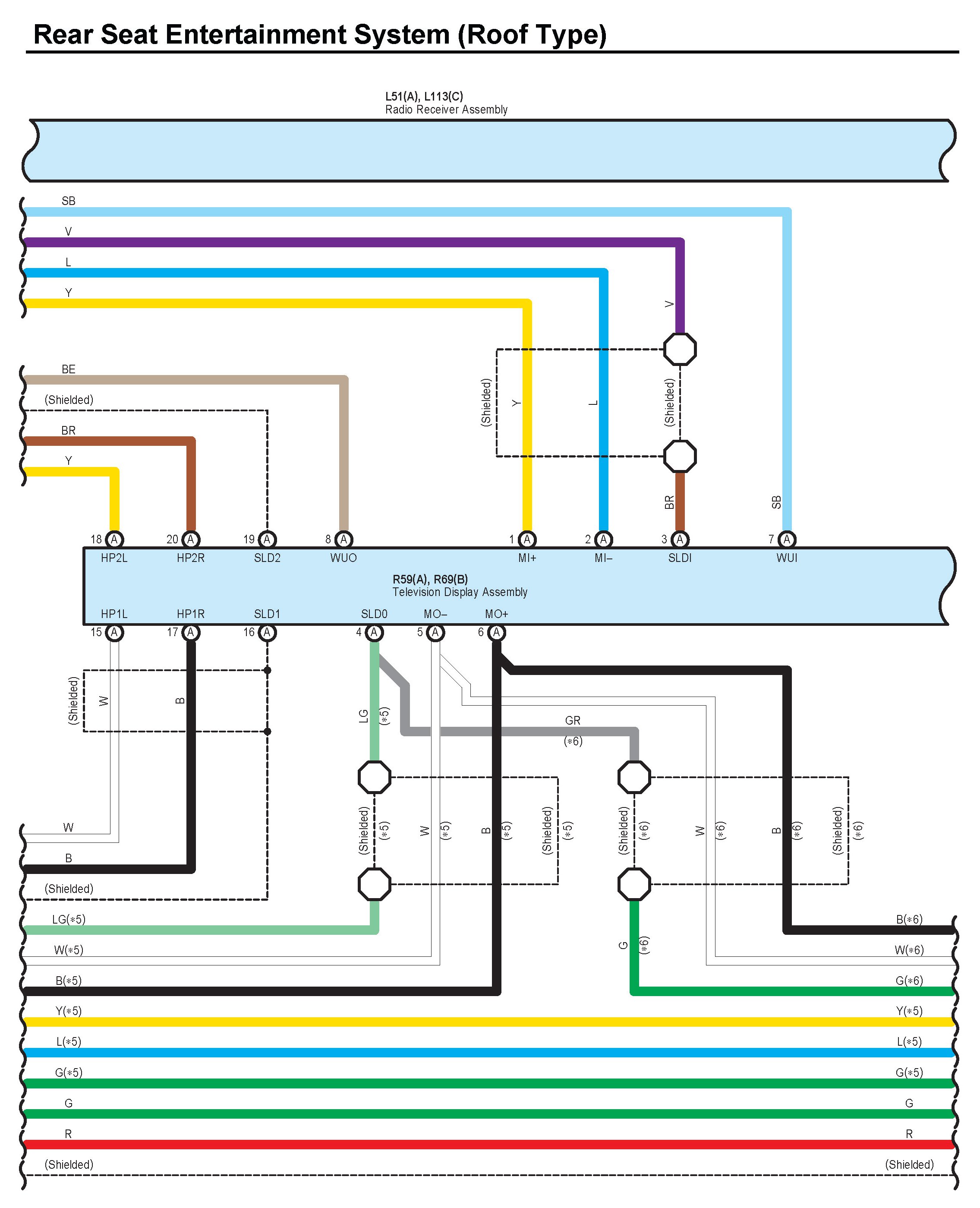

Rear Seat Entertainment System (Roof Type) Part 5:

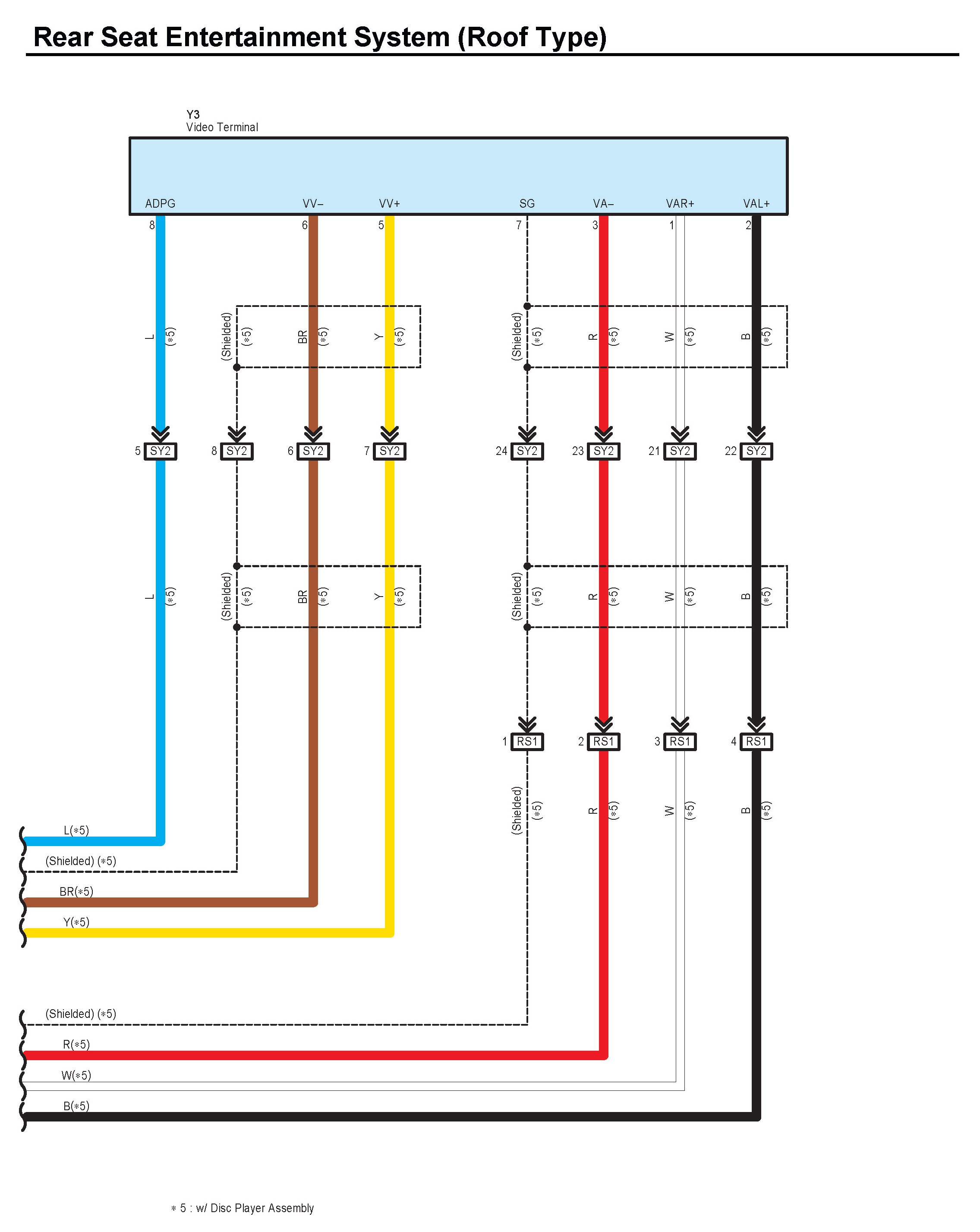

Rear Seat Entertainment System (Roof Type) Part 6:

Rear Seat Entertainment System (Roof Type) Part 7:

Rear Seat Entertainment System (Roof Type) Part 8:

Rear Seat Entertainment System (Roof Type) Part 9:

Rear Seat Entertainment System (Roof Type) Part 10:

Rear Seat Entertainment System (Roof Type) Part 11:

Rear Seat Entertainment System (Roof Type) Part 12:

Rear Seat Entertainment System (Roof Type) Part 13:

Rear Seat Entertainment System (Roof Type) Part 14:

Rear Seat Entertainment System (Roof Type) Part 15:

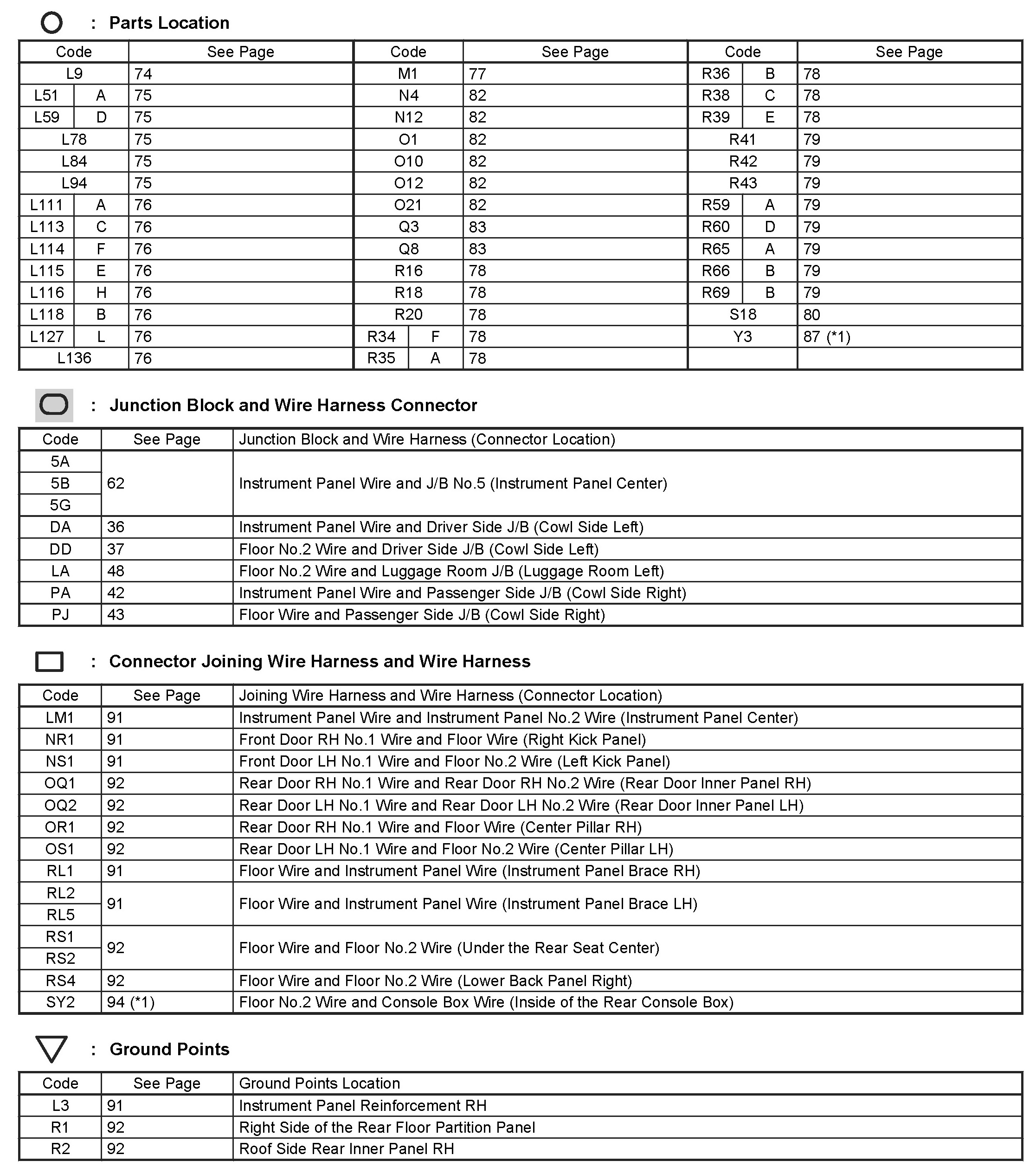

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
