86 - 89 - Position of Parts In Seat
86 - 89 - Position of Parts In Seat

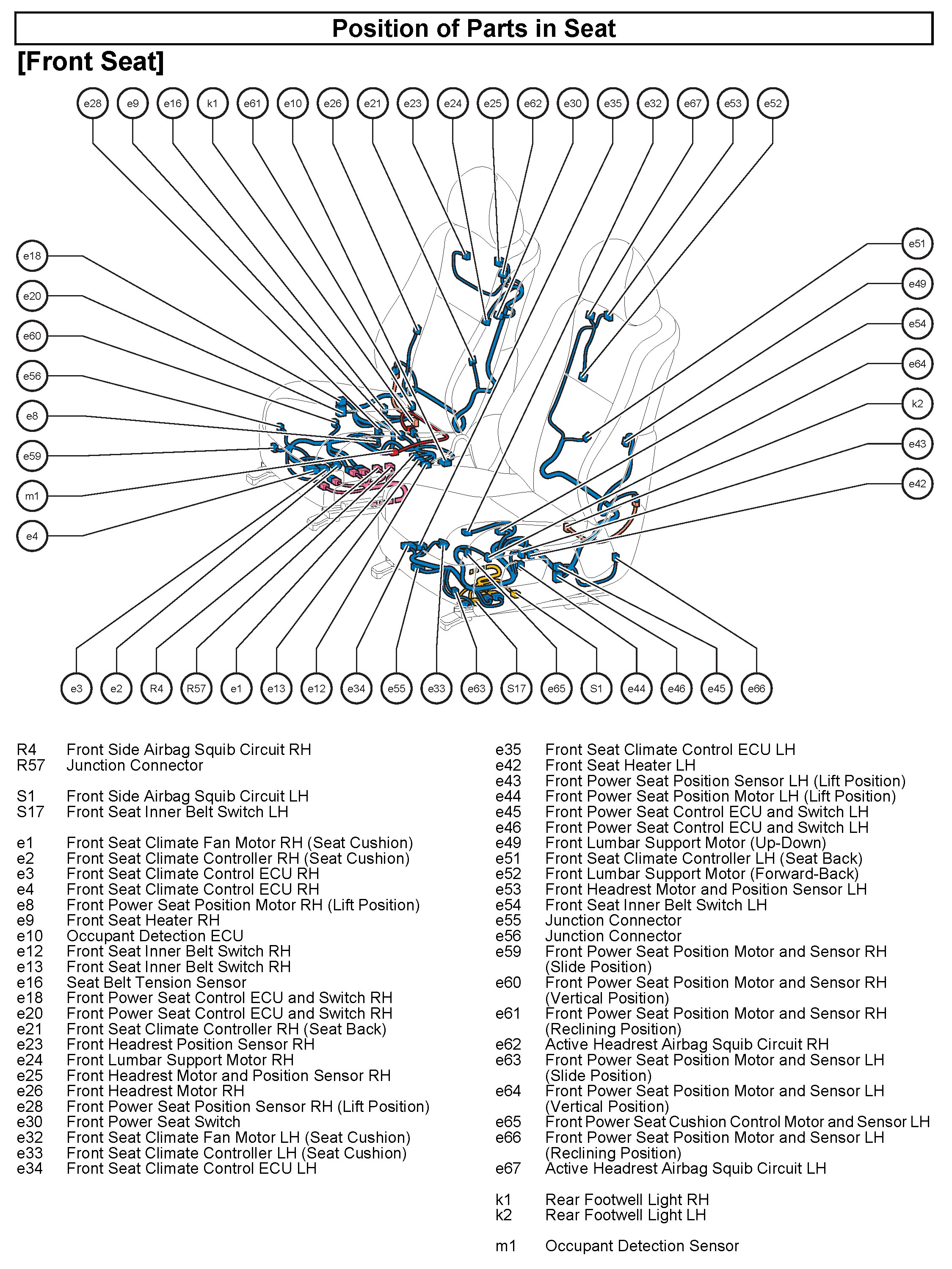

86 - Position of Parts in Seat:

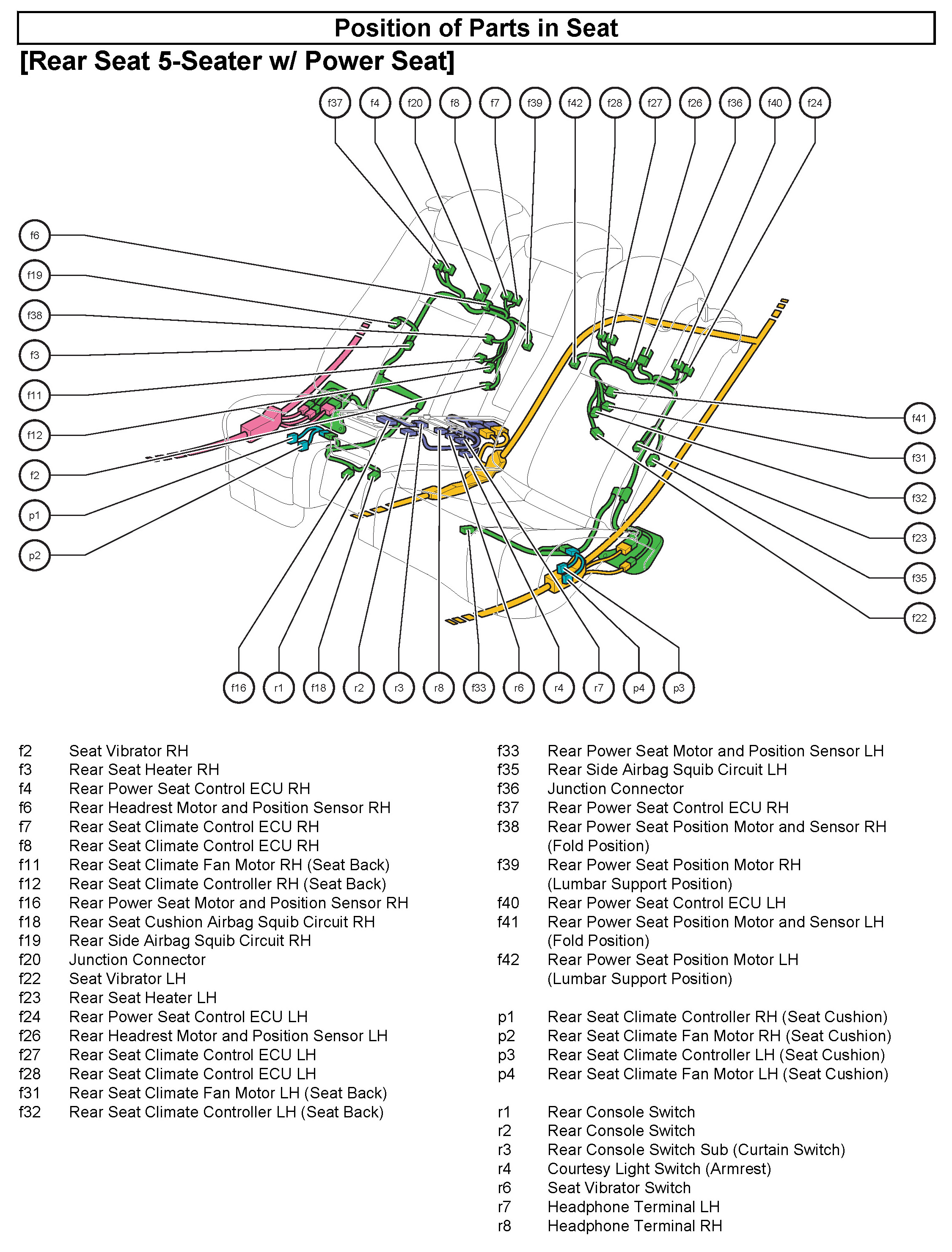

87 - Position of Parts in Seat:

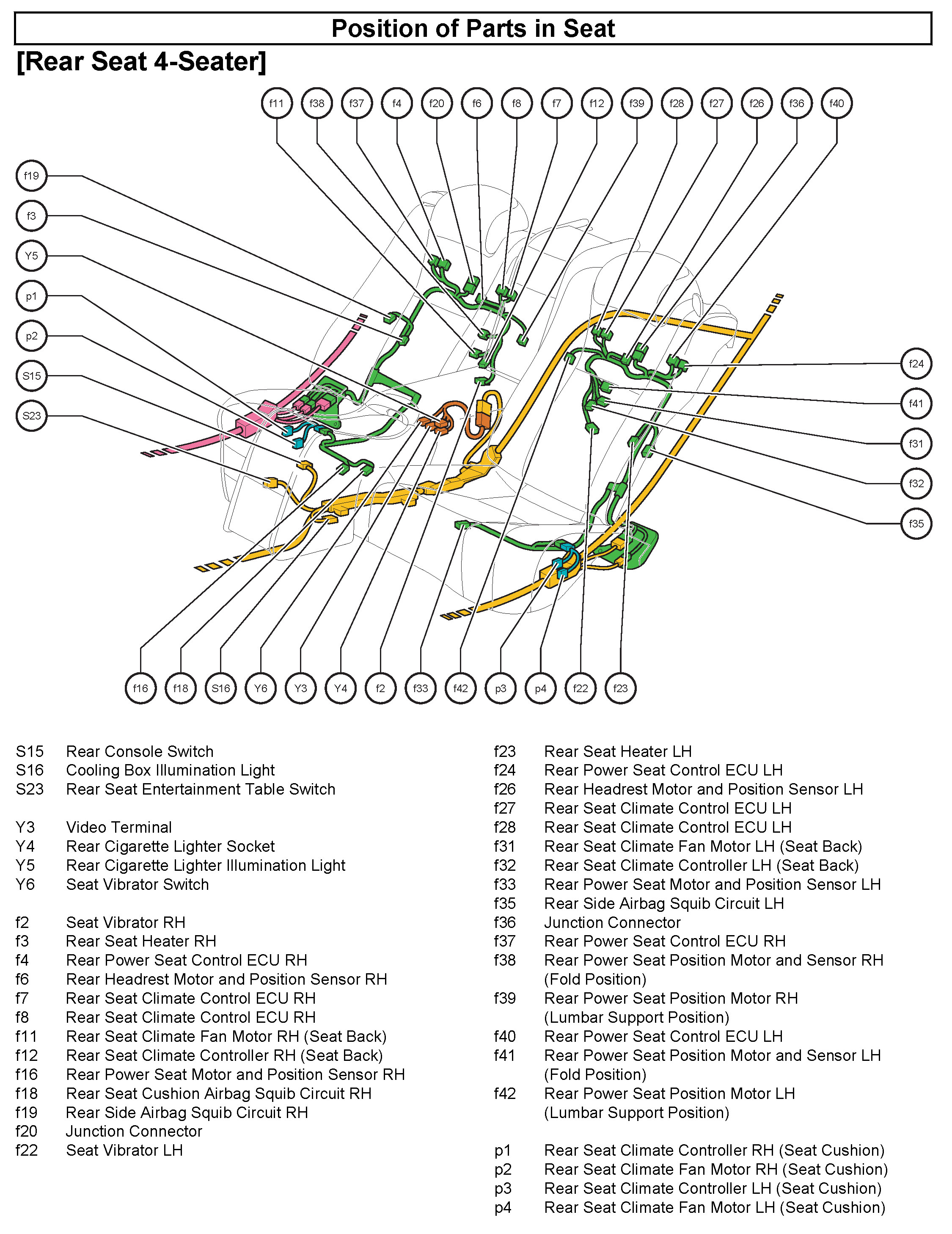

88 - Position of Parts in Seat:

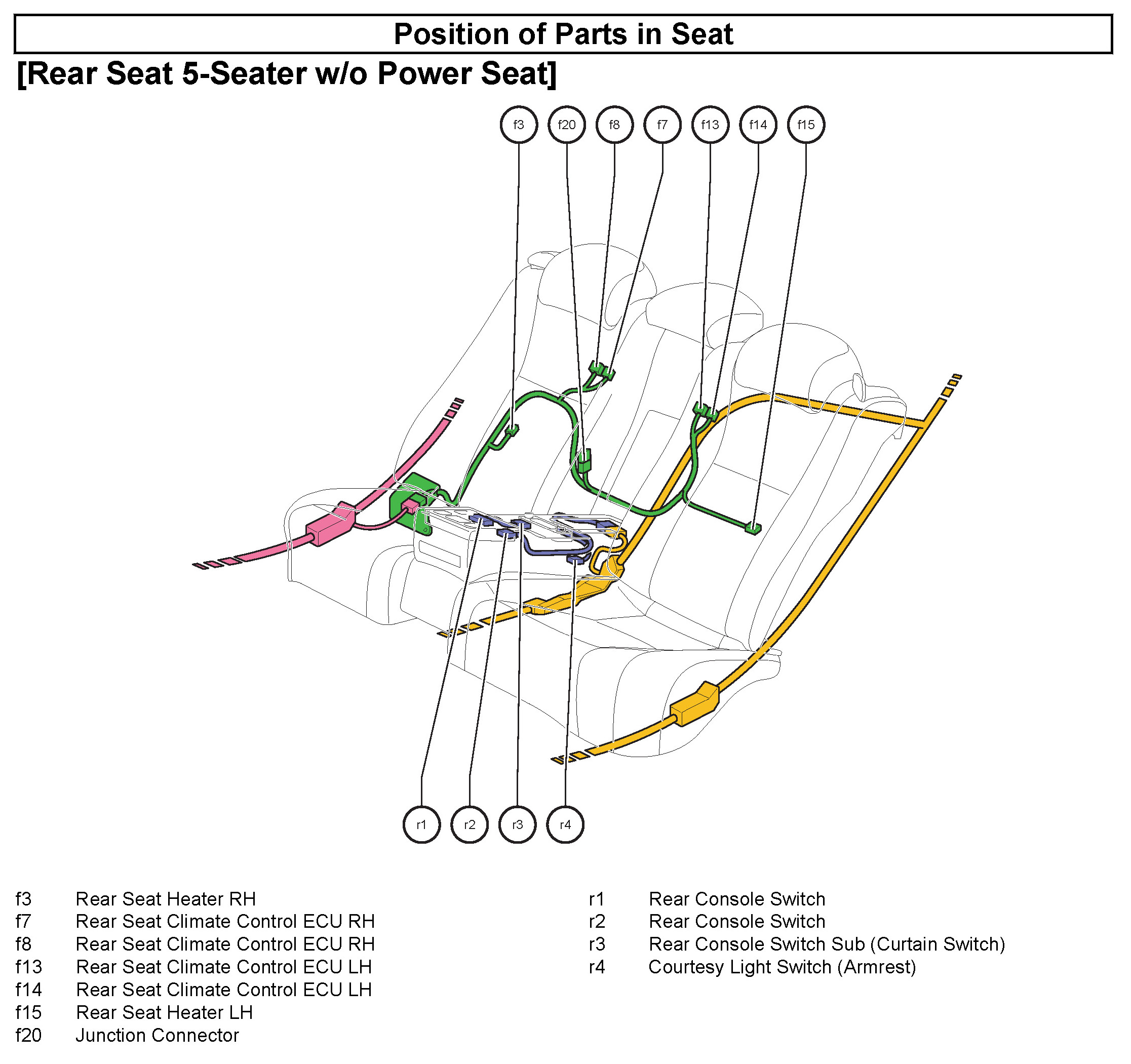

89 - Position of Parts in Seat:
