74 - 77 - Position of Parts In Instrument Panel

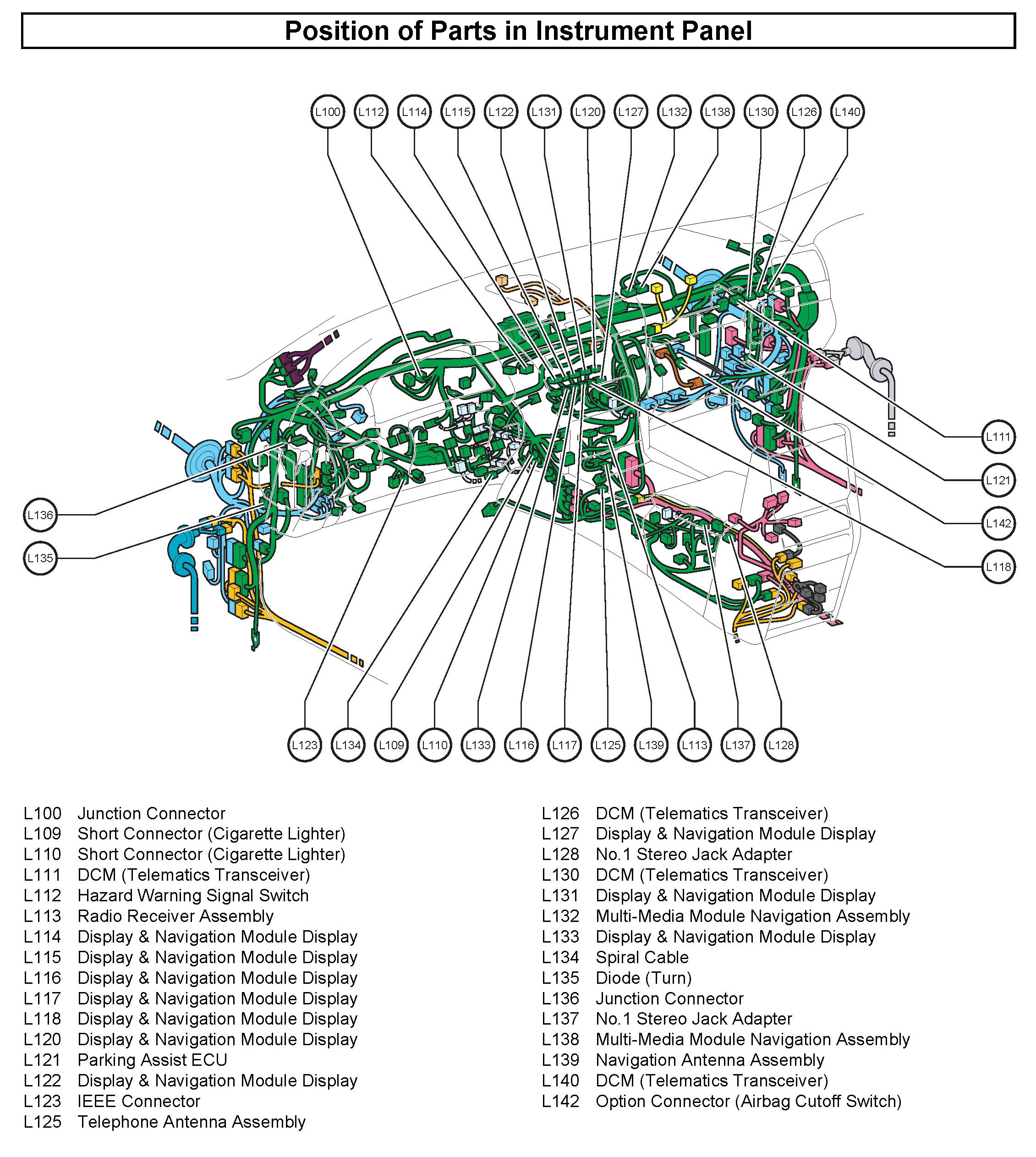

74 - Position of Parts in Instrument Panel:

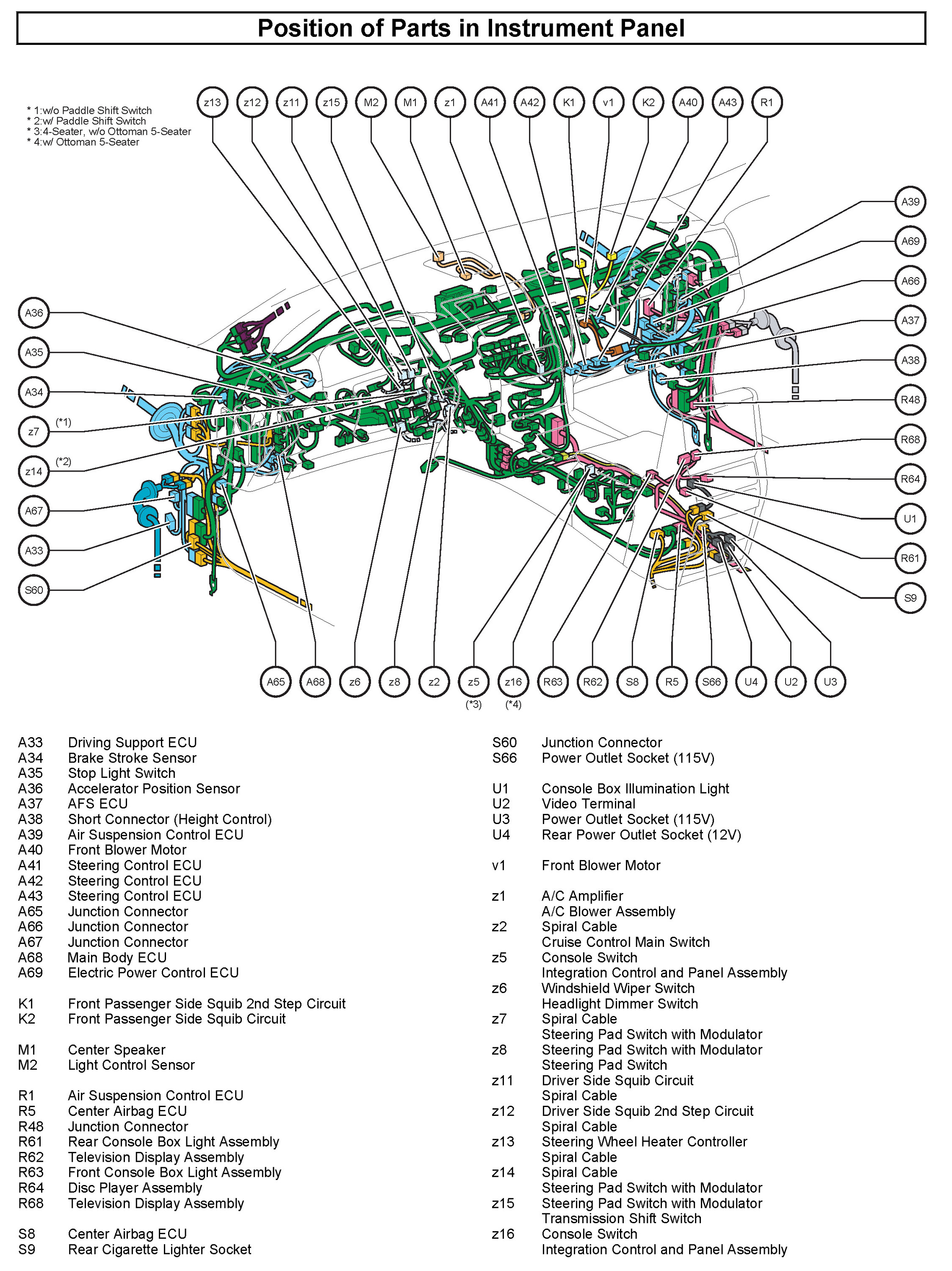

75 - Position of Parts in Instrument Panel:

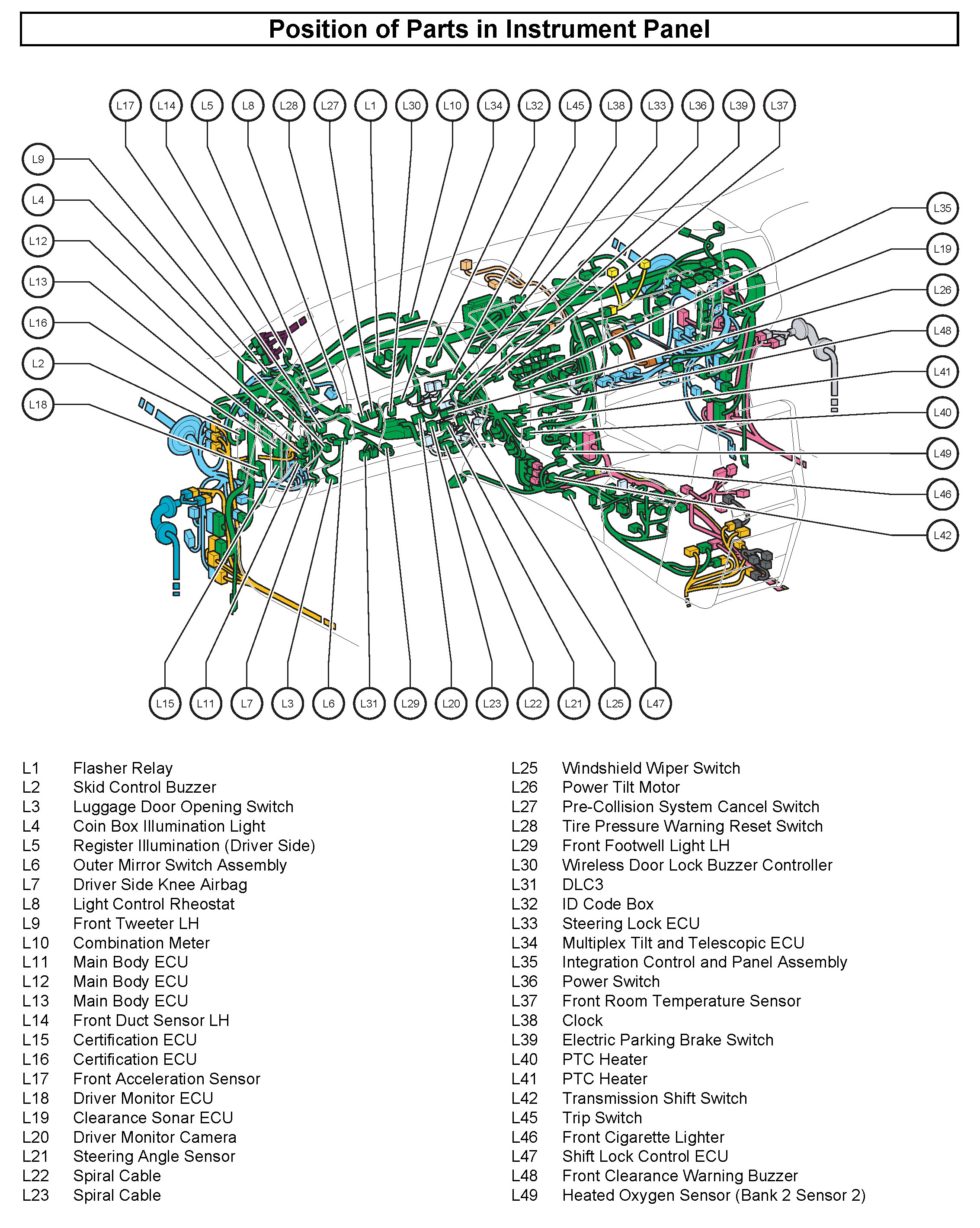

76 - Position of Parts in Instrument Panel:

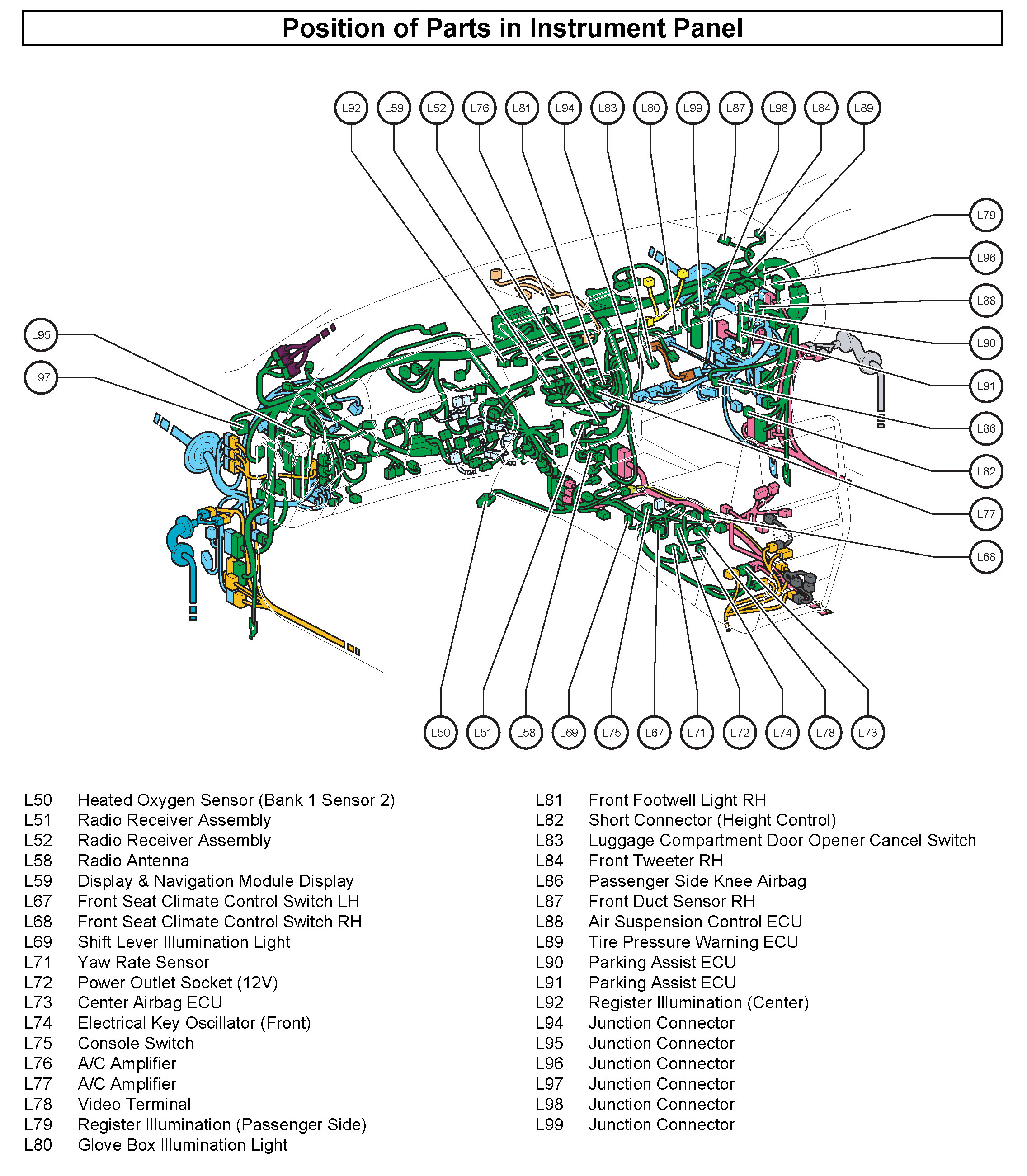

77 - Position of Parts in Instrument Panel:
