Road Test

CRUISE CONTROL: CRUISE CONTROL SYSTEM: ROAD TEST

1. INSPECT SET SWITCH





Push the cruise control switch ON.

(b) Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

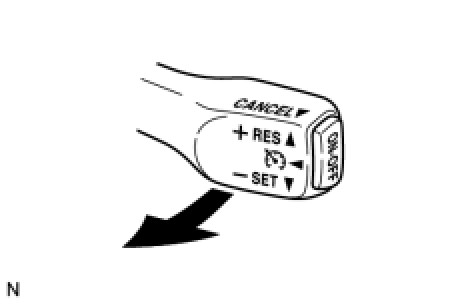

Press the main switch to the -/SET.

(d) After releasing the switch, check that the vehicle cruises at the desired speed.

2. INSPECT "+" SWITCH





Push the cruise control switch button to ON.

(b) Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).





Press the main switch to the -/SET.

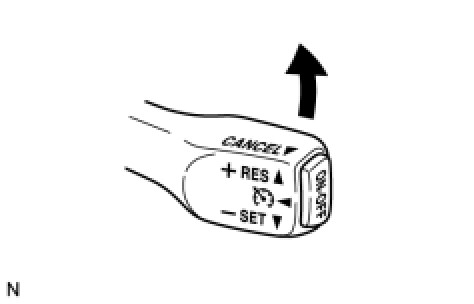

(d) Check that the vehicle speed increases while the main switch is pulled up to +/RES, and that the vehicle cruises at the set speed when the switch is released.





Momentarily press the main switch upward to +/RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1.0 mph) (Tap-up function).

3. INSPECT "-" SWITCH





Push the cruise control switch button to ON.

(b) Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).





Press the main switch to the -/SET.

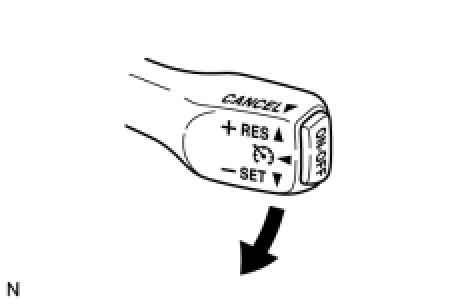

(d) Check that the vehicle speed decreases while the main switch is pushed down to -/SET, and the vehicle cruises at the set speed when the switch is released.

(e) Momentarily press the main switch downward to -/SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1.0 mph) (Tap-down function).

4. INSPECT CANCEL SWITCH





Push the cruise control switch button to ON.

(b) Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).





Press the main switch to the -/SET.

(d) When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.

* Depress the brake pedal

* Pushing the cruise control switch OFF

* Turn the cruise main switch to CANCEL

* Moving the shift lever to any position except D or S (8th, 7th, 6th, 5th or 4th gear)

* w/ Shift Paddle Switch:

The transmission is changed from 4th gear to 3rd, 2nd or 1st gear with the shift paddle switch while the shift lever is in D or M.

5. INSPECT RES (RESUME) SWITCH





Push the cruise control switch button to ON.

(b) Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).





Press the main switch to the -/SET.





When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.

* Depress the brake pedal

* Pushing the cruise control switch OFF

* Moving the shift lever to any position except D or S (8th, 7th, 6th, 5th or 4th gear)

* w/ Shift Paddle Switch:

The transmission is changed from 4th gear to 3rd, 2nd or 1st gear with the shift paddle switch while the shift lever is in D or M.





After the main switch is pulled up to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
