How to Proceed with Troubleshooting

CRUISE CONTROL: CRUISE CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the cruise control system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the CAN Communication System is functioning normally.

Result





B -- Go to CAN COMMUNICATION SYSTEM CAN Communication System
A -- Continue to next step.

4. CHECK INDICATOR LIGHT

NEXT -- Continue to next step.

5. CHECK FOR DTC*

(a) Check for DTCs DTC Check / Clear.

(b) Clear the DTCs DTC Check / Clear.

(c) Recheck for DTCs DTC Check / Clear.

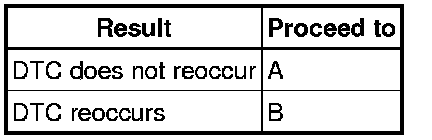

Result





B -- Go to step 8
A -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE

Result





B -- Go to step 8
A -- Continue to next step.

7. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECM Terminals of ECM.

(b) Data List / Active Test Data List / Active List.

NEXT -- Continue to next step.

8. REPAIR OR REPLACE

NEXT -- Continue to next step.

9. CONFIRMATION TEST

NEXT -- END
