Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Brakes and Traction Control >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations

Electronic Brake Control Module: Locations

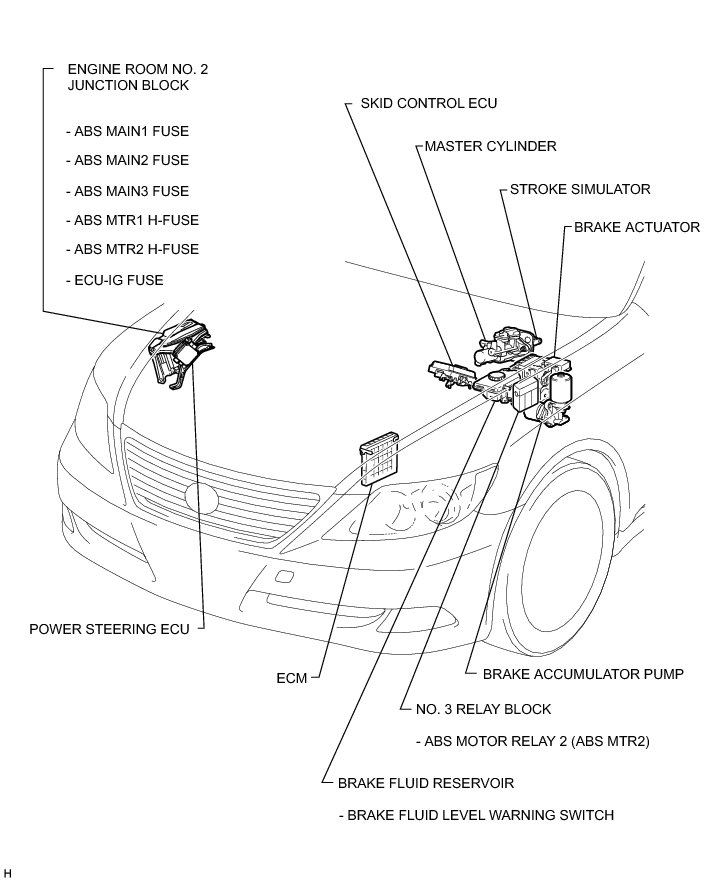

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: PARTS LOCATION





Engine Compartment:
