Reassembly

BRAKE: FRONT BRAKE (for 6-Pot Caliper): REASSEMBLY

1. TEMPORARILY INSTALL FRONT DISC BRAKE BLEEDER PLUG

(a) Temporarily install the bleeder plug to the disc brake cylinder assembly.

HINT
The bleeder plug will tightened to a torque specification in the Bleed Air From Front Brake System procedure.

2. INSTALL CYLINDER BOOT

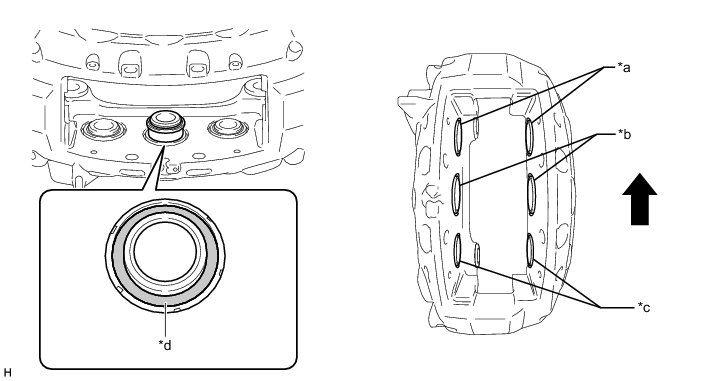

(a) Place a new cylinder boot onto the disc brake piston as shown in the illustration.

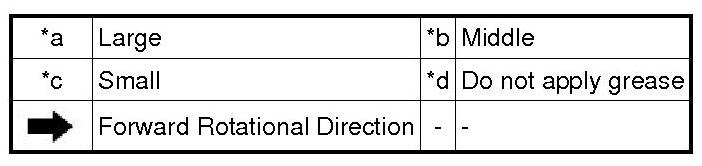

Text in Illustration





NOTICE:
* Because there are 3 cylinder sizes, be sure to use the correct size boot in the appropriate position as shown in the illustration.
* Do not damage the cylinder boot.
* Do not apply any grease to any part where the cylinder boot touches the rear disc brake cylinder assembly as shown in the illustration.

(b) Push in the disc brake piston and install the cylinder boot to the front disc brake cylinder assembly.





Text in Illustration





HINT
Use the same procedure for all cylinder boots.

NOTICE:
* Do not push the disc brake piston forcibly into the front disc brake cylinder assembly.
* Securely install the cylinder boot to the groove of the front disc brake cylinder assembly.
