PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED
1.

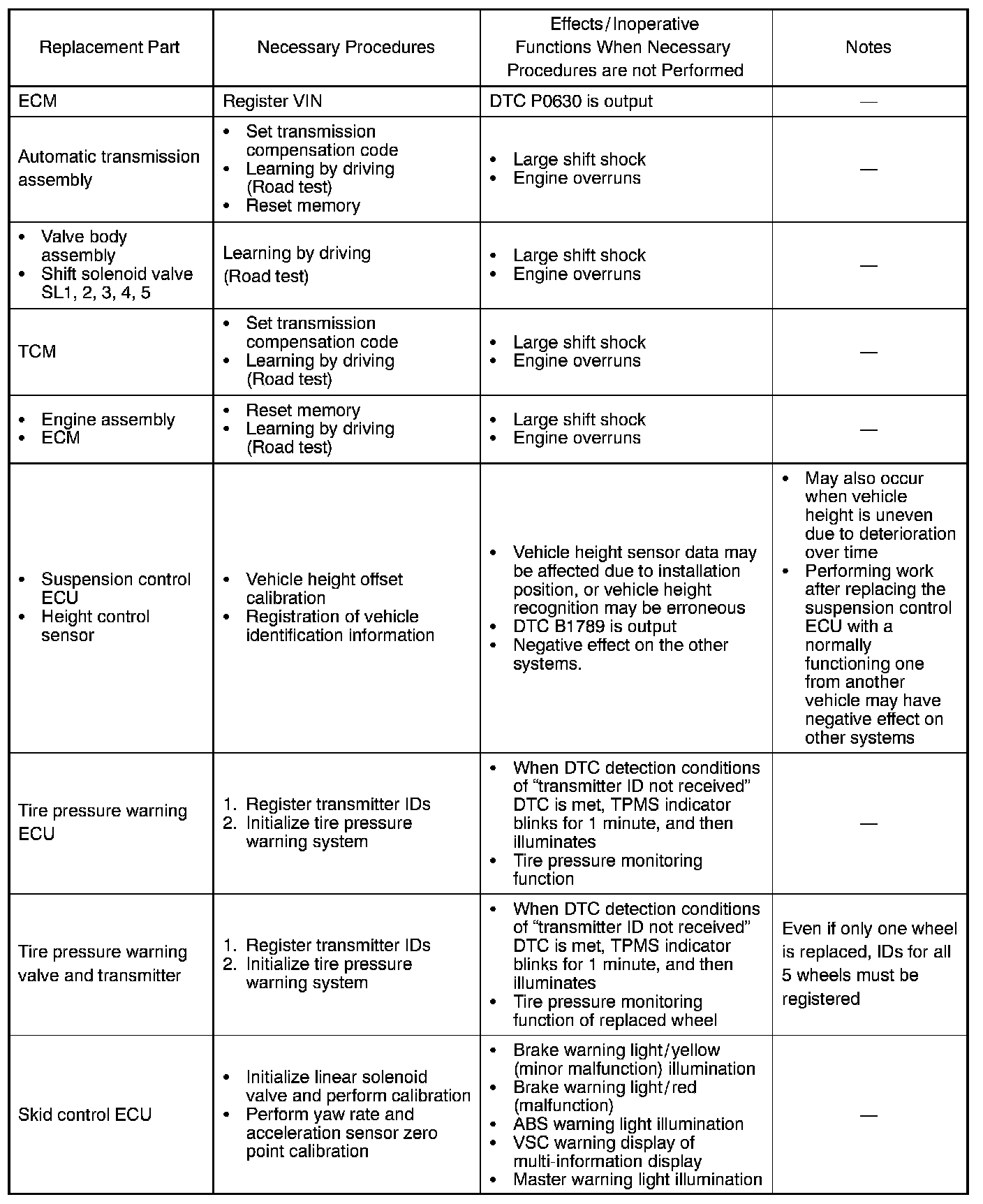

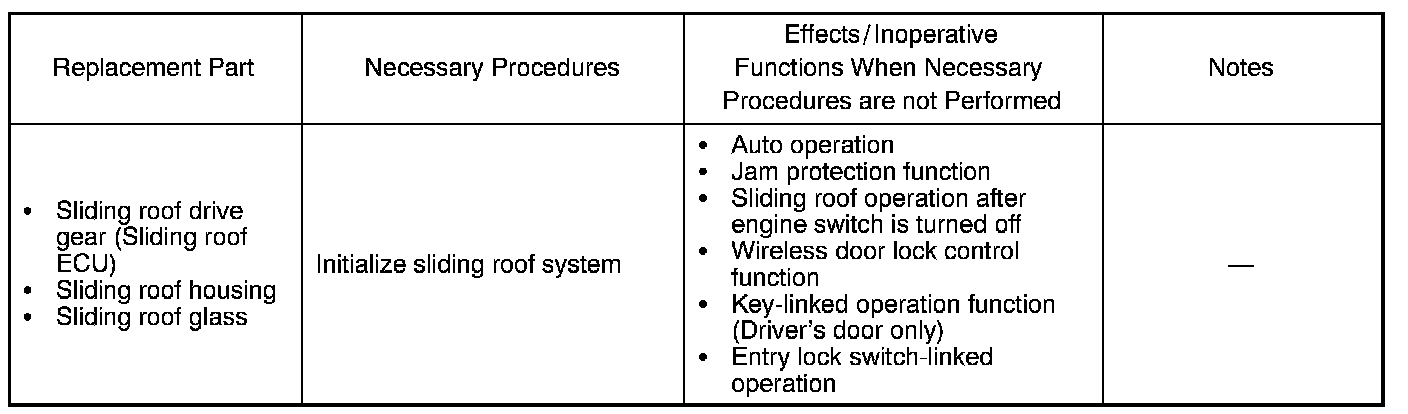

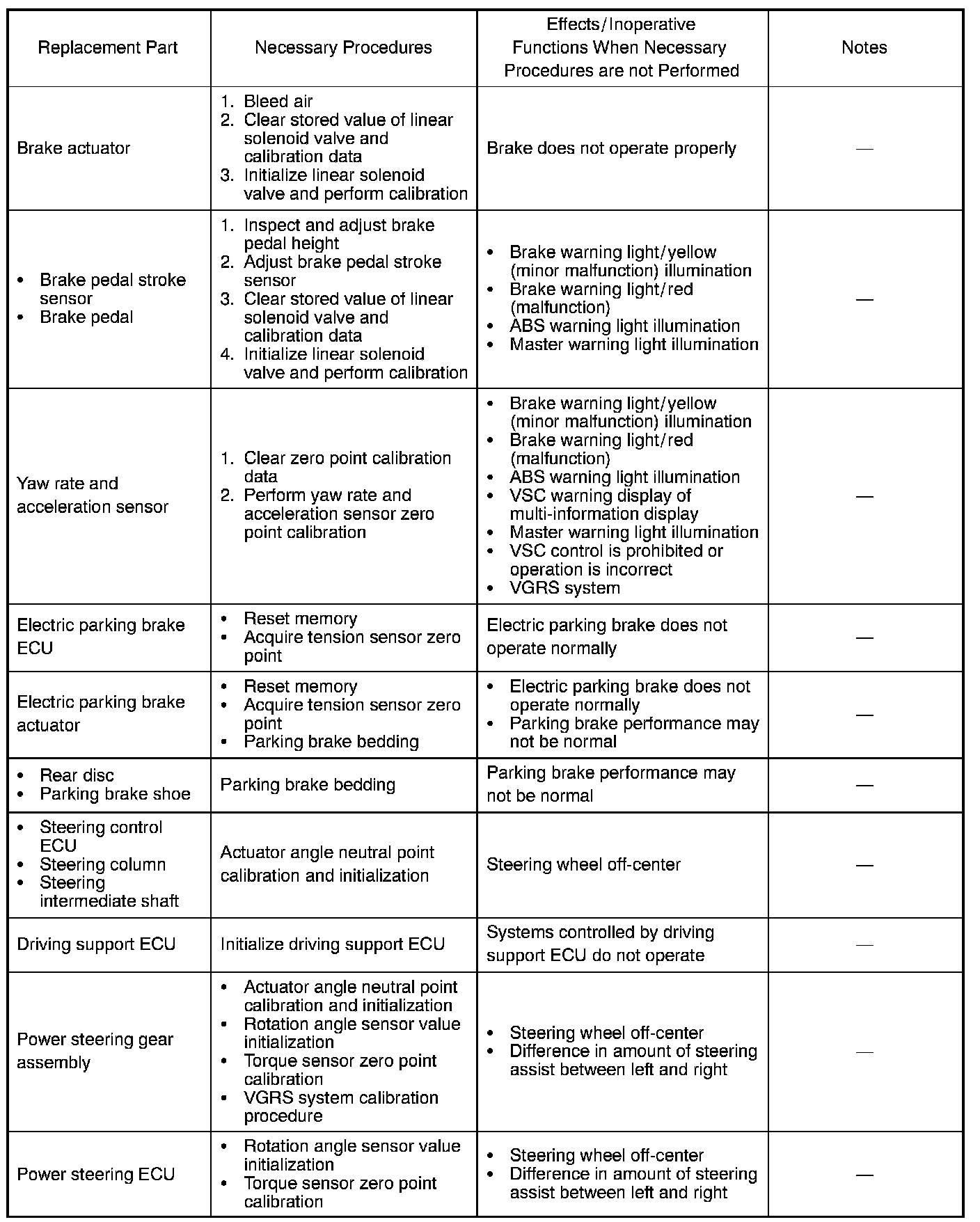

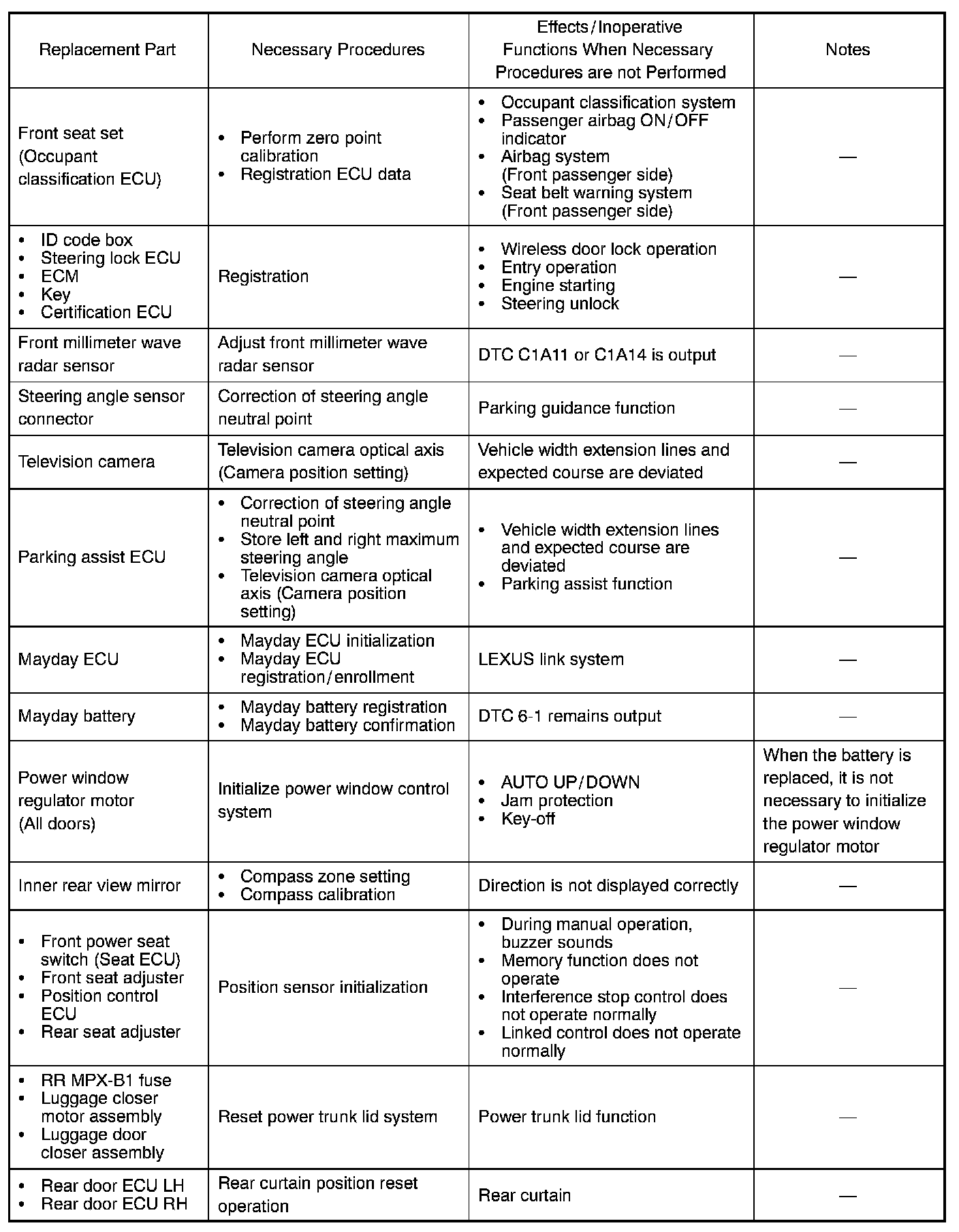

THE WORK LIST
a.
Each inspection procedure as follows.
