Installation

ENGINE HOOD / DOOR: LUGGAGE DOOR OPENING SWITCH: INSTALLATION

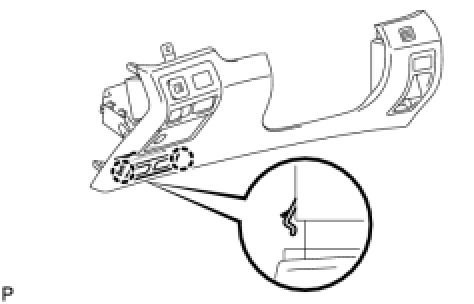

1. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY

(a) Attach the 2 claws and door opening switch.





2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
