Installation

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH: INSTALLATION

1. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY

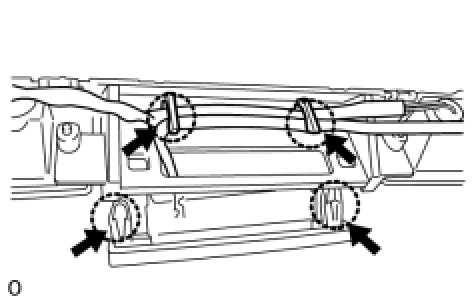

(a) Attach the 4 claws to install the opening switch.

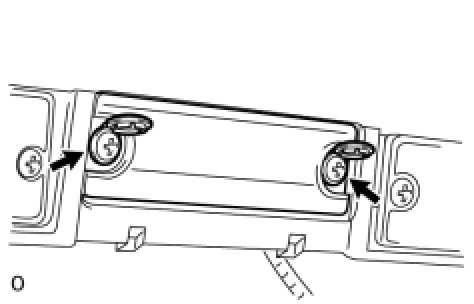

(b) Install the 2 screws and close the screw caps.





2. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY Installation

3. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

4. INSTALL REAR LIGHT ASSEMBLY RH Installation

5. INSTALL REAR LIGHT ASSEMBLY LH Installation

6. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor) Installation

7. INSTALL BACK DOOR TRIM COVER Installation

8. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH Installation

9. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH Installation

10. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH Installation

11. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH Installation

12. INSTALL NO. 2 COURTESY LIGHT ASSEMBLY Installation

13. INSTALL SWITCH BEZEL (w/ Power Trunk Lid System) Installation

14. INSTALL DOOR INSIDE HANDLE BEZEL Installation

15. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP Installation
