Removal

SEAT: SEAT MEMORY SWITCH (for Front Side): REMOVAL

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.

1. REMOVE DOOR INSIDE HANDLE BEZEL Disassembly

2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY Disassembly

3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH PANEL (for Passenger Side) Removal

4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

5. REMOVE SEAT MEMORY SWITCH

(a) Disconnect the connector.

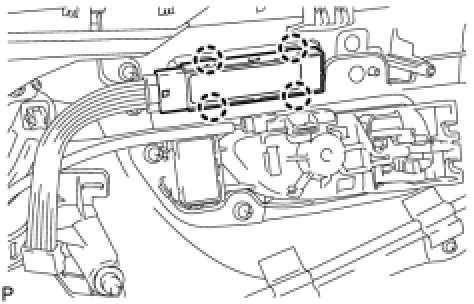

(b) Detach the 4 claws and remove the seat memory switch.
