Operation Check

SEAT: REAR POWER SEAT CONTROL SYSTEM: OPERATION CHECK

1. CHECK REAR POWER SEAT FUNCTION

(a) Check the basic functions.

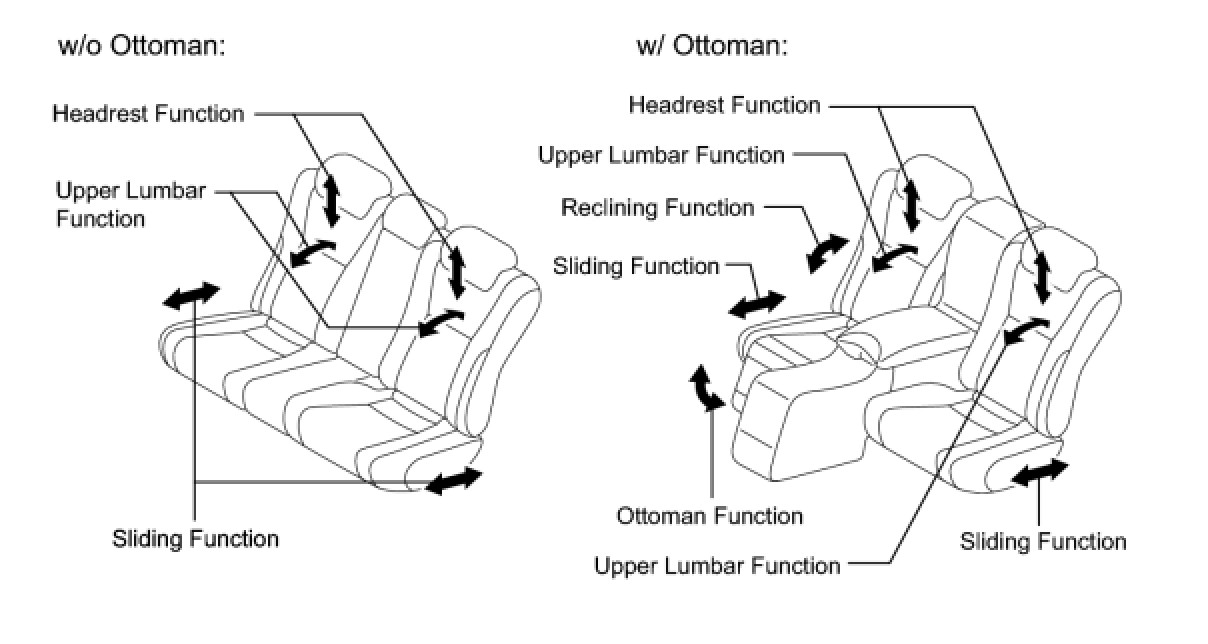

(1) Operate the power seat switches and check to make sure each seat function works:

* Sliding

* Headrest

* Upper lumbar

* Reclining (w/ Ottoman)

* Ottoman (w/ Ottoman)

NOTICE:
Perform the 4 procedures below for each power seat function.

(2) Choose a power seat function. Operate the power seat switch and move the seat to the maximum in one direction. Keep the seat in that position for approximately 60 seconds.

(3) Operate the power seat switch again and continue to try to move the seat in the same direction as in the previous step. Measure the amount of time elapsed before the electrical current is automatically cut. Check if electrical current has shut off by making sure the sound of the motor has stopped.

Standard:





(4) After the current has stopped, release the power seat switch and wait for approximately 60 seconds.

(5) Operate the same power seat switch and move the seat to the opposite extreme. Check that the motor operates.

2. CHECK POWER SEAT MANUAL OPERATION





(a) Operate one of the power seat switches and hold it. Check that the power seat moves according to the switch while the switch is held.

(b) Perform the same operation as in the previous step for each of the remaining seat switches.

(c) Check the door open linked return operation.

(1) Turn the engine switch on (IG) and move the shift lever to the P position.

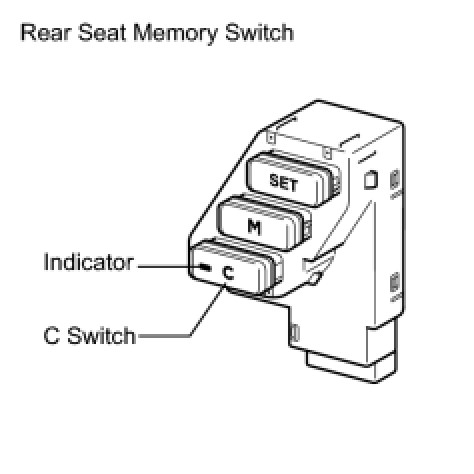

(2) Press the C switch and check that the indicator on the C switch is illuminated. Open the rear door. Check that the seat adjacent to the door does not move.

(3) Press the C switch and check that the indicator on the C switch turns off. Open the rear door. Check that the seat adjacent to the door operates as follows: the slide motor and upper lumbar motor are moved to the rearmost position, the reclining motor* is moved to the foremost position, and the ottoman motor* is moved to the lowermost position.

HINT
*: w/ Ottoman

3. CHECK MEMORY AND CANCEL FUNCTION





(a) Turn the ignition switch to the ON position and move the shift lever into the P position.

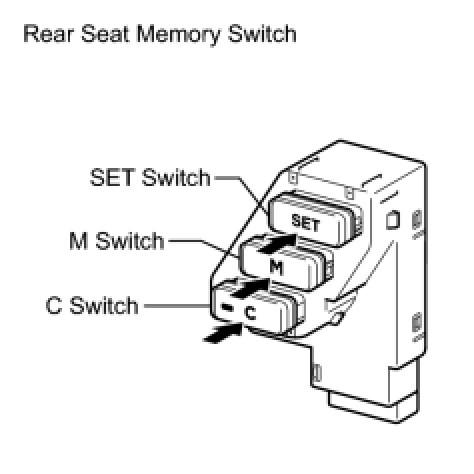

(b) Check the M switch.

(1) Using the seat switches, fully slide the seat forward, fully raise the headrest, and fully move the seat upper lumbar forward.

(2) Press and hold down the SET switch. Check that the buzzer sound for 0.5 seconds, signaling that the seat position has been recorded.

(3) Change the position of the seat and then press the M switch. Check that the buzzer sounds for 0.1 seconds and the seat automatically moves to the position that was memorized.

(c) Check the C switch.

(1) Press the M switch. While the seat is moving, press the C switch. Check that the seat stops immediately.

HINT
The seat also stops when the SET or M switch is pressed.
