Rear Seatback Heater (for Power Seat)

SEAT: REAR SEATBACK HEATER (for Power Seat): INSPECTION

1. INSPECT REAR SEATBACK COVER SUB-ASSEMBLY LH





(a) Check the seatback heater.

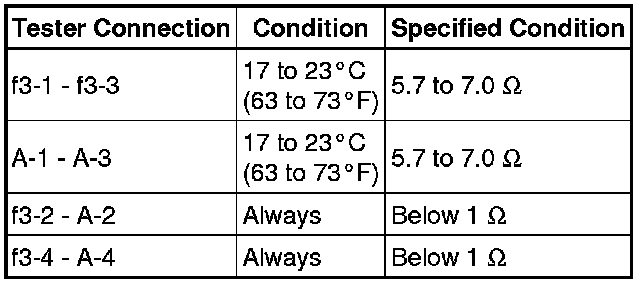

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the rear seatback cover LH.

2. INSPECT REAR SEATBACK COVER ASSEMBLY RH





(a) Check the seatback heater.

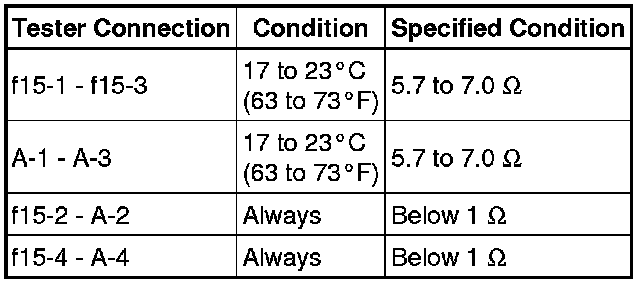

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the rear seatback cover RH.
