Front Seatback Heater

SEAT: FRONT SEATBACK HEATER: INSPECTION

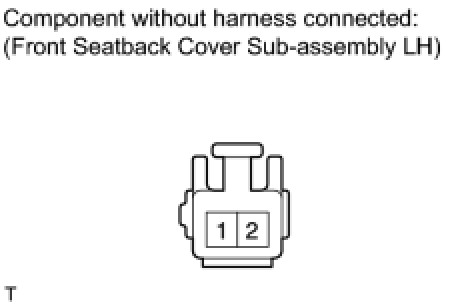

1. INSPECT FRONT SEATBACK COVER SUB-ASSEMBLY LH





(a) Check the seatback heater.

(1) Measure the resistance according to the value(s) in the table below.

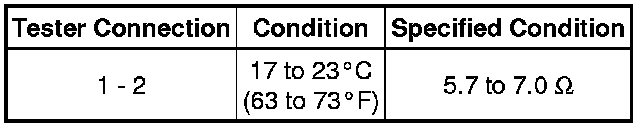

Standard resistance:





If the result is not as specified, replace the seatback cover.

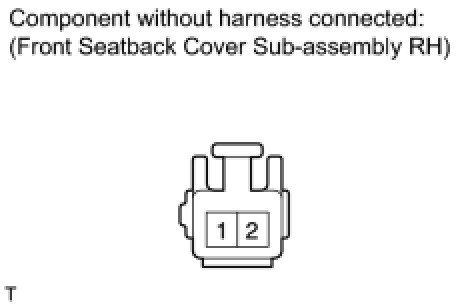

2. INSPECT FRONT SEATBACK COVER SUB-ASSEMBLY RH





(a) Check the seatback heater.

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the seatback cover.
