Lumbar Support Adjuster Assembly (for Power Seat)

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Power Seat): INSPECTION

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

(a) Check the operation of the lumbar support adjuster.

(1) Apply battery voltage to the lumbar support adjuster.





(2) Check that the lumbar support adjuster moves smoothly.

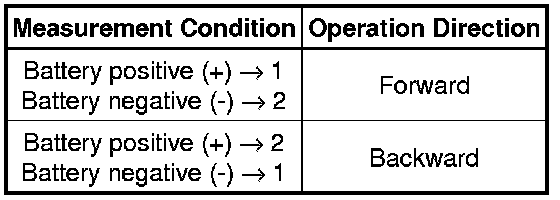

OK:





If the result is not as specified, replace the rear seatback assembly LH.

2. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY RH

(a) Check the operation of the lumbar support adjuster.

(1) Apply battery voltage to the lumbar support adjuster.





(2) Check that the lumbar support adjuster moves smoothly.

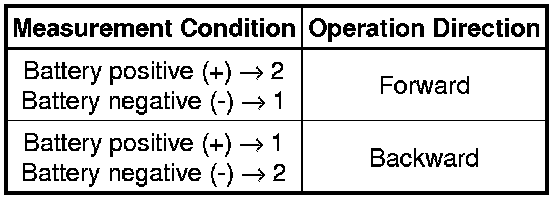

OK:





If the result is not as specified, replace the rear seatback assembly RH.
