Lumbar Support Adjuster Assembly (for Front Side)

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Front Side): INSPECTION

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

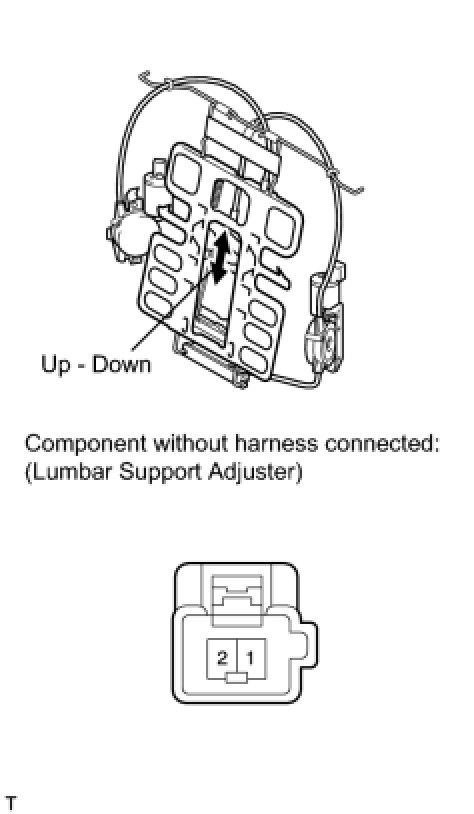

(a) Check operation of the lumbar support adjuster (Up - Down).

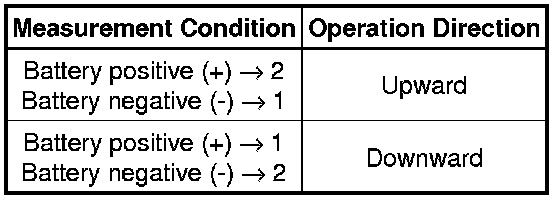

(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

OK:





If the result is not as specified, replace the lumbar support adjuster.

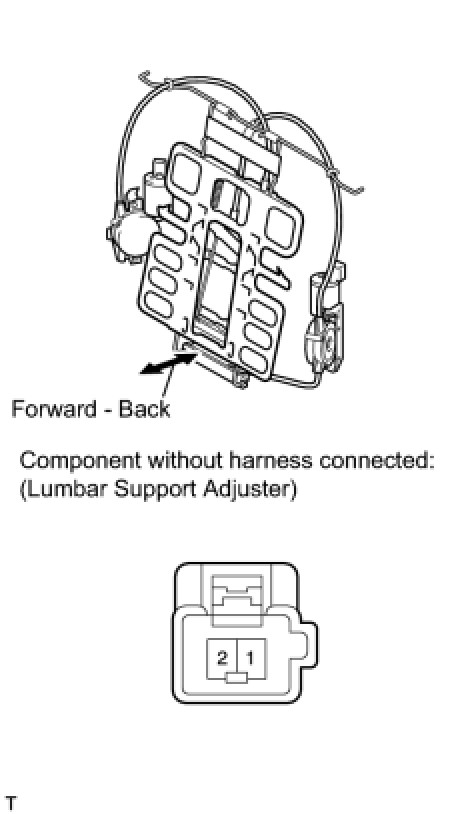

(b) Check operation of the lumbar support adjuster (Forward - Back).

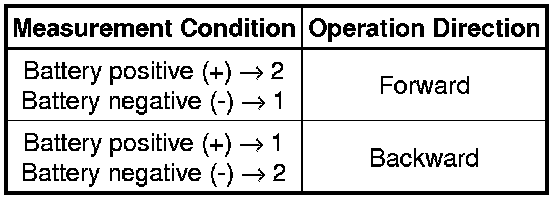

(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

OK:





If the result is not as specified, replace the lumbar support adjuster.

2. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY RH

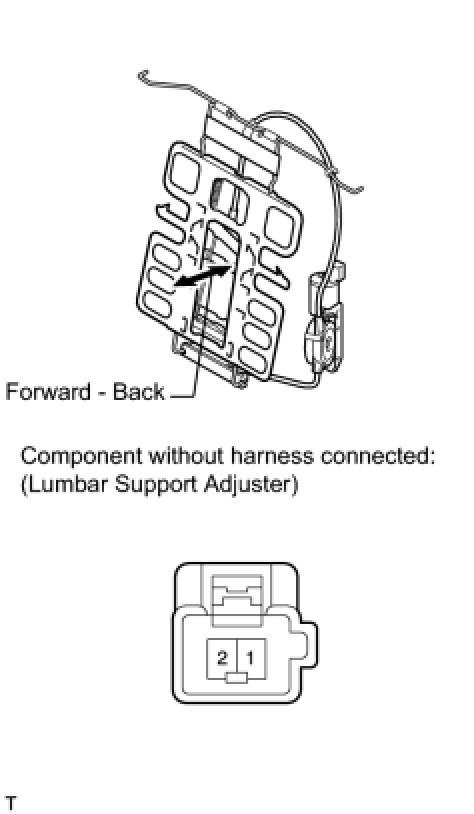

(a) Check operation of the lumbar support adjuster (Forward - Back).

(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

OK:





If the result is not as specified, replace the lumbar support adjuster.
