Front Power Seat Motor Assembly

SEAT: FRONT POWER SEAT MOTOR ASSEMBLY: INSPECTION

1. INSPECT FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY





(a) Check the operation of the headrest adjuster.

(1) Apply battery voltage to the headrest adjuster.

OK:





If the result not as specified, replace the headrest adjuster.

2. INSPECT POWER SEAT MOTOR ASSEMBLY (w/ Retractable Headrest)

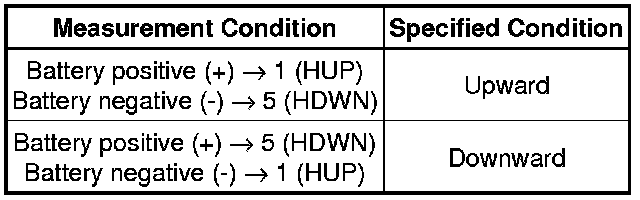

(a) Check the operation of the headrest motor.

(1) Apply battery voltage to the headrest motor.

OK:





If the result not as specified, replace the headrest motor.

3. INSPECT FRONT SEAT ADJUSTER ASSEMBLY LH

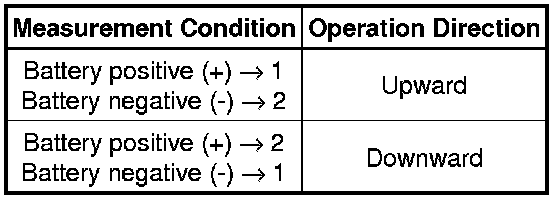

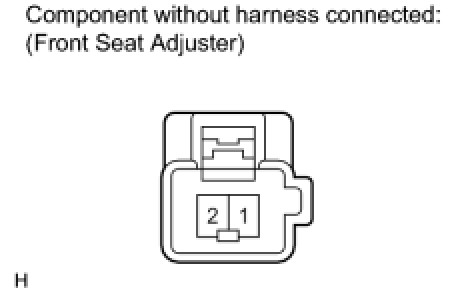

(a) Check operation of the front seat adjuster (slide motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

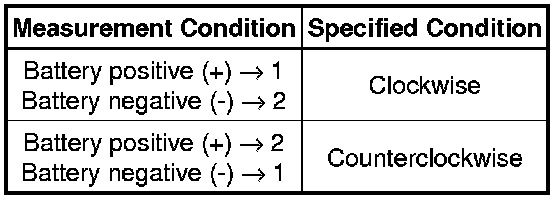

(b) Check the operation of the front seat adjuster (front vertical motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

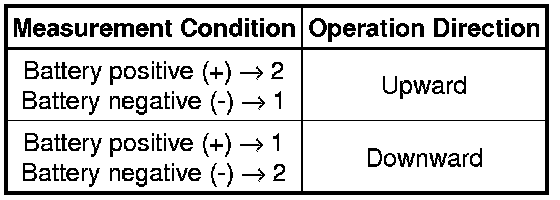

(c) Check the operation of the seat frame (lifter motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

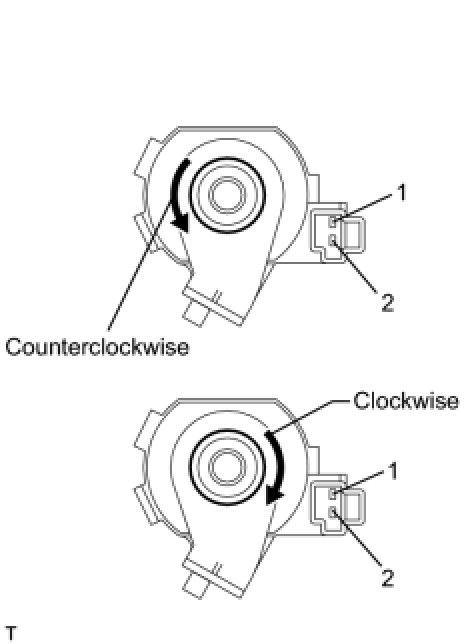

(d) Check the operation of the front seat adjuster (reclining motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

(e) Check the operation of the front seat adjuster (cushion motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

4. INSPECT FRONT SEAT ADJUSTER ASSEMBLY RH

(a) Check the operation of the front seat adjuster (slide motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

(b) Check the operation of the front seat adjuster (front vertical motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

(c) Check the operation of the front seat adjuster (lifter motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.

(d) Check the operation of the front seat adjuster (reclining motor).

(1) Apply battery voltage to the power seat motor.





OK:





If the result is not as specified, replace the front seat adjuster.
