Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Service and Repair >> Lumbar Support Adjuster Assembly (for Power Seat) >> Components

Components

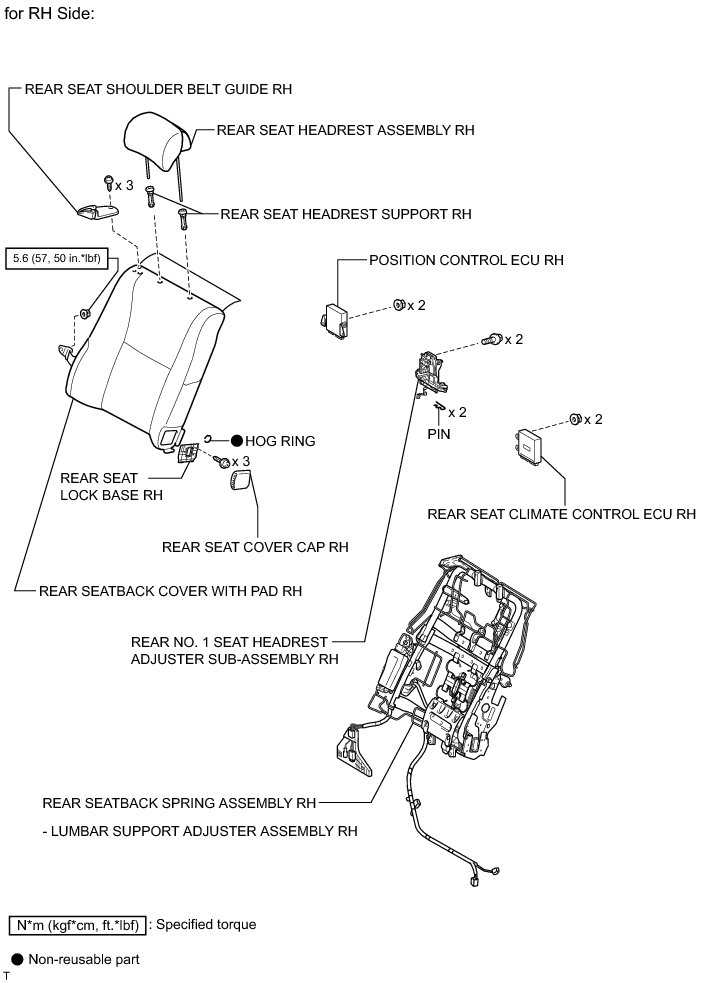

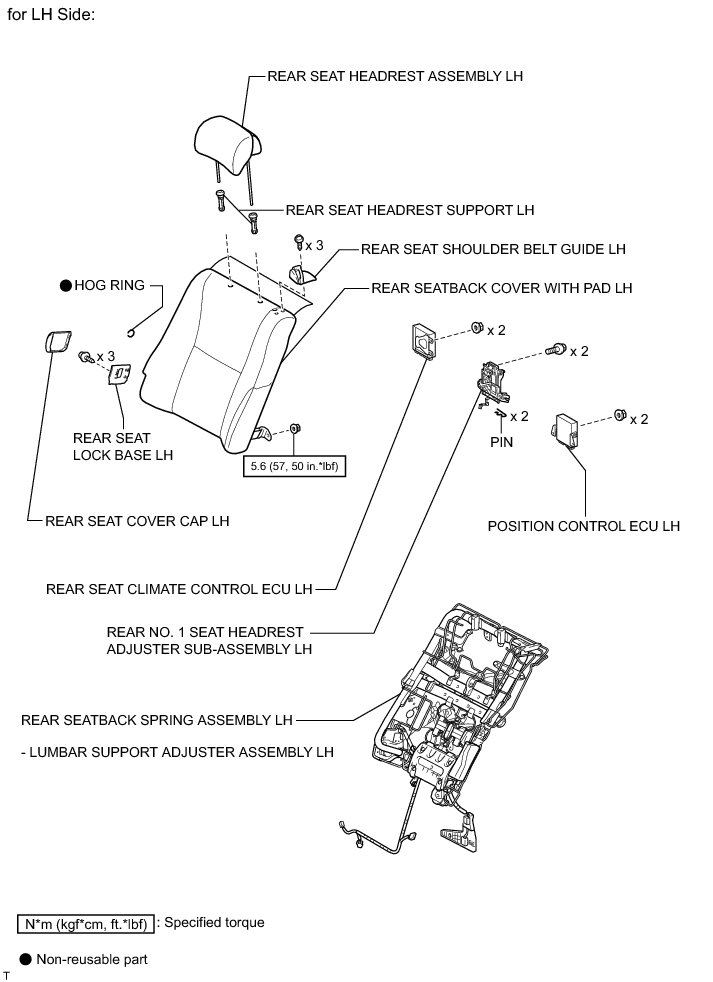

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Power Seat): COMPONENTS
