Seat Memory Switch (for Rear Side)

SEAT: SEAT MEMORY SWITCH (for Rear Side): INSPECTION

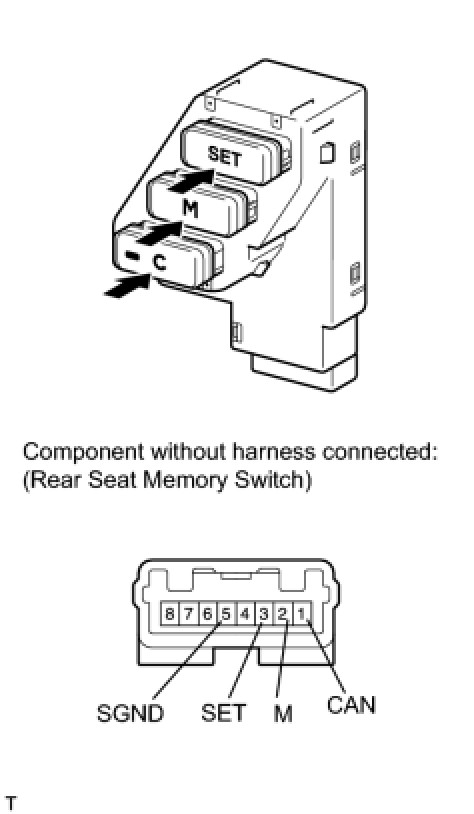

1. INSPECT REAR SEAT MEMORY SWITCH LH

(a) Measure the resistance according to the value(s) in the table below.

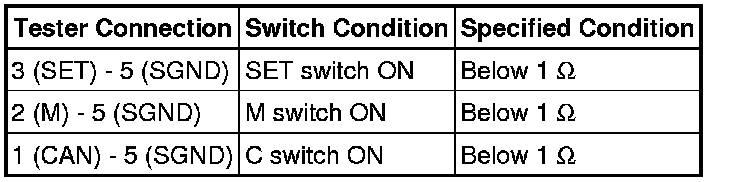

Standard resistance:





If the result is not as specified, replace the switch.

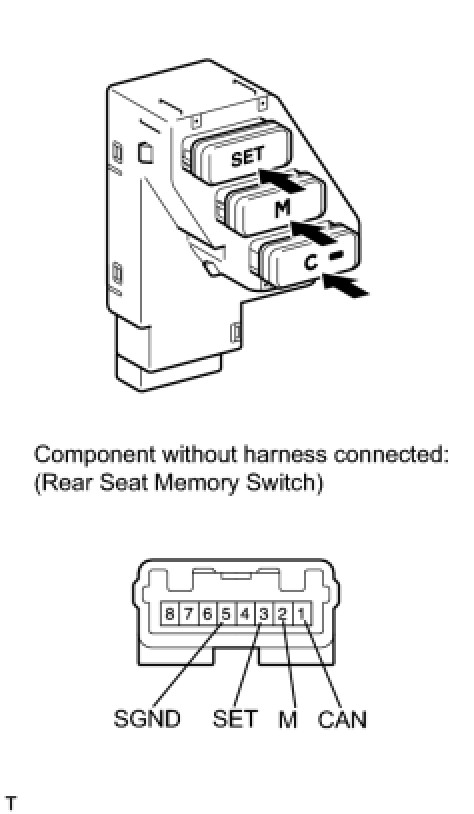

2. INSPECT REAR SEAT MEMORY SWITCH RH

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the switch.
