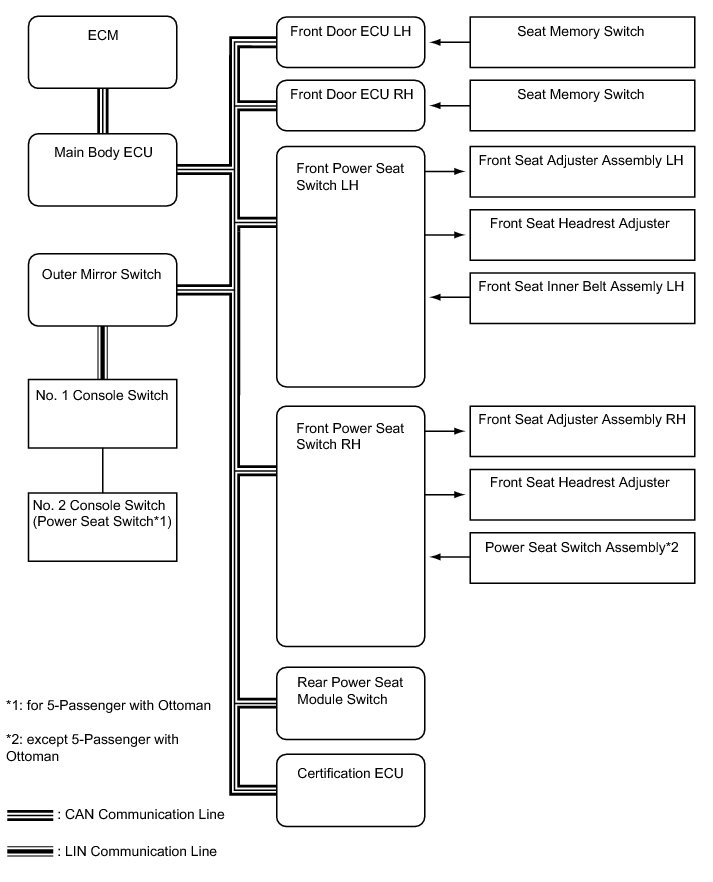

System Diagram





SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM

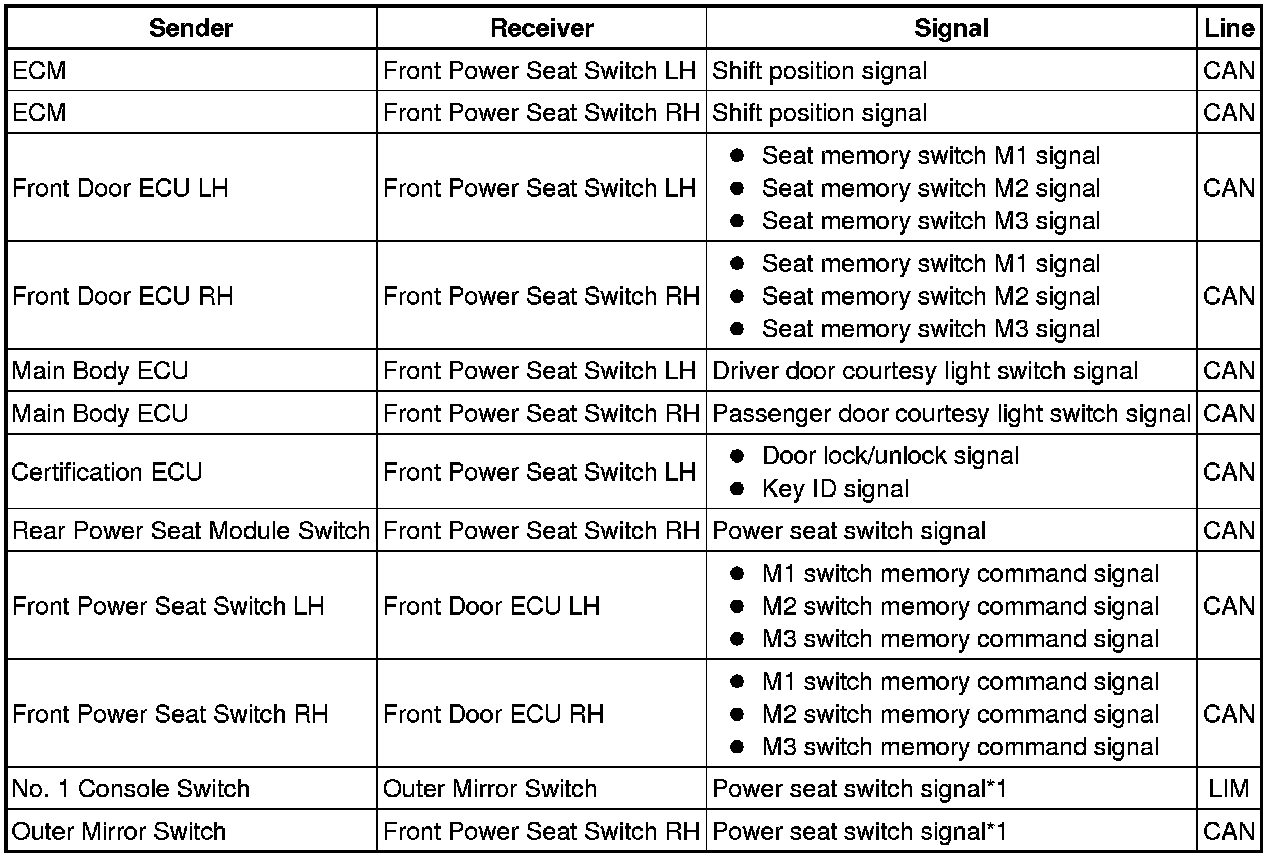

Communication table





HINT
*1: for 5-Passenger with Ottoman
