System Description

SEAT: CLIMATE CONTROL SEAT SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

The climate control seat system creates cold air to increase the comfort of seats that have become hot.

The air is cooled by the Peltier element on the back of the seat cushion pad and seatback. The air is then sent to the seat cushion and seatback by the fan installed under the seat. The fan is operated by pressing the climate control seat switch.

The climate control seat switch has 7 modes in total: 3 cooled air modes, 3 heater modes and ventilation mode.

HINT
When the highest level for cooled air operates for 15 minutes, the quantity of air falls 1 level.

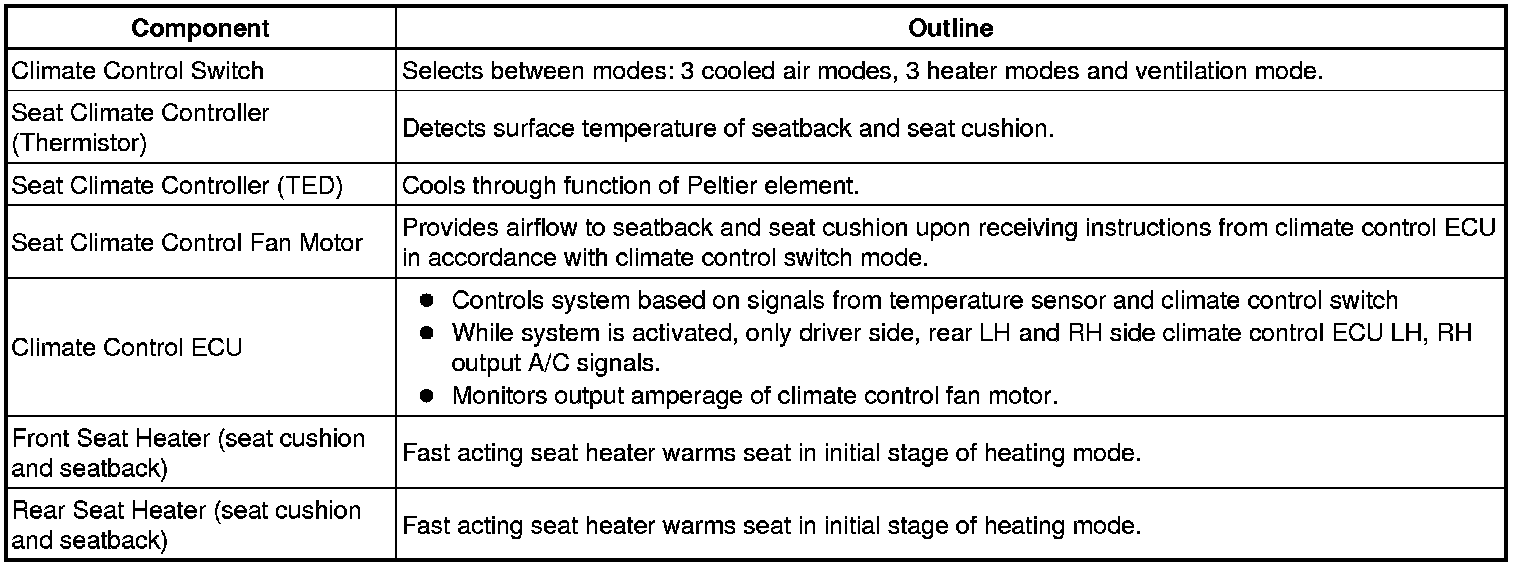

2. FUNCTION OF MAIN COMPONENT

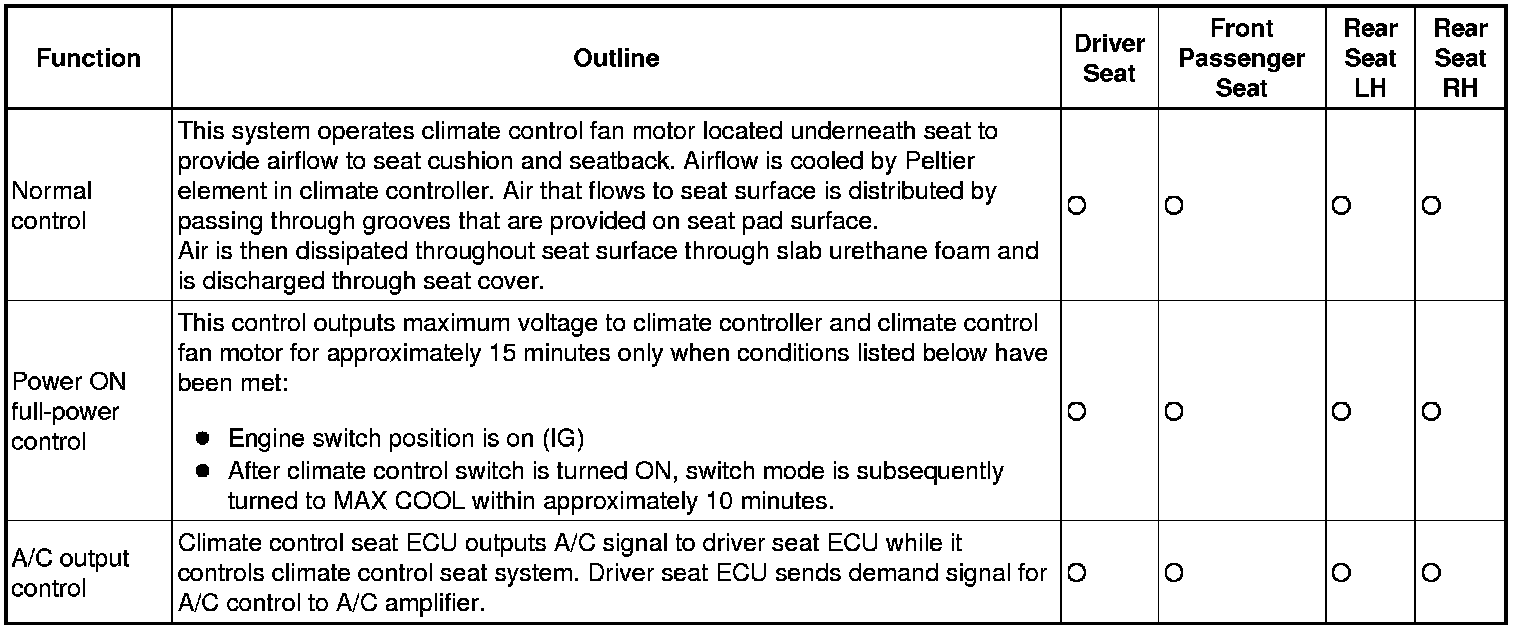

3. SYSTEM OPERATION
