Pinout Values and Diagnostic Parameters

SLIDING ROOF: SLIDING ROOF SYSTEM: TERMINALS OF ECU

1. CHECK SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU)





(a) Disconnect the X5 ECU connector.

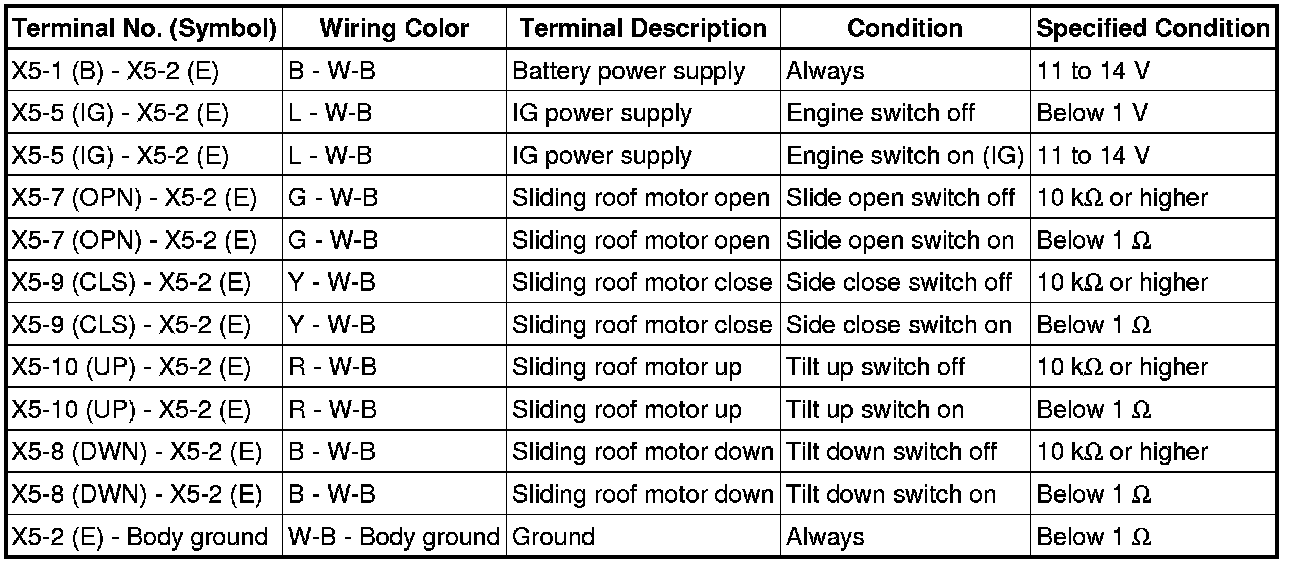

(b) Measure the resistance and voltage according to the value(s) in the table below.





* If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the X5 ECU connector.

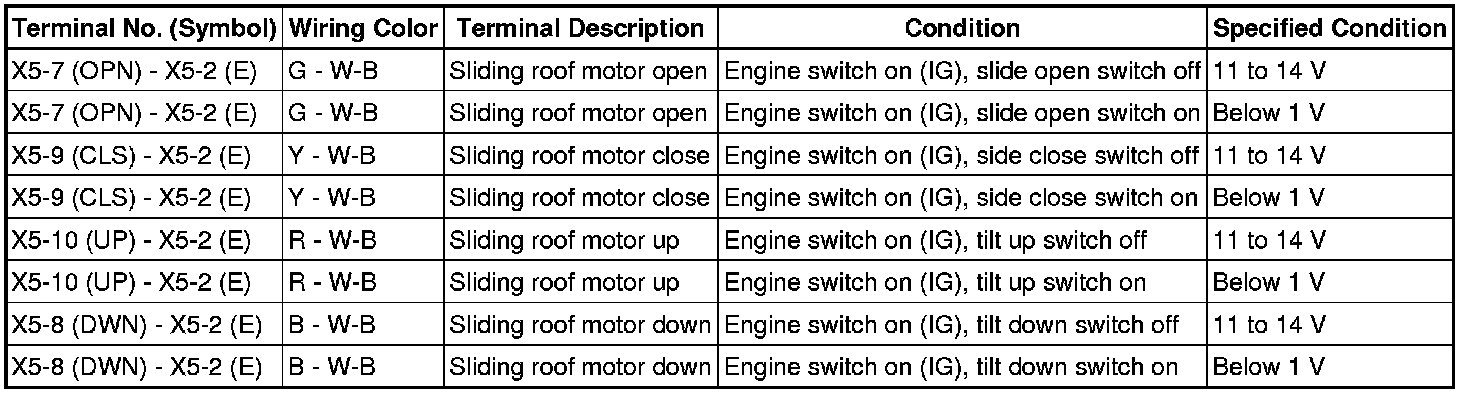

(d) Measure the voltage according to the value(s) in the table below.





* If the result is not as specified, the sliding roof drive gear sub-assembly may have a malfunction.
