Rear Door Lock

DOOR LOCK: REAR DOOR LOCK: INSPECTION

1. INSPECT REAR DOOR LOCK ASSEMBLY LH

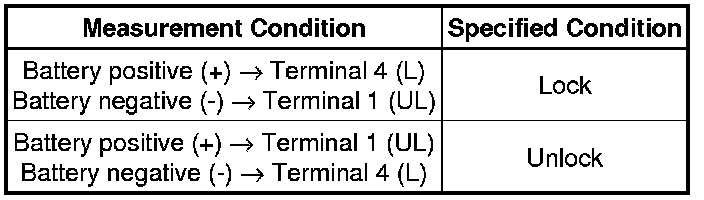

(a) Apply battery voltage to the door lock and check operation of the door lock.





OK:





* If the result is not as specified, replace the door lock assembly.

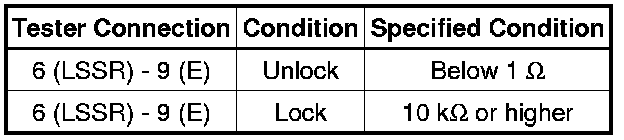

(b) Measure the resistance of the door lock position switch.

Standard resistance:





* If the result is not as specified, replace the door lock assembly.

(c) w/ Door Closer:

Closer motor operation inspection

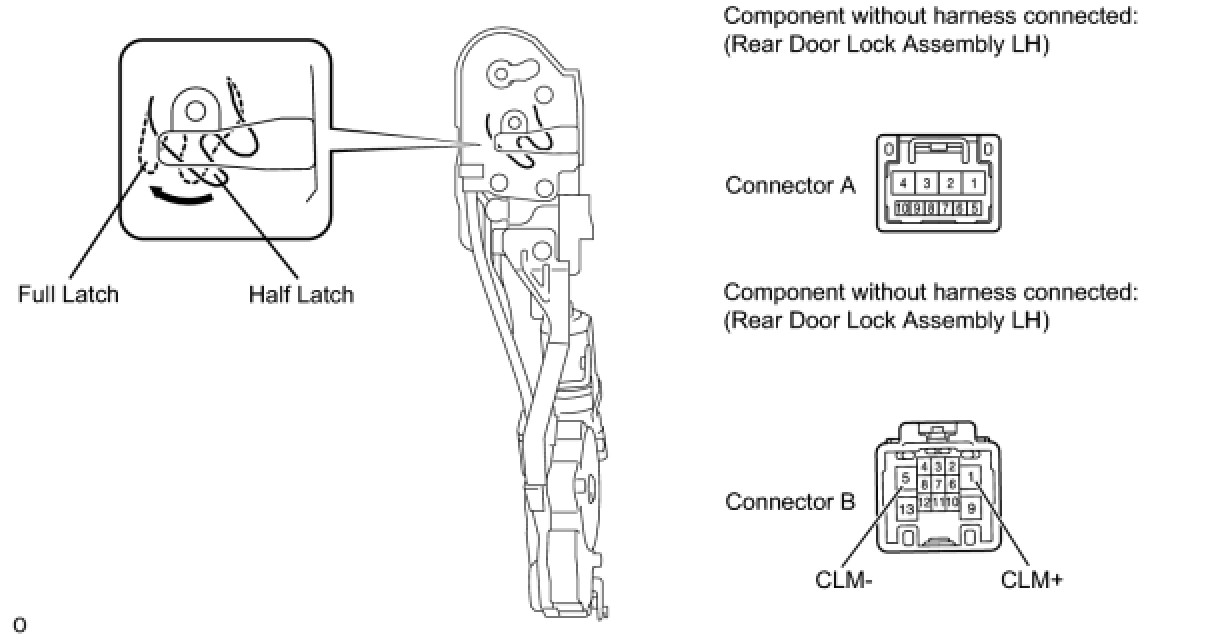

(1) Set the rear door with motor lock assembly LH to the half latch position.

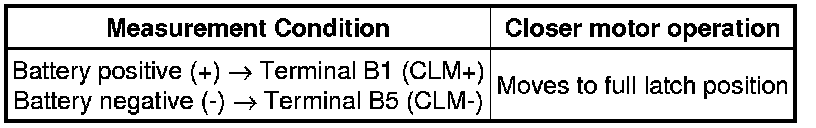

(2) When battery voltage is applied as shown below to the terminals of connector B of the rear door with motor lock assembly LH, check the operation of the door closer

OK:





* If the result is not as specified, replace the door lock assembly.

2. INSPECT REAR DOOR LOCK ASSEMBLY RH

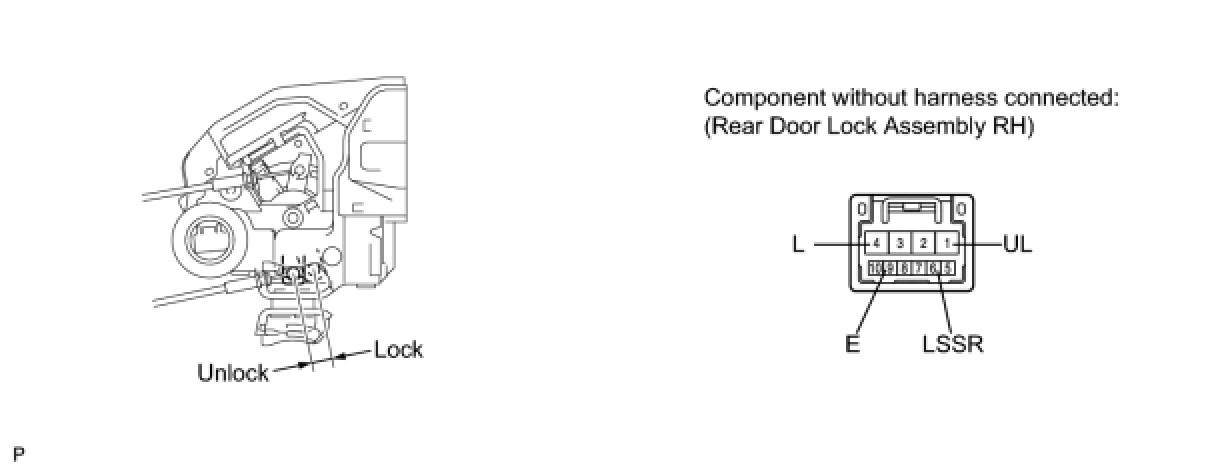

(a) Apply battery voltage to the door lock and check operation of the door lock.





OK:





* If the result is not as specified, replace the door lock assembly.

(b) Measure the resistance of the door lock position switch.

Standard resistance:





* If the result is not as specified, replace the door lock assembly.

(c) w/ Door Closer:

Closer motor operation inspection

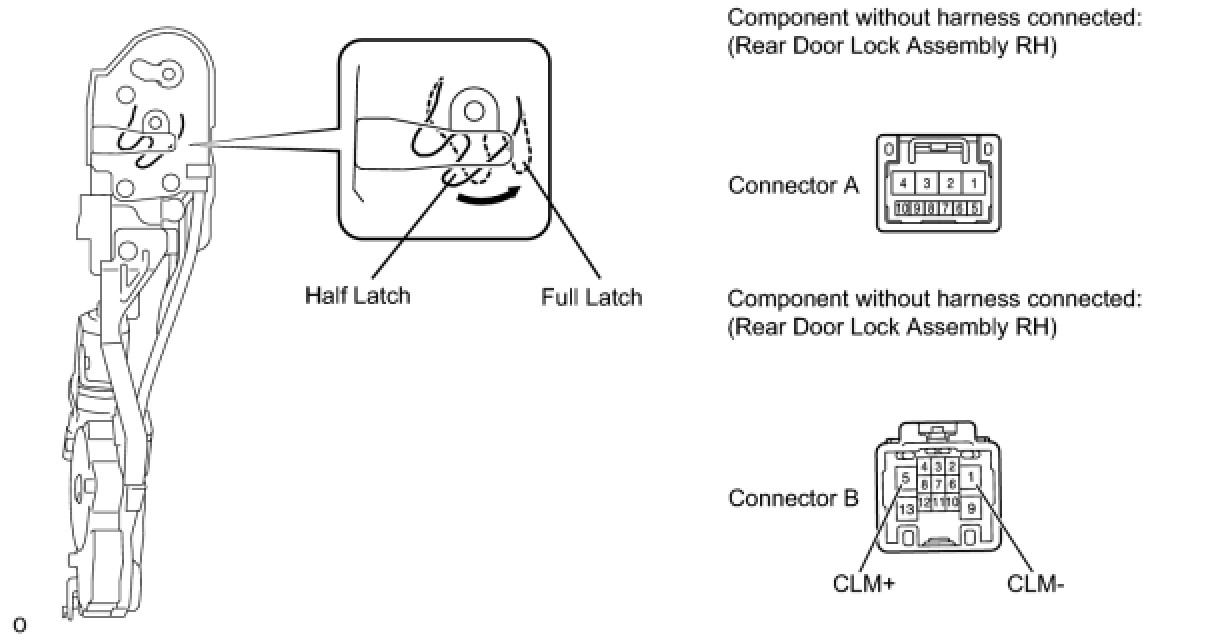

(1) Set the rear door with motor lock assembly RH to the half latch position.

(2) When battery voltage is applied as shown below to the terminals of connector B of the rear door with motor lock assembly RH, check the operation of the door closer.

OK:





* If the result is not as specified, replace the door lock assembly.
