DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the wireless door lock control system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK FOR DTC*

(a) Check for DTCs and note any codes that are output Wireless Door Lock Control System.

(b) Delete the DTC Reading and Clearing Diagnostic Trouble Codes.

(c) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes. Based on the DTCs output above, try to force output of the same CAN communication system DTC, LIN communication system DTC or wireless door lock control system DTC by simulating the symptoms indicated by the DTC.

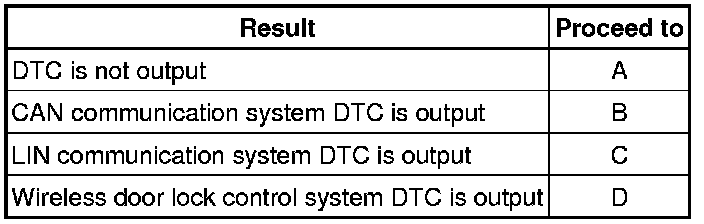

Result:





B -- Go to CAN COMMUNICATION SYSTEM CAN Communication System

C -- Go to LIN COMMUNICATION SYSTEM LIN Communication System

D -- Go to DIAGNOSTIC TROUBLE CODE CHART Wireless Door Lock Control System
A -- Continue to next step.

4. PROBLEM SYMPTOMS TABLE

Result:





B -- Go to step 6
A -- Continue to next step.

5. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Operation check Operation Check

(b) Terminals of ECU Wireless Door Lock Control System

(c) DATA LIST / ACTIVE TEST Wireless Door Lock Control System

NEXT -- Continue to next step.

6. REPAIR OR REPLACE

NEXT -- Continue to next step.

7. CONFIRMATION TEST

NEXT -- END
