Removal

DOOR LOCK: ELECTRICAL KEY OSCILLATOR (for Front Floor): REMOVAL

1. REMOVE CONSOLE BOX ASSEMBLY (except 5-Passenger with Ottoman)

(a) Remove the console box assembly Removal.

2. REMOVE CONSOLE BOX ASSEMBLY (for 5-Passenger with Ottoman)

(a) Remove the console box assembly Removal.

3. REMOVE NO. 1 CONSOLE BOX DUCT

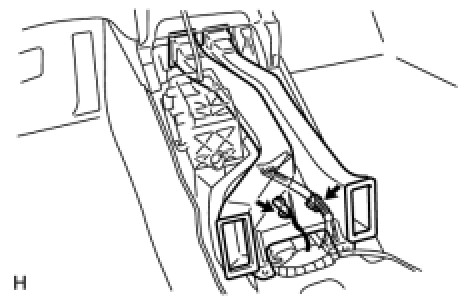

(a) Using a clip remover, remove the 2 clamps.

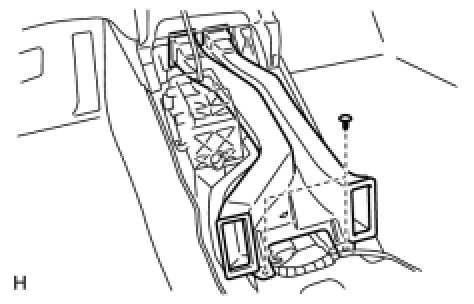

(b) Using a clip remover, remove the 2 clips and duct.

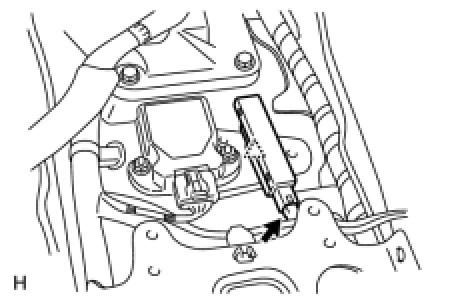

4. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR





(a) Disconnect the connector.

(b) Using a clip remover, remove the clamp and electrical key.
