Disassembly

INTERIOR: ROOF HEADLINING (for Standard Body): DISASSEMBLY

1. REMOVE ROOF SILENCER PAD





(a) w/o Rear Cooler:

Remove the 4 roof silencer pads.





(b) w/ Rear Cooler:

Remove the 4 roof silencer pads.

2. REMOVE NO. 1 ROOF WIRE

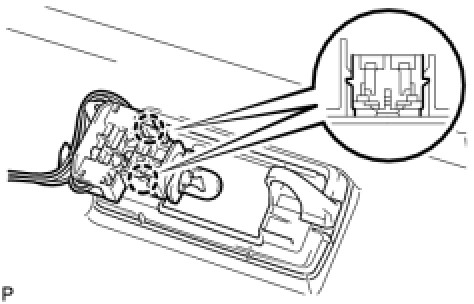

(a) Detach the 2 claws and remove the bulb holder from the vanity light.

HINT
Use the same procedure to remove the bulb holder on the other side.

(b) Remove the double-sided tape and roof wire.
