Disassembly

INTERIOR: ROOF HEADLINING (for Long Body): DISASSEMBLY

1. REMOVE ROOF SILENCER PAD

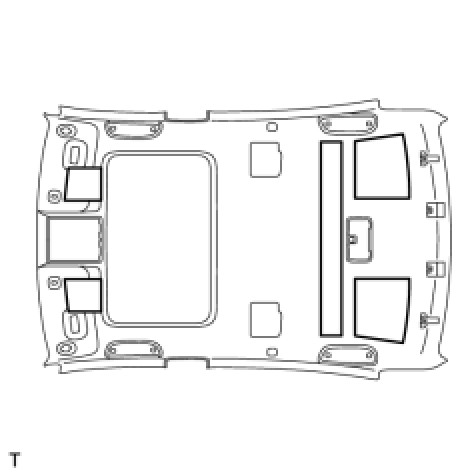

(a) w/o Rear Seat Entertainment System, w/o Rear Cooler:

Remove the 5 roof silencer pads.

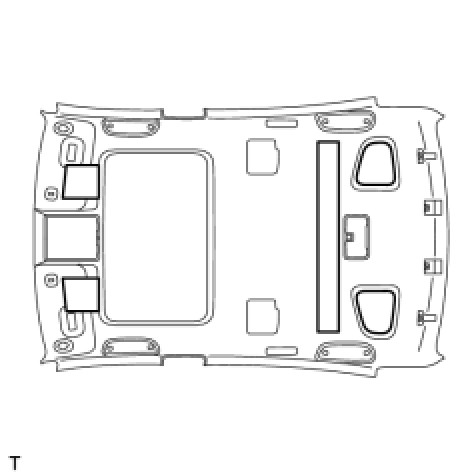

(b) w/o Rear Seat Entertainment System, w/ Rear Cooler:

Remove the 5 roof silencer pads.

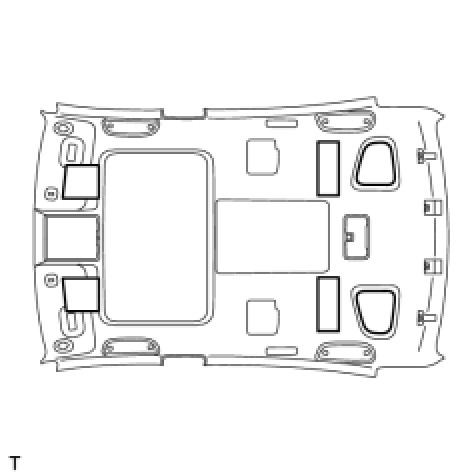

(c) w/ Rear Seat Entertainment System:

Remove the 6 roof silencer pads.

2. REMOVE NO. 1 ROOF WIRE

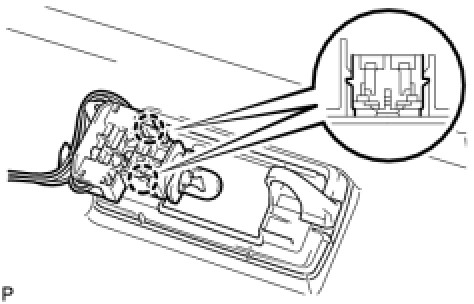

(a) Detach the 2 claws and remove the bulb holder from the vanity light.

HINT
Use the same procedure to remove the bulb holder on the other side.

(b) Remove the double-sided tape and roof wire.
