Console Box Light (w/o Rear Seat Entertainment System)

LIGHTING: CONSOLE BOX LIGHT (w/o Rear Seat Entertainment System): INSPECTION

1. INSPECT CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

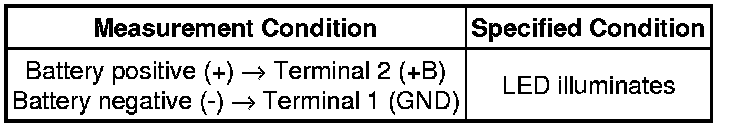

(a) Apply battery voltage to the connector and check the LED illumination condition.





OK:





If the result is not as specified, replace the console box illumination light assembly.
