Power Trunk Lid System

ENGINE HOOD / DOOR: POWER TRUNK LID SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / (desired system) / Data List.

(e) According to the display on the Techstream, read the "Data List".

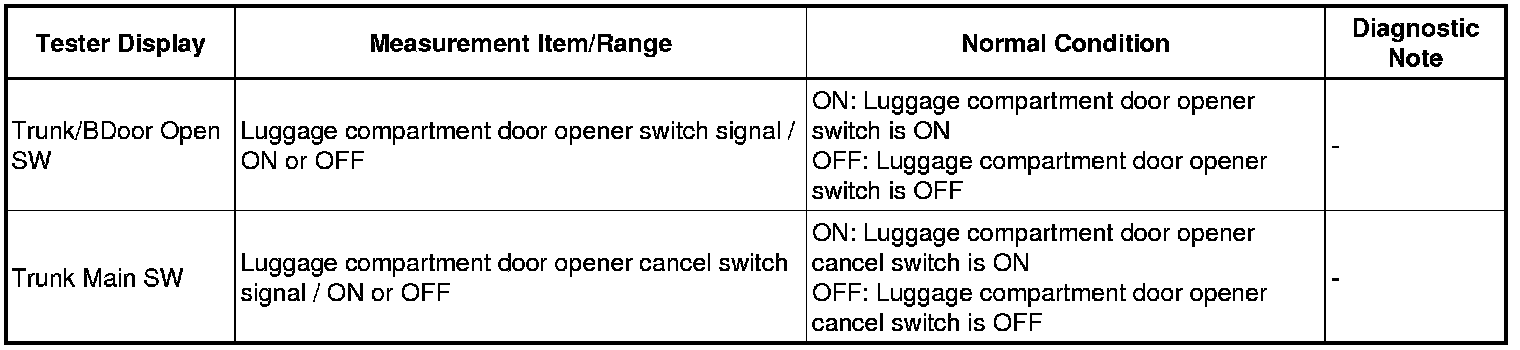

Main Body (Main body ECU)





Body No. 4 (Rear junction block ECU)





HINT
Even though Luggage Push Switch and luggage compartment door closer assembly switch items are displayed in the Body No. 4 Data List, use the Back Door Data List to determine whether a part is faulty or not.

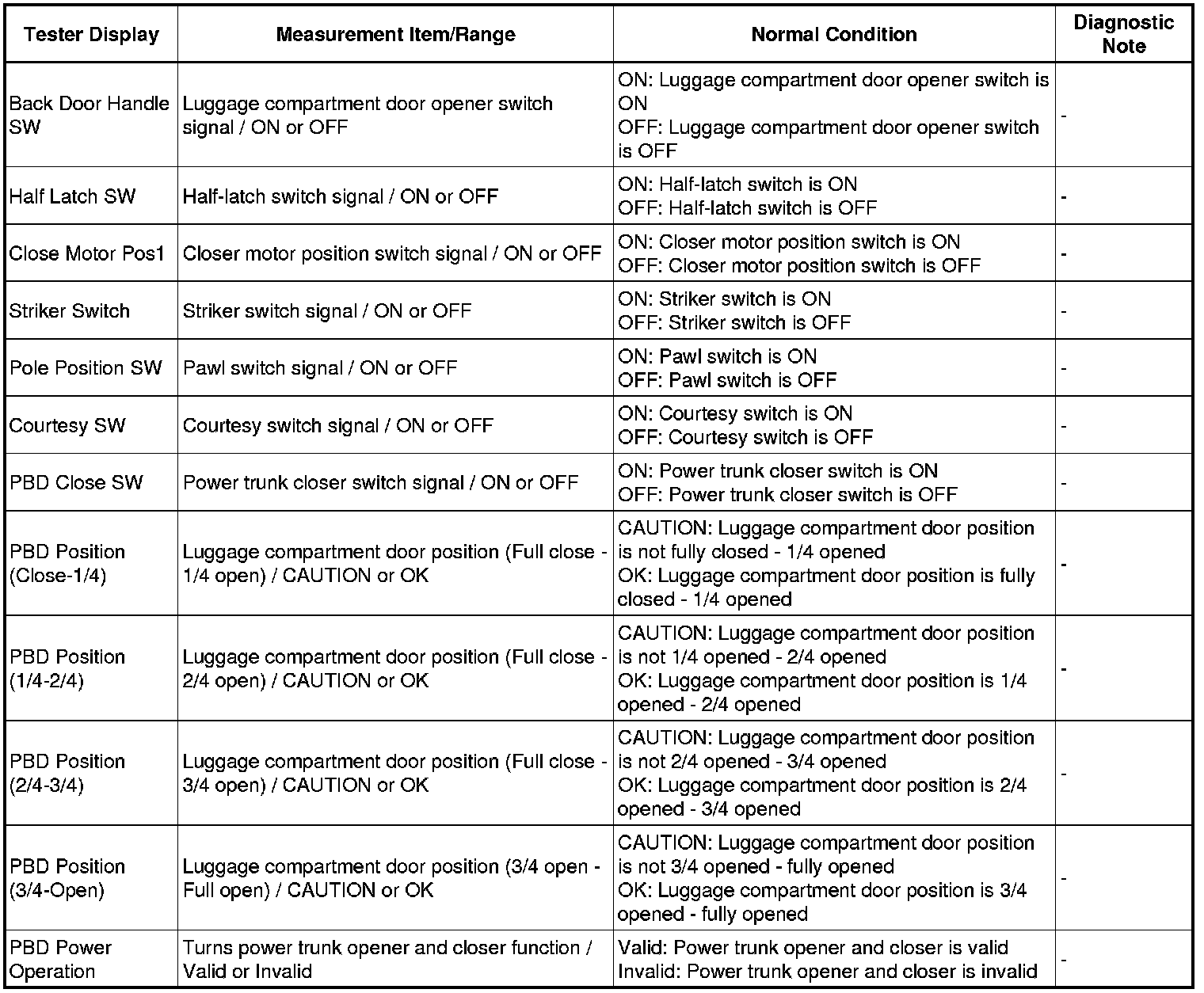

Back Door (Luggage closer motor assembly)





2. ACTIVE TEST

HINT
Using the Techstream to perform the Active Tests allows relays, VSVs and actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / (desired system) /Active Test.

(e) According to the display on the Techstream, perform the "Active Test".

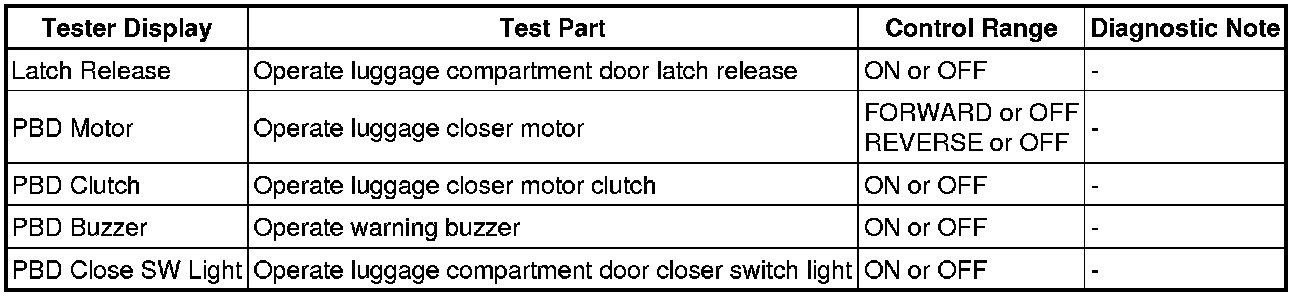

Back Door (Luggage closer motor assembly)





HINT
Even though Trunk Lid Open is displayed in the Body No. 4 Active Test, use the PBD/PTL Active Test to check the operation.
