How To Proceed With Troubleshooting

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the luggage compartment door opener system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the CAN communication system is functioning normally.

Result





B -- Go to CAN COMMUNICATION SYSTEM CAN Communication System
A -- Continue to next step.

4. CHECK FOR DTC (LUGGAGE COMPARTMENT DOOR CLOSER SYSTEM)

(a) Check for DTC Luggage Compartment Door Closer System.

(b) Clear the DTC Luggage Compartment Door Closer System.

(c) Recheck for DTC Luggage Compartment Door Closer System.

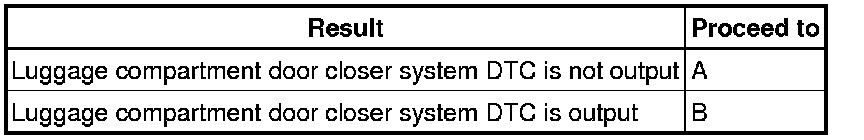

Result





B -- Go to LUGGAGE COMPARTMENT DOOR CLOSER SYSTEM Luggage Compartment Door Closer System
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

Result





B -- Go to step 7
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Operation Check Operation Check.

(b) Terminals of ECU Luggage Compartment Door Opener System.

(c) Data List / Active Test Luggage Compartment Door Opener System.

NEXT -- Continue to next step.

7. REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
