How to Proceed With Troubleshooting

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR CLOSER SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the luggage compartment door closer system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK FOR DTC*

(a) Check for DTCs Luggage Compartment Door Closer System.

(b) Clear the DTCs Luggage Compartment Door Closer System.

(c) Recheck for DTCs Luggage Compartment Door Closer System.

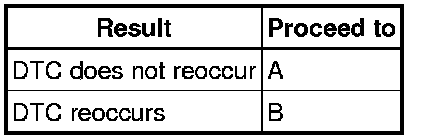

Result





B -- Go to DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.

4. PROBLEM SYMPTOMS TABLE

Result





B -- Go to step 7
A -- Continue to next step.

5. CHECK FOR DTC*

(a) Check for DTC and note any codes that are output.

(b) Delete DTC.

(c) Recheck DTC.

Result





B -- Go to DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Operation Check Operation Check

(b) Data List / Active Test Luggage Compartment Door Closer System

(c) Terminals of ECU Luggage Compartment Door Closer System

NEXT -- Continue to next step.

7. REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
