Removal

ENGINE HOOD / DOOR: FUEL LID OPENER MOTOR ASSEMBLY: REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal

2. REMOVE ROPE HOOK Removal

3. REMOVE ROPE HOOK ASSEMBLY Removal

4. REMOVE DECK TRIM SIDE BOARD LH Removal

5. REMOVE DECK TRIM SIDE BOARD RH Removal

6. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal

7. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler) Removal

8. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler) Removal

9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

10. REMOVE REAR FLOOR FINISH PLATE Removal

11. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Removal

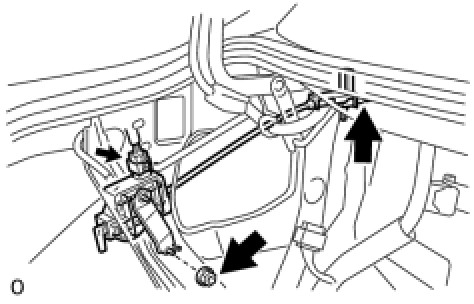

12. REMOVE FUEL LID MOTOR LOCK ASSEMBLY

(a) Disconnect the connector.





(b) Remove the 2 nuts and fuel lid motor lock assembly.
