Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Locations

Doors: Locations

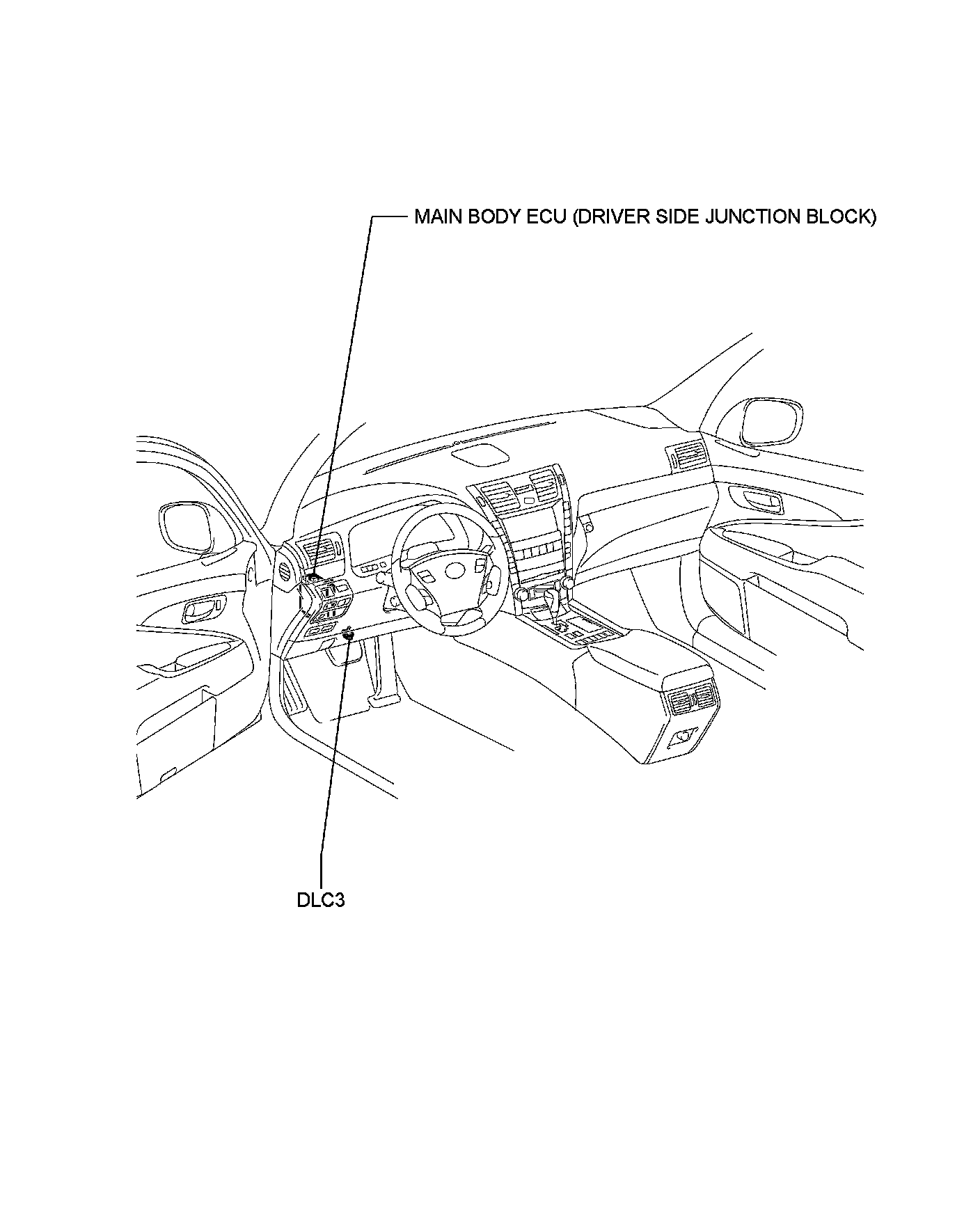

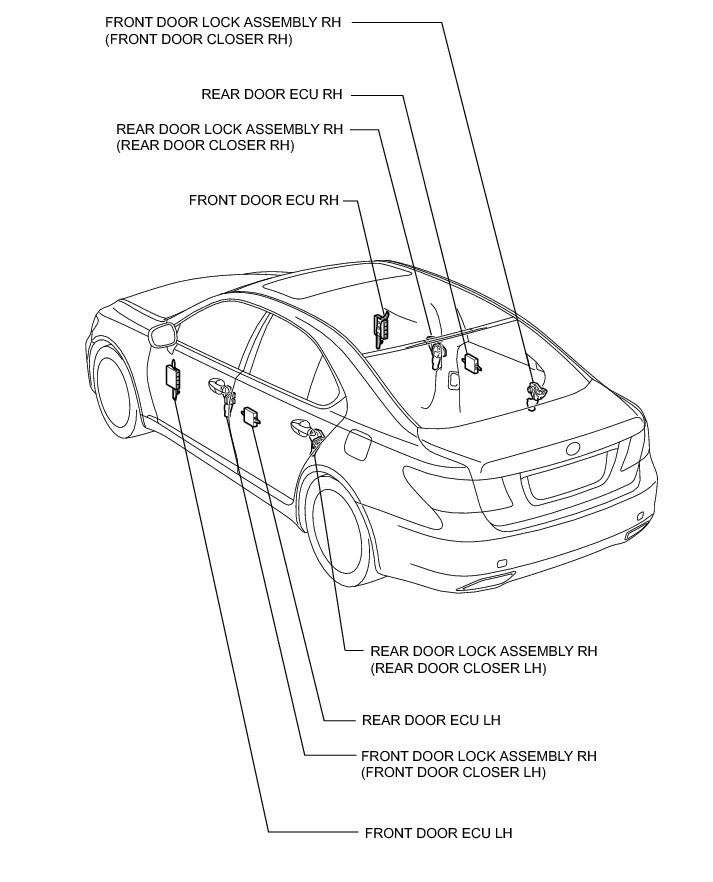

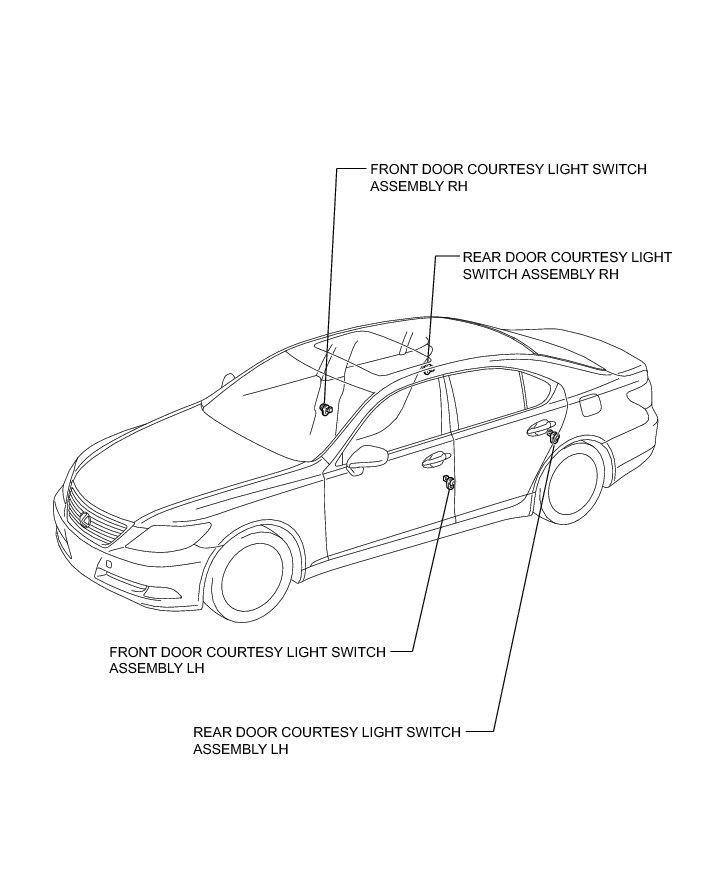

ENGINE HOOD / DOOR: DOOR CLOSER SYSTEM: PARTS LOCATION
