Audio and Visual System (w/o Multi-Display)





AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): TERMINALS OF ECU

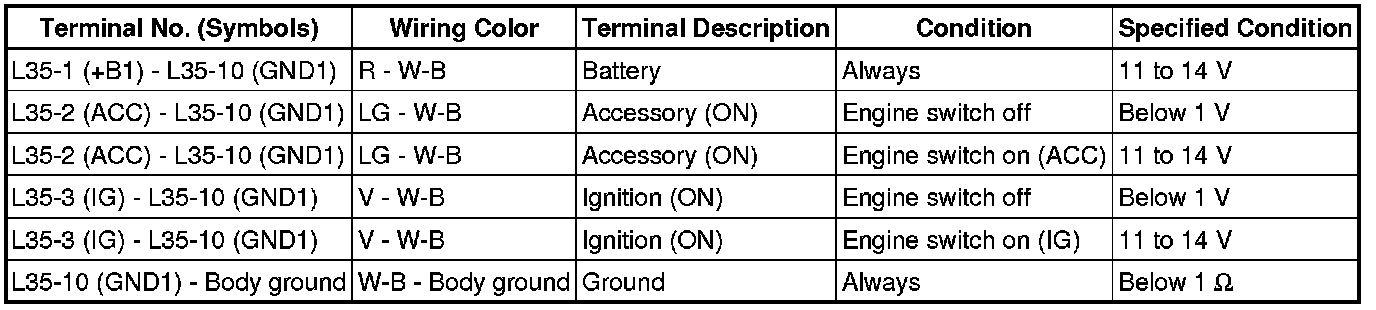

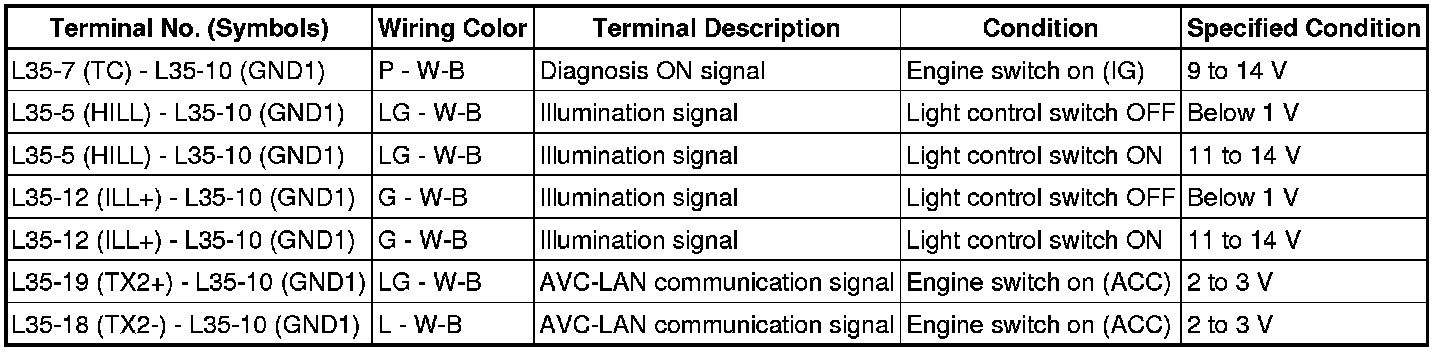

1. CHECK INTEGRATION CONTROL AND PANEL

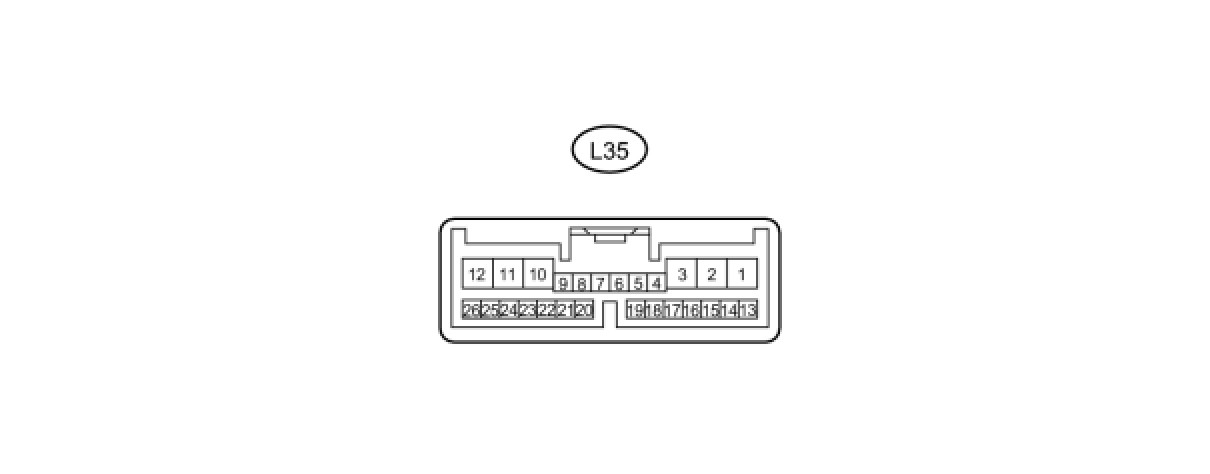

(a) Disconnect the L35 display connector.

(b) Measure the resistance and voltage according to the value(s) in the table below.





* If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the L35 display connector.

(d) Measure the voltage according to the value(s) in the table below.





* If the result is not as specified, the integration control and panel may have a malfunction.

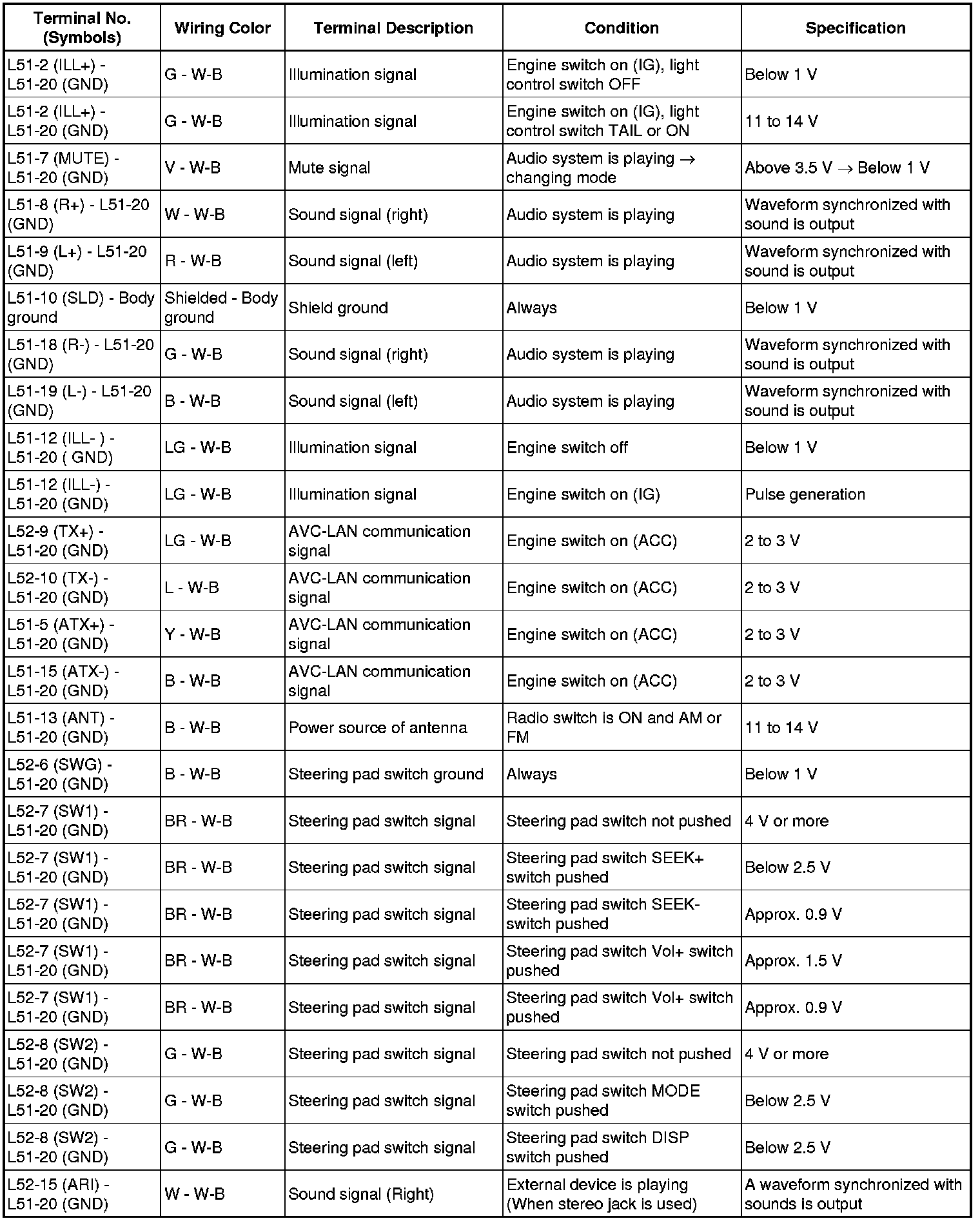

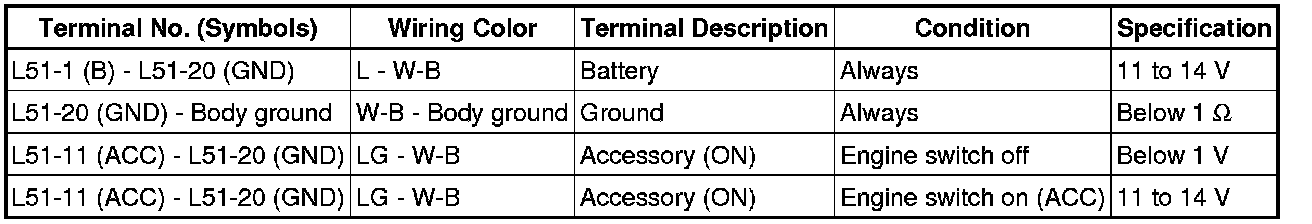

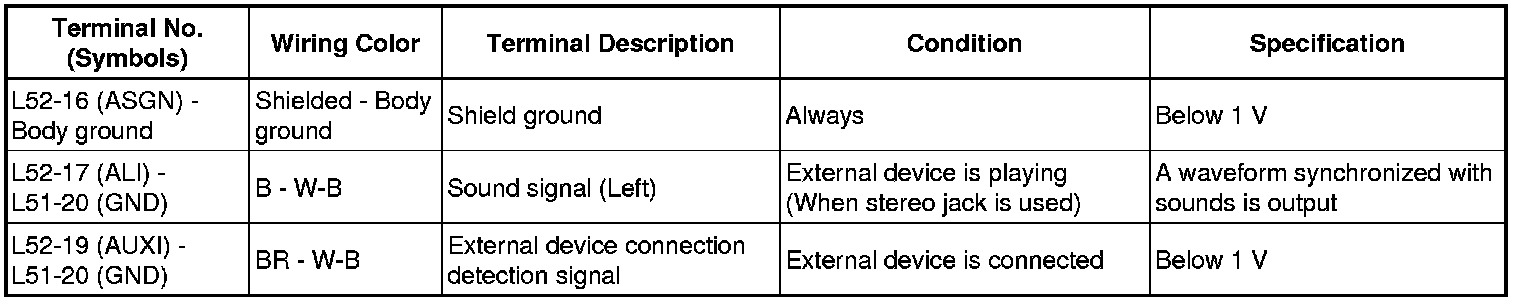

2. CHECK RADIO RECEIVER

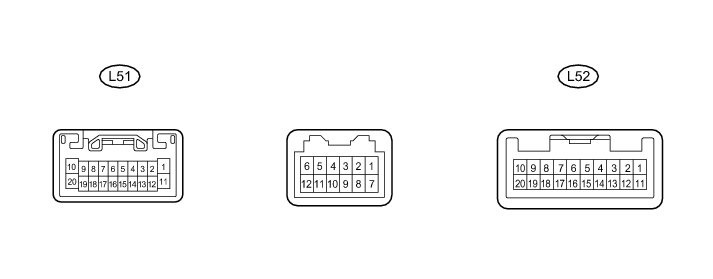

(a) Disconnect the L51 receiver connector.

(b) Measure the resistance and voltage according to the value(s) in the table below.





* If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the L51 receiver connector.

(d) Measure the voltage according to the value(s) in the table below.









* If the result is not as specified, the receiver may have a malfunction.

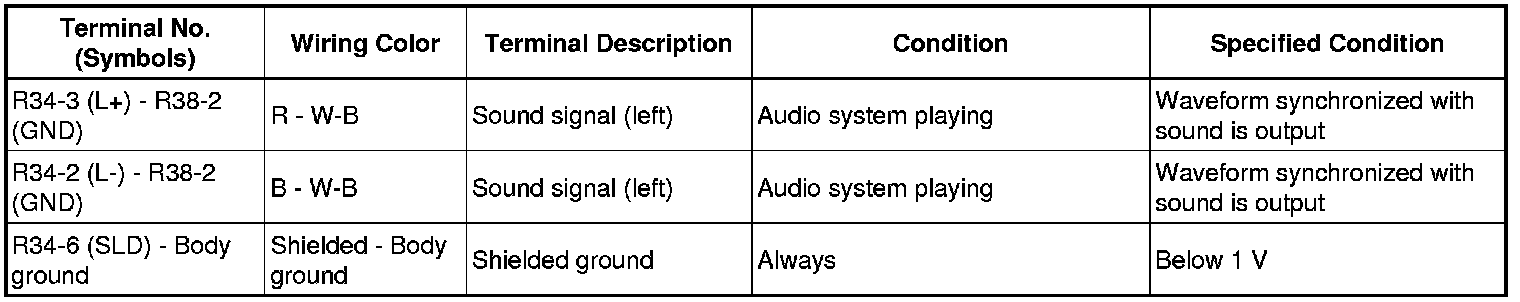

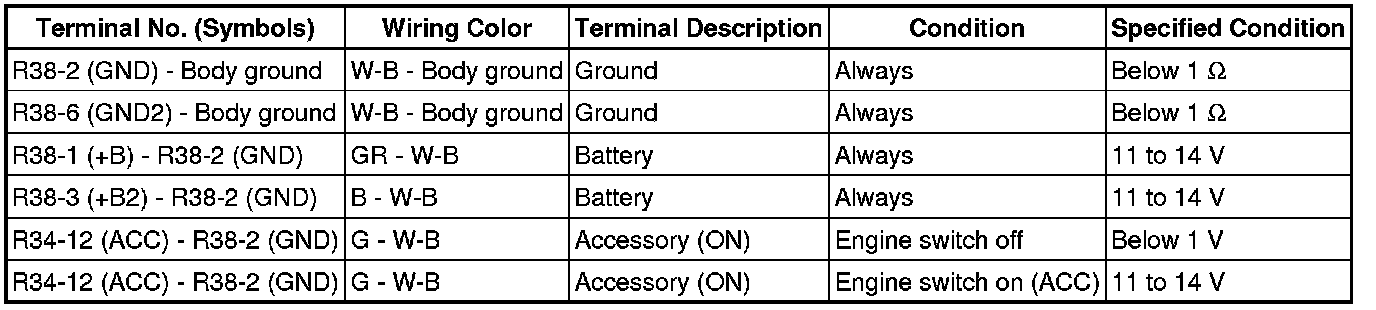

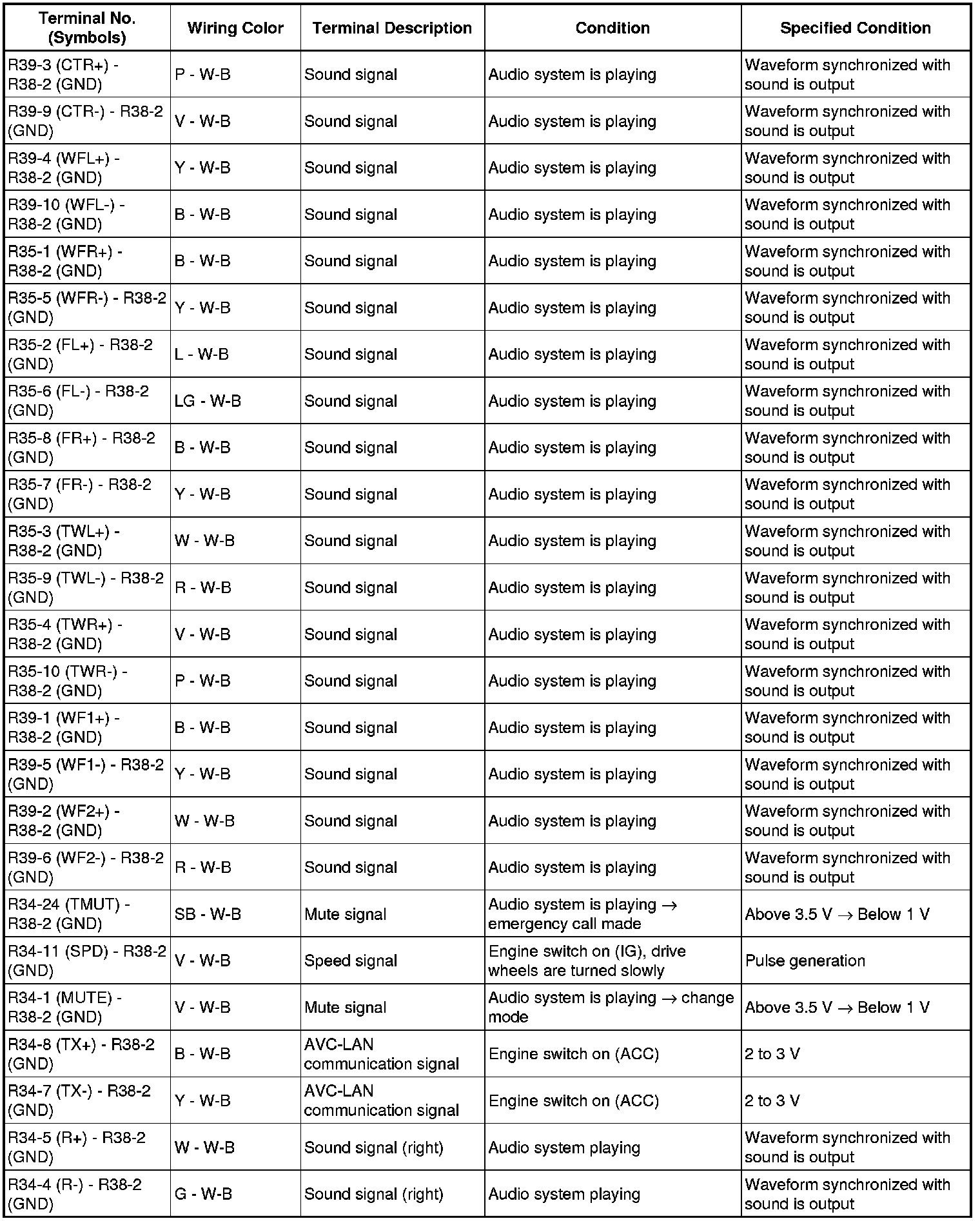

3. CHECK STEREO COMPONENT AMPLIFIER

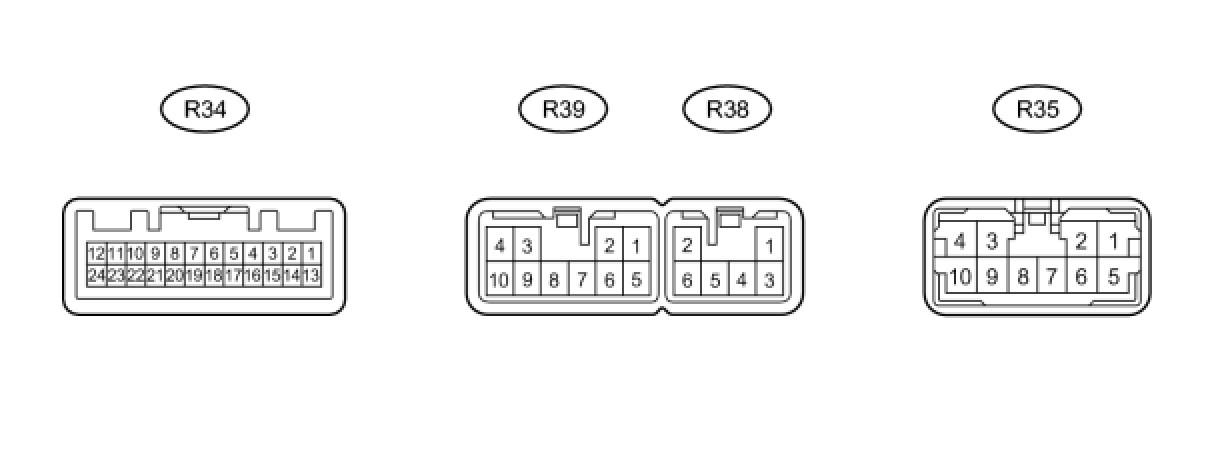

(a) Disconnect the R34 and R38 amplifier connectors.

(b) Measure the resistance and voltage according to the value(s) in the table below.





* If the result is not as specified, there may be a malfunction on the wire harness.

(c) Reconnect the R34 and R38 amplifier connectors.

(d) Measure the voltage according to the value(s) in the table below.









* If the result is not as specified, the amplifier may have a malfunction.

4. CHECK TELEMATICS TRANSCEIVER Safety Connect System
