Integration Control and Panel Assembly Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): Integration Control and Panel Assembly Power Source Circuit
- Integration Control and Panel Assembly Power Source Circuit

DESCRIPTION

The circuit provides power to the integration control and panel assembly.

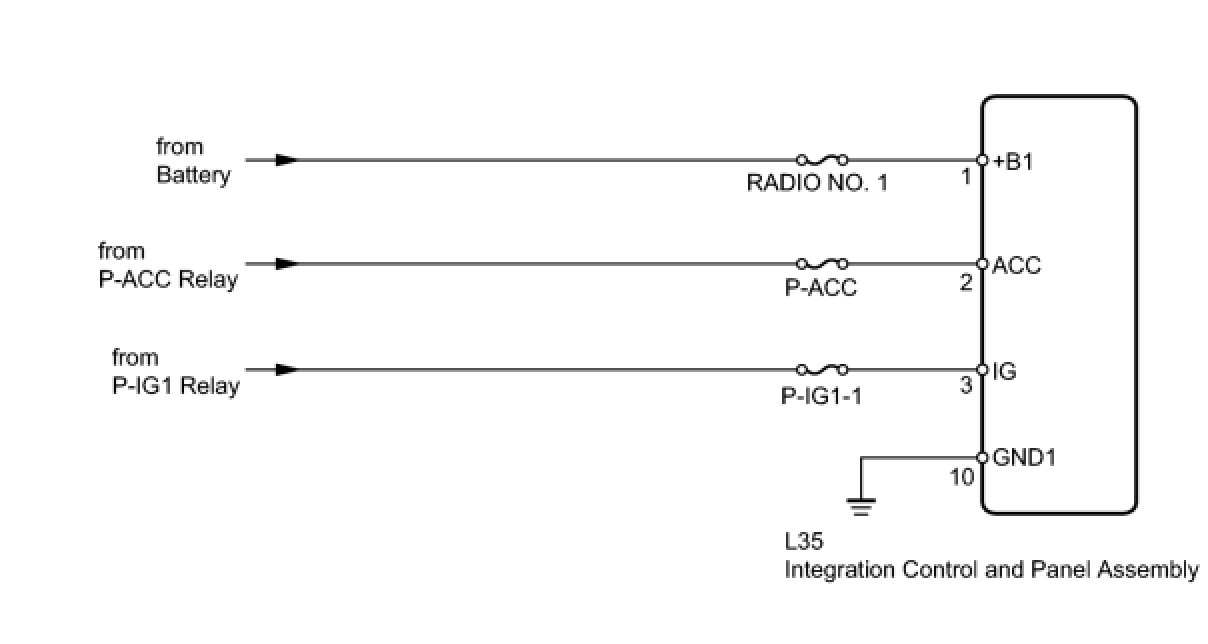

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (RADIO NO. 1, P-ACC, P-IG1-1)

(a) Disconnect the RADIO NO. 1, P-ACC and P-IG1-1 fuses from the passenger side junction block.

(b) Measure the resistance of the fuses.

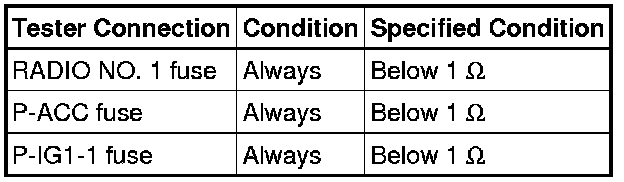

Standard resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (INTEGRATION CONTROL AND PANEL ASSEMBLY - BATTERY AND BODY GROUND)

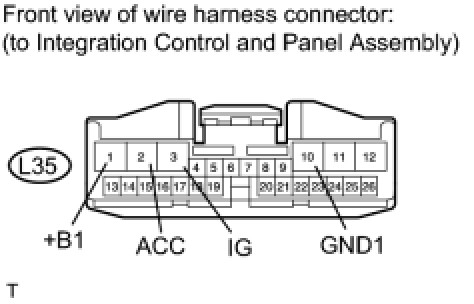

(a) Disconnect the L35 panel connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Measure the voltage according to the value(s) in the table below.

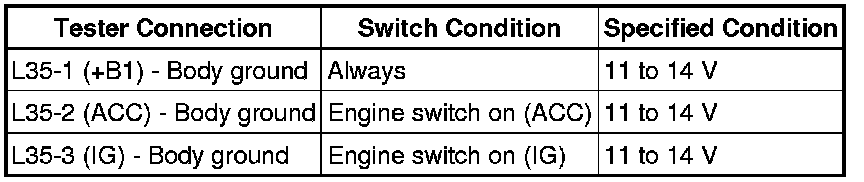

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
