Rear Seat Control Switch Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): Rear Seat Control Switch Power Source Circuit
- Rear Seat Control Switch Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the rear power seat switch.

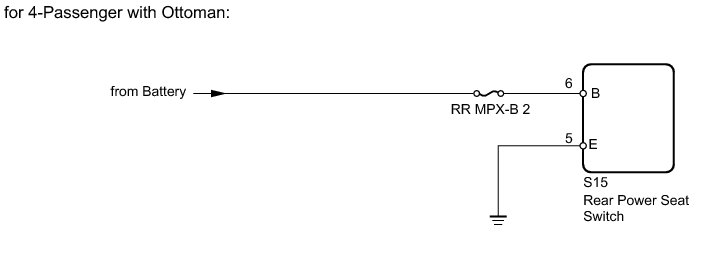

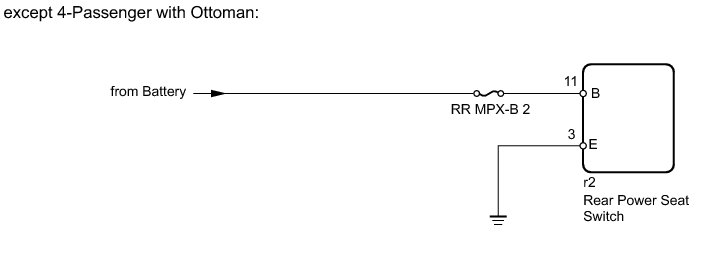

WIRING DIAGRAM









INSPECTION PROCEDURE

CAUTION:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
First make sure the CAN communication system is operating normally.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - BATTERY AND BODY GROUND)

(a) for 4-Passenger with Ottoman:

(1) Disconnect the S15 rear power seat switch connector.





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(b) except 4-Passenger with Ottoman:

(1) Disconnect the r2 rear power seat switch connector.





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
