Audio and Visual System (w/ Multi-Display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): PRECAUTION

1. PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

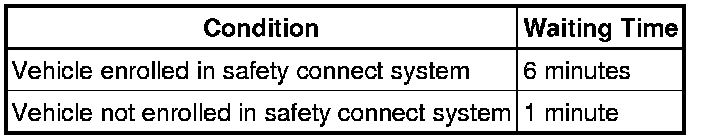

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal





2. NOTICE FOR INITIALIZATION

NOTICE:

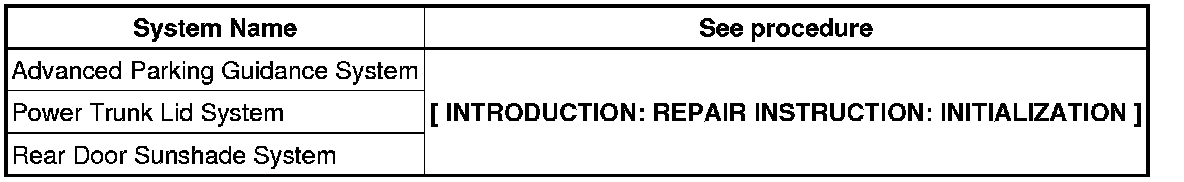

When disconnecting the cable from the negative (-) battery terminal, initialize the following systems after the cable is reconnected.





3. PRECAUTIONS WHEN USING TECHSTREAM

(a) When using the Techstream with the engine switch off to troubleshoot: Connect the Techstream to the vehicle, and turn a courtesy light switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.

(b) After all DTCs are cleared, check if the trouble occurs again 6 seconds after the engine switch is turned on (IG).
