Audio and Visual System (w/ Multi-Display)

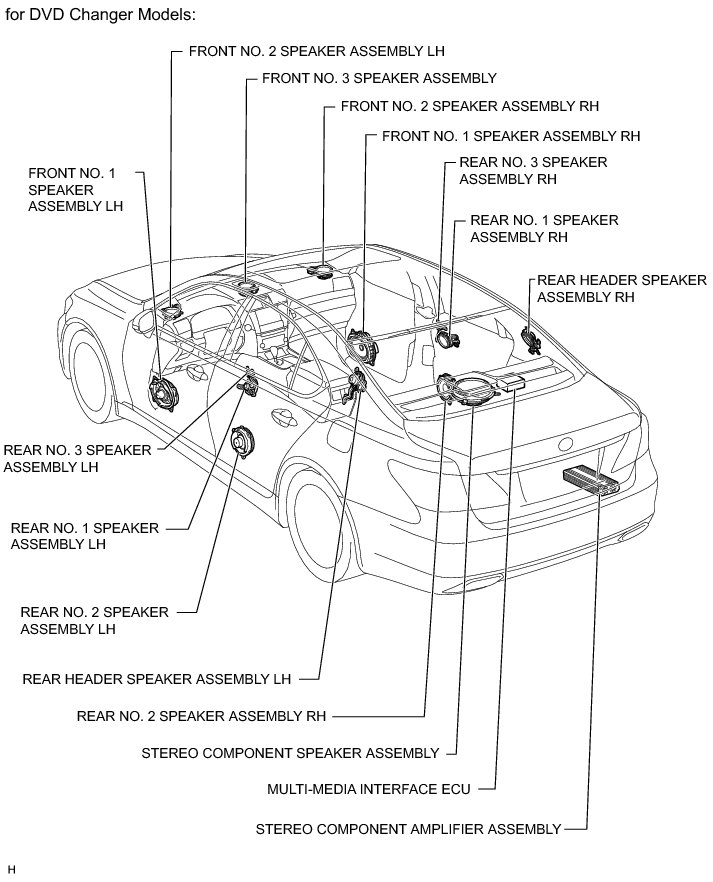

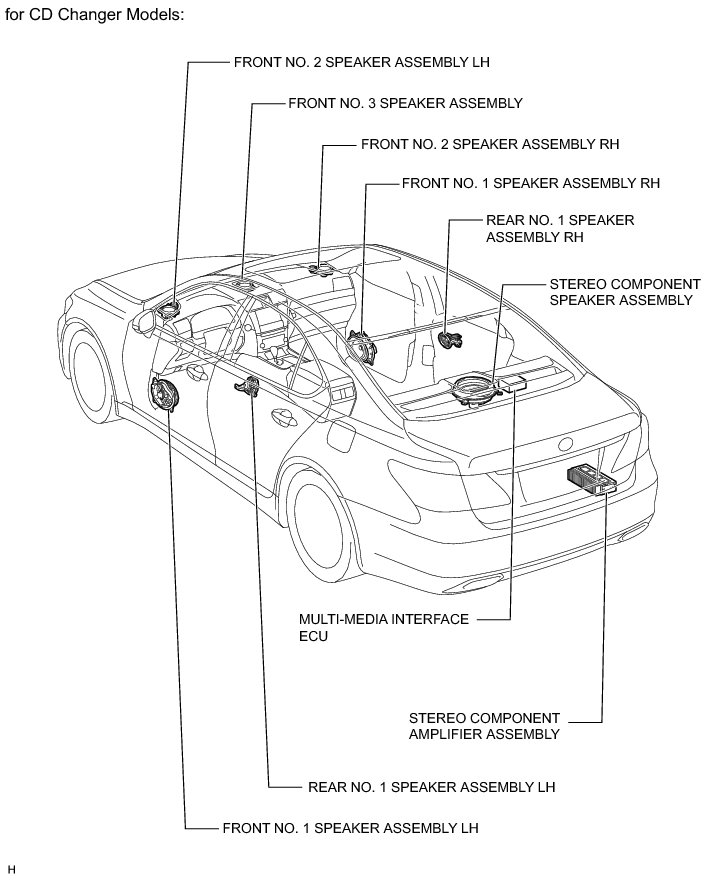

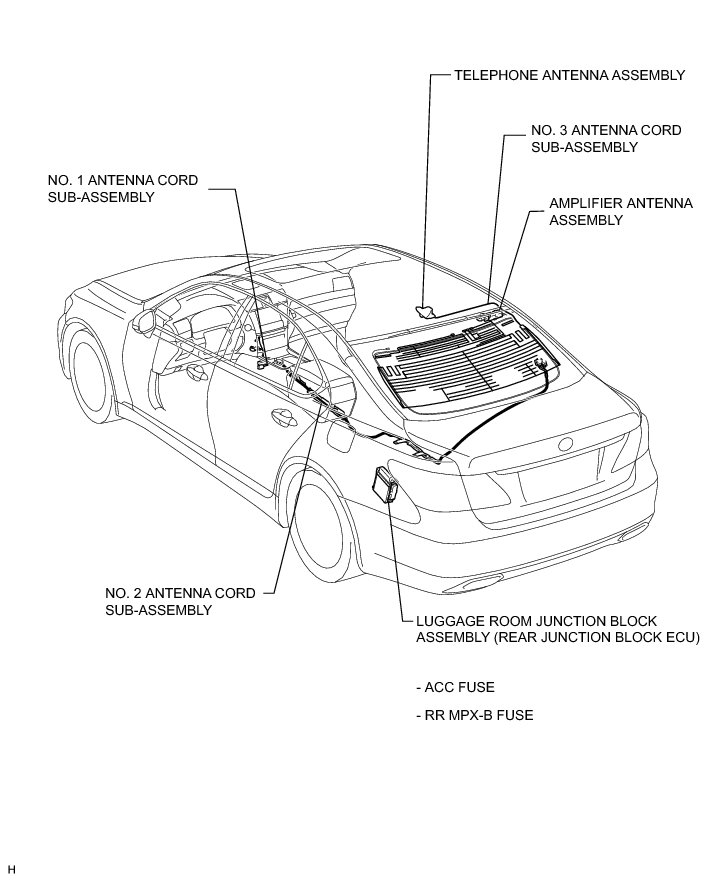

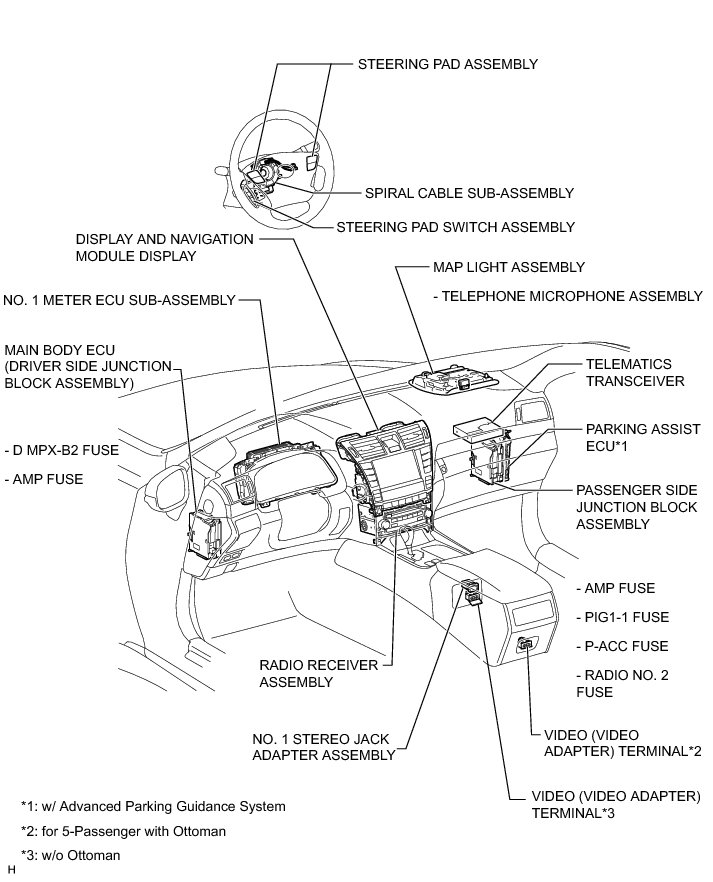

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): PARTS LOCATION
