Installation

AUDIO / VISUAL: DISC PLAYER (except 5-Passenger with Ottoman): INSTALLATION

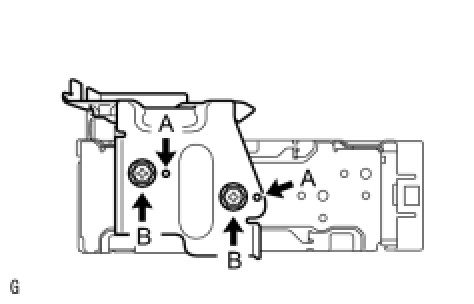

1. INSTALL NO. 1 DISC PLAYER BRACKET





(a) Set the bracket's aligning protrusions labeled A into the disc player's holes.

(b) Install the bracket with the 2 bolts labeled B.

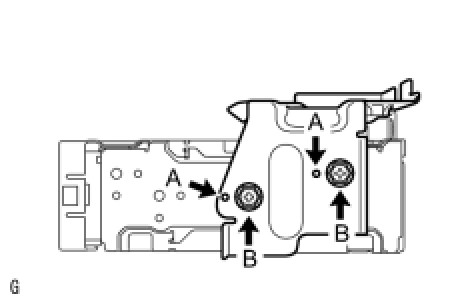

2. INSTALL NO. 2 DISC PLAYER BRACKET





(a) Set the bracket's aligning protrusions labeled A into the disc player's holes.

(b) Install the bracket with the 2 bolts labeled B.

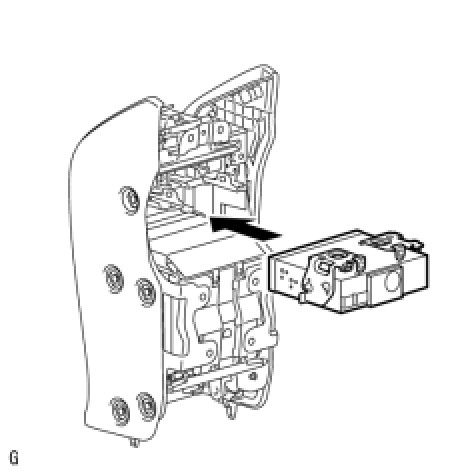

3. INSTALL DISC PLAYER CONTROLLER WITH BRACKET

(a) Install the disc player to the rear console box.





(b) Install the 4 bolts.





(c) Install the clips and connect all the connectors.





4. INSTALL REAR SEAT CONSOLE BOX ASSEMBLY Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
