Installation

NAVIGATION: NAVIGATION ECU (for DVD): INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Repair Instruction - Initialization.

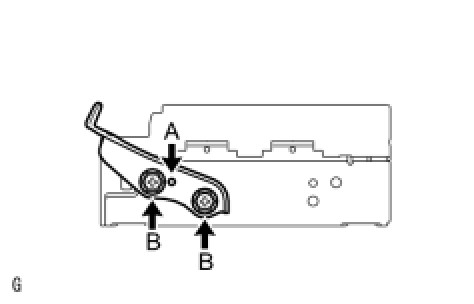

1. INSTALL NO. 2 DISC PLAYER BRACKET





(a) Install the bracket's aligning protrusions labeled A to the ECU.

(b) Install the 2 screws labeled B.

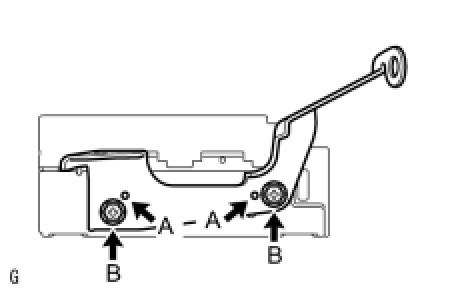

2. INSTALL NO. 1 DISC PLAYER BRACKET





(a) Install the bracket's aligning protrusions labeled A to the ECU.

(b) Install the 2 screws labeled B.

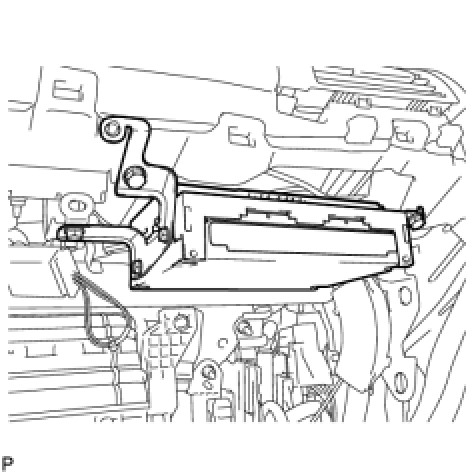

3. INSTALL NAVIGATION ECU WITH DISC PLAYER BRACKET





(a) Connect the ECU connectors.

(b) Install the ECU with bracket with the 3 bolts.

4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

5. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

6. INSTALL INSTRUMENT PANEL LOWER Installation

7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

8. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING Installation

9. INSTALL INSTRUMENT SIDE PANEL RH Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

11. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

12. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

13. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
