System Diagram

NAVIGATION: NAVIGATION SYSTEM (for HDD): SYSTEM DIAGRAM

1. MOST NETWORK COMMUNICATION LINE

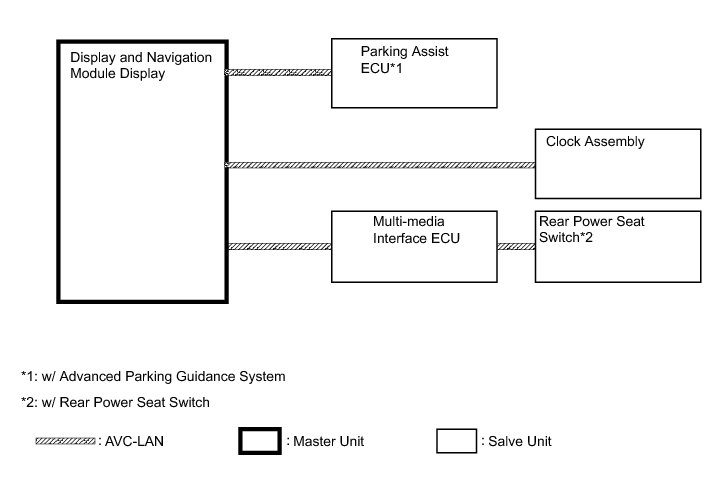

2. AVC-LAN COMMUNICATION LINE





3. OTHER

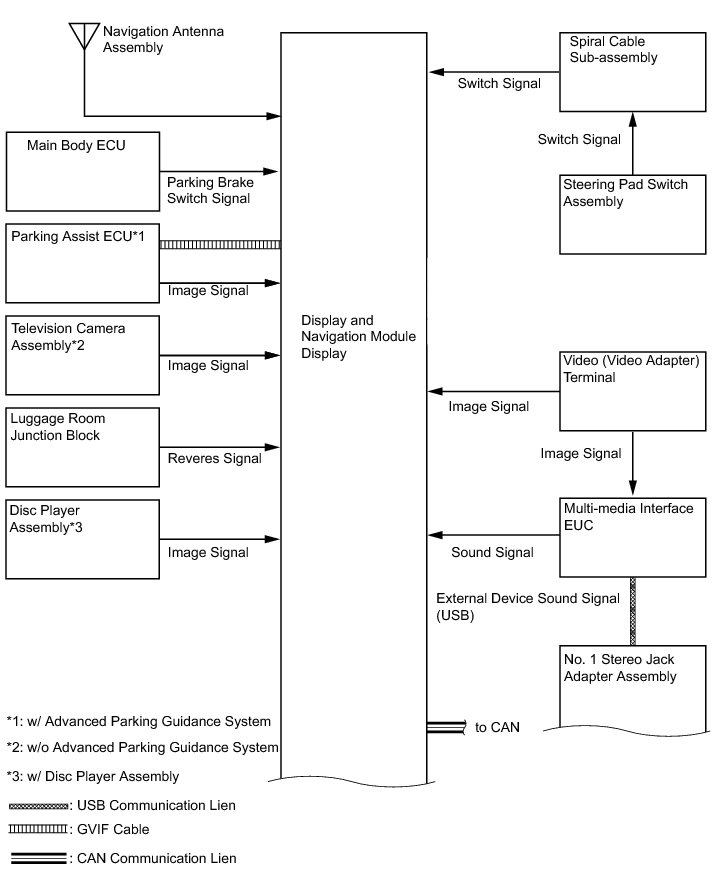

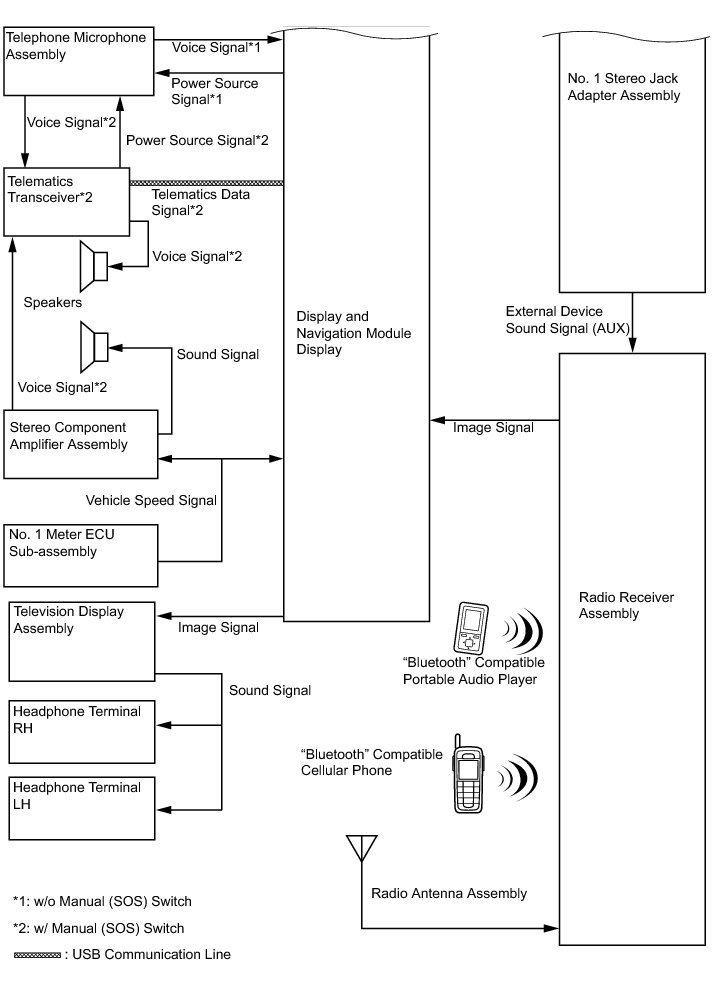

(a) w/ Rear Seat Entertainment System

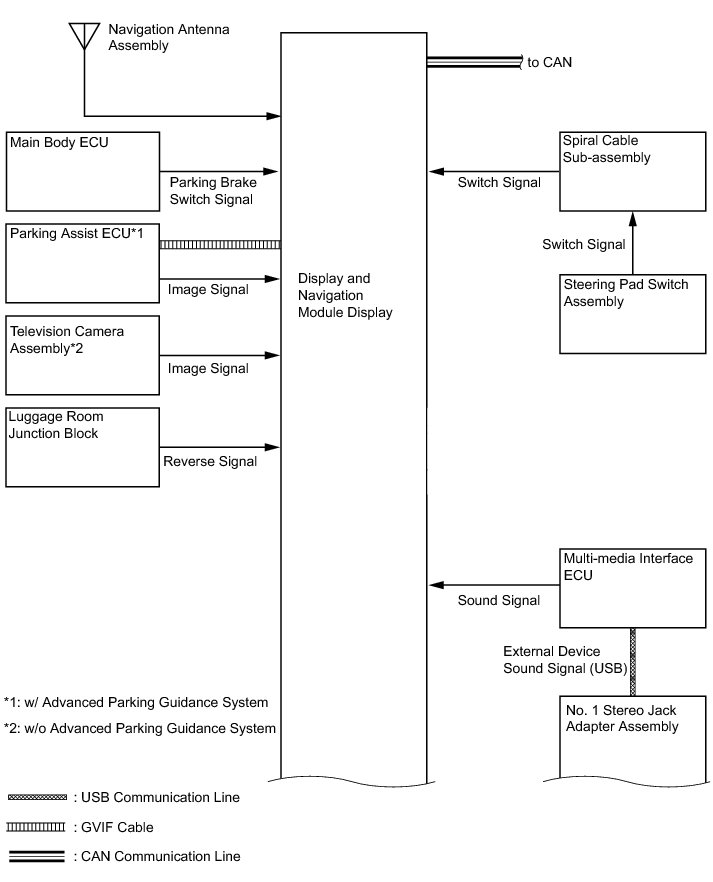

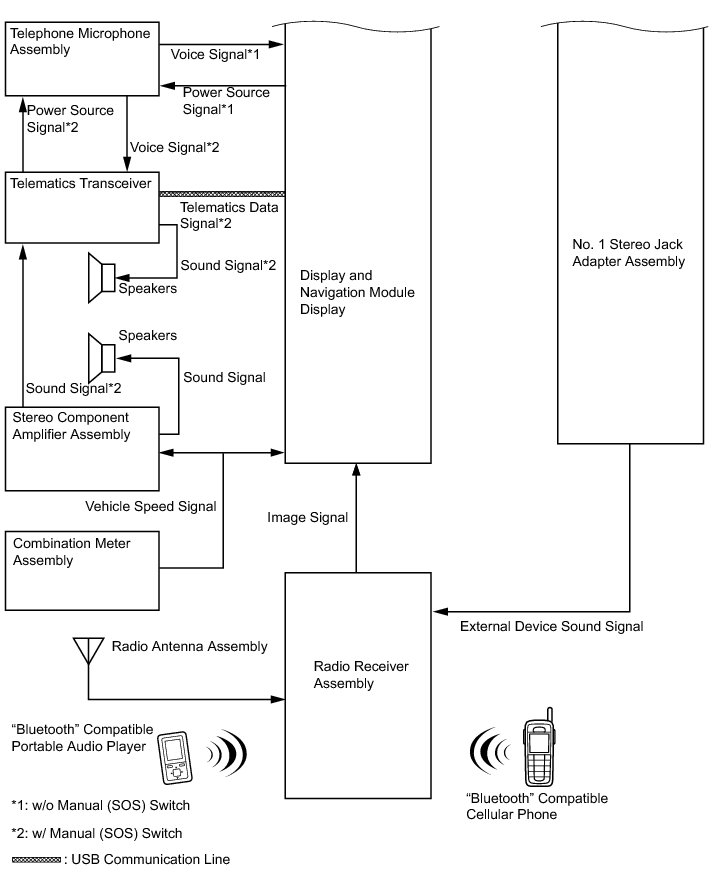

(b) w/o Rear Seat Entertainment System
