System Diagram

NAVIGATION: NAVIGATION SYSTEM (for DVD): SYSTEM DIAGRAM

1. MOST NETWORK COMMUNICATION LINE





2. AVC-LAN COMMUNICATION LINE





3. OTHER

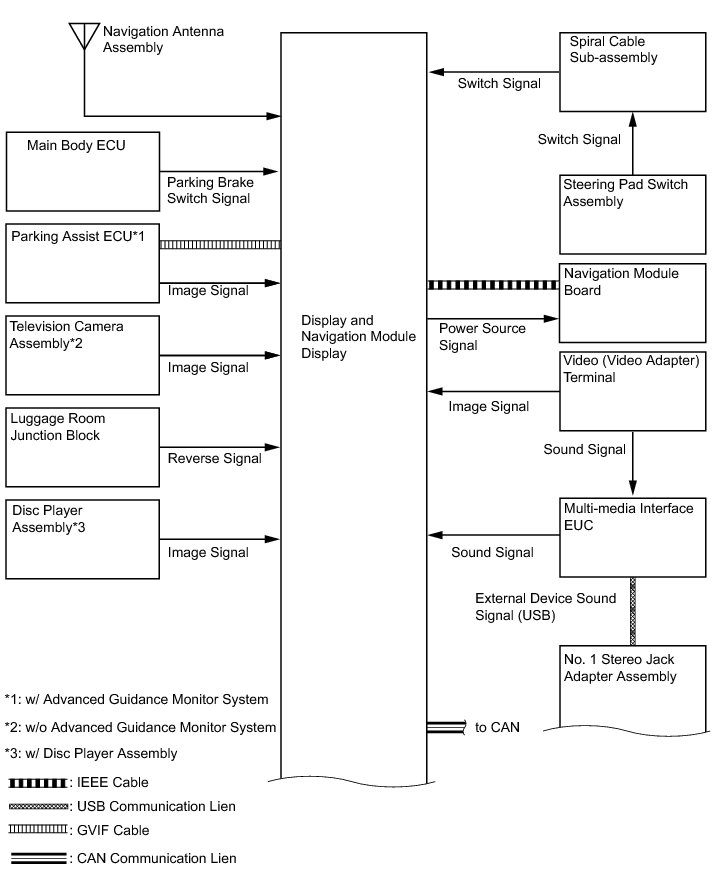

(a) w/ Rear Seat Entertainment System

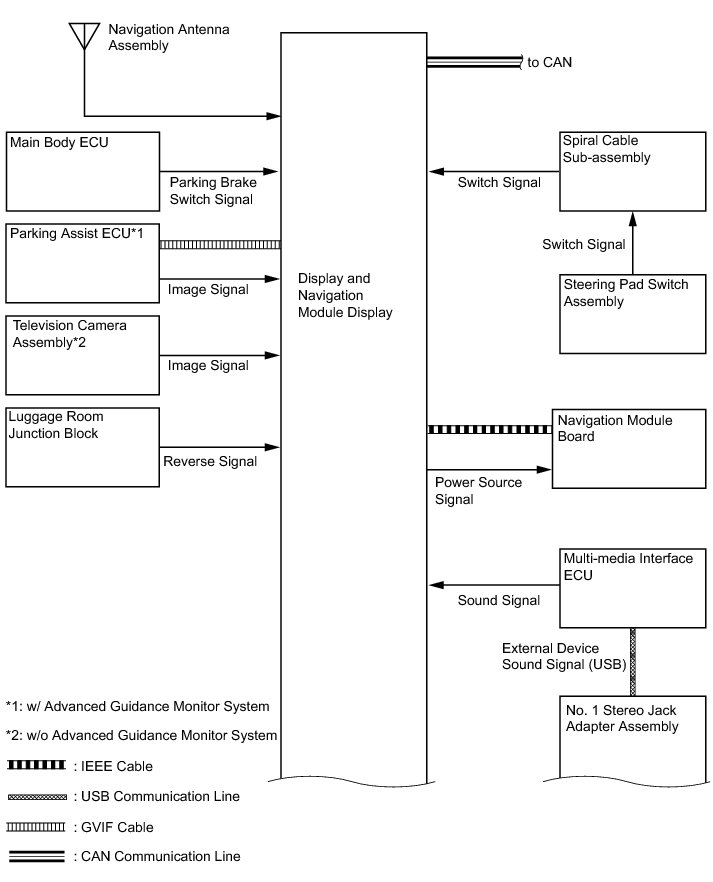

(b) w/o Rear Seat Entertainment System
