Installation

GARAGE DOOR OPENER: GARAGE DOOR OPENER TRANSMITTER: INSTALLATION

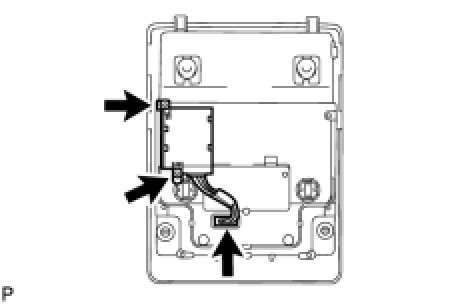

1. INSTALL GARAGE DOOR OPENER TRANSMITTER





(a) Install the garage door opener transmitter with the 2 screws.

(b) Connect the connector.

2. INSTALL MAP LIGHT ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
