Pinout Values and Diagnostic Parameters

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: TERMINALS OF ECU

1. CHECK TELEVISION DISPLAY ASSEMBLY (for Roof)

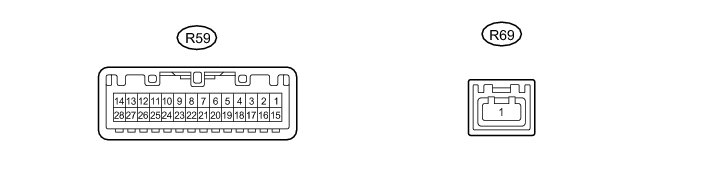

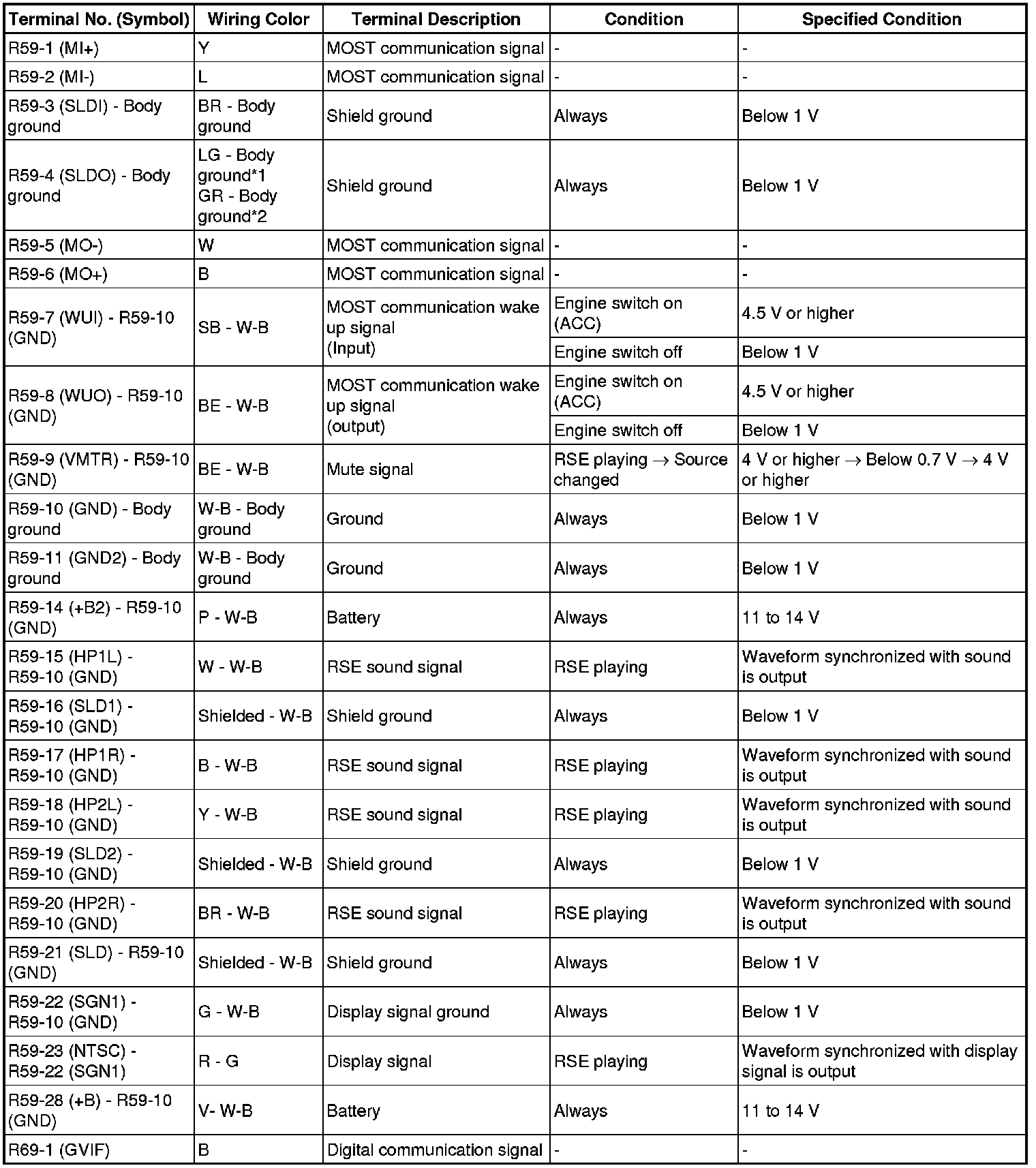

(a) Measure the voltage and resistance and check for pulses according to the value(s) in the table below.





* *1: w/ Disc Player Assembly

* *2: w/o Disc Player Assembly

2. CHECK TELEVISION DISPLAY ASSEMBLY (for Console Box)

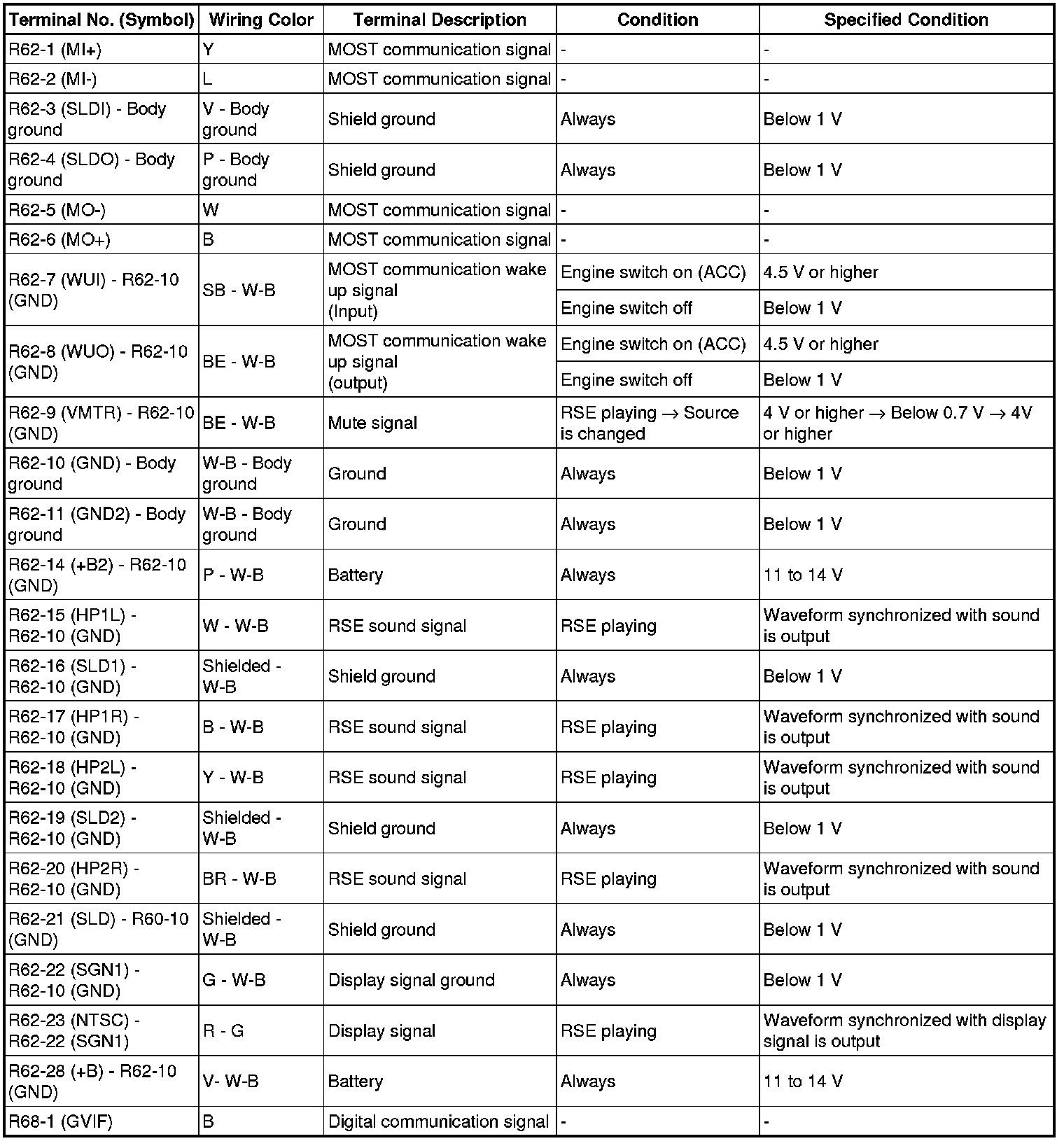

(a) Measure the voltage, resistance and check for pulses according to value(s) in the table below.





3. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System [for DVD]) Removal

4. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System [for HDD]) Removal

5. CHECK DISPLAY AND NAVIGATION MODULE (w/o Navigation System) Pinout Values and Diagnostic Parameters.

6. CHECK MULTI-MEDIA INTERFACE ECU Removal

7. CHECK RADIO RECEIVER ASSEMBLY Audio and Visual System (w/ Multi-Display)
