Television Display Power Source Circuit

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: Television Display Power Source Circuit
- Television Display Power Source Circuit

DESCRIPTION

This is power source circuit of the television display assembly.

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY - BATTERY AND BODY GROUND)

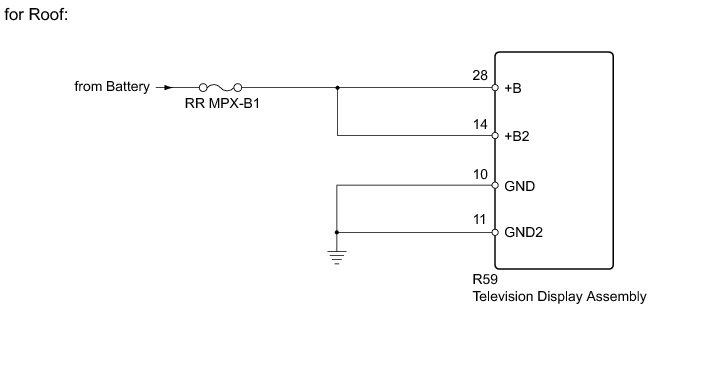

(a) for Roof:

(1) Disconnect the R59 television display assembly connector.





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

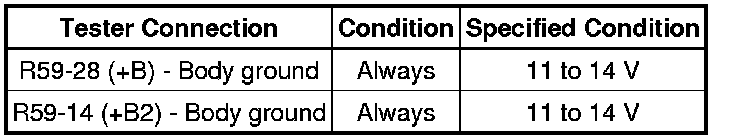

(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration

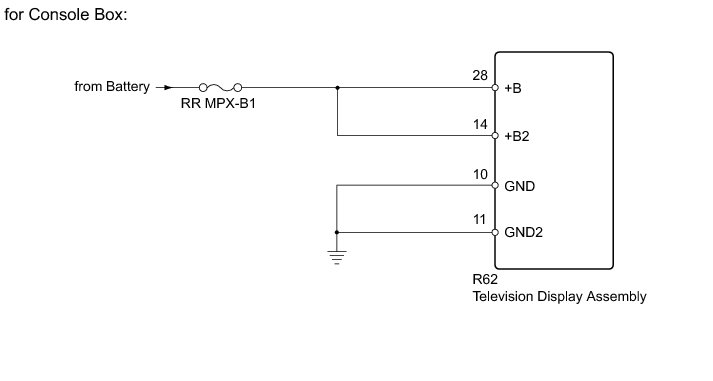

(b) for Console Box:

(1) Disconnect the R62 television display assembly connector.

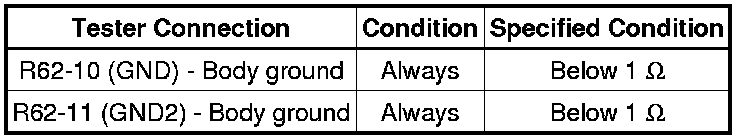

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

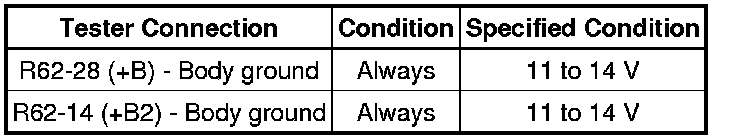

(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
