System Diagram





AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: SYSTEM DIAGRAM

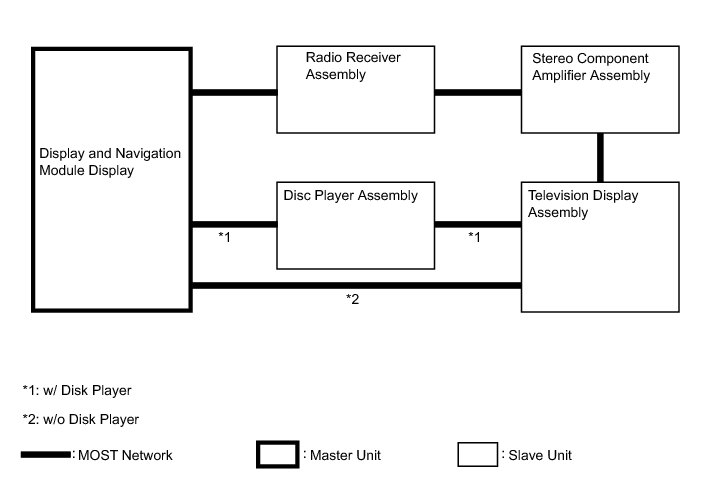

1. MOST NETWORK COMMUNICATION LINE

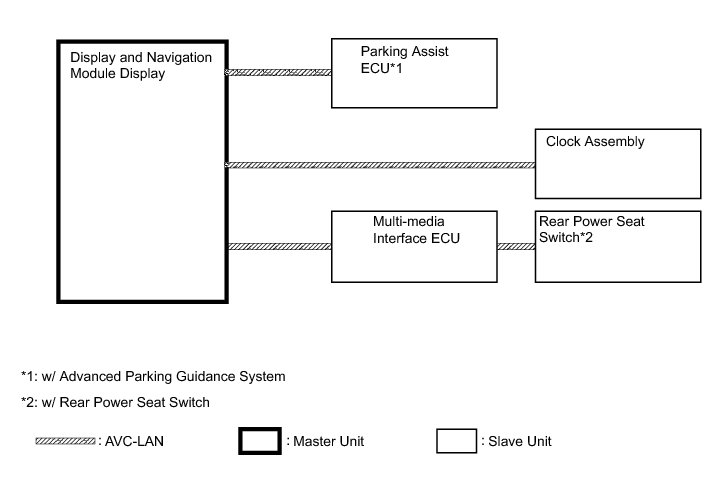

2. AVC-LAN COMMUNICATION LINE

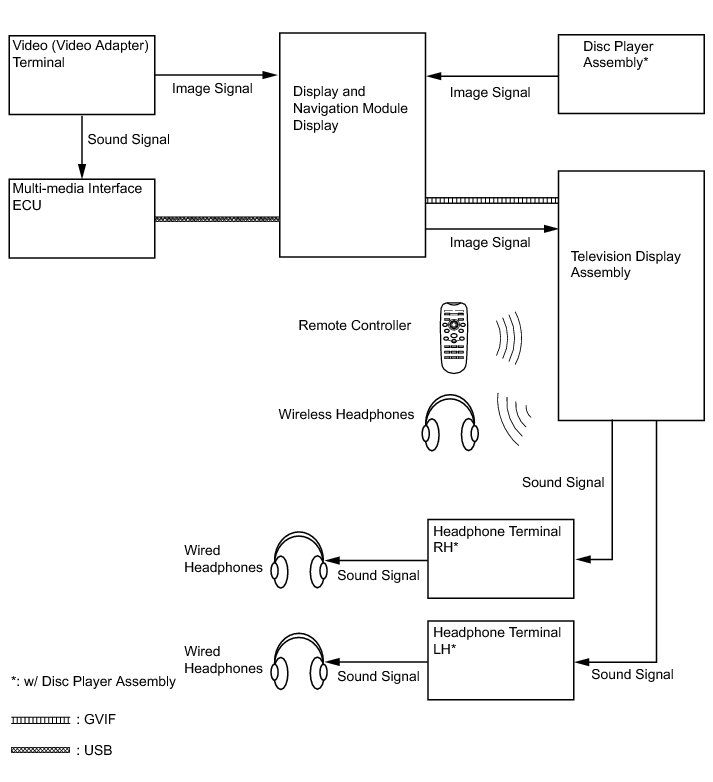

3. OTHER LINE
