Installation

AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY: INSTALLATION

1. INSTALL HEADPHONE TERMINAL (for 4-Passenger with Ottoman)

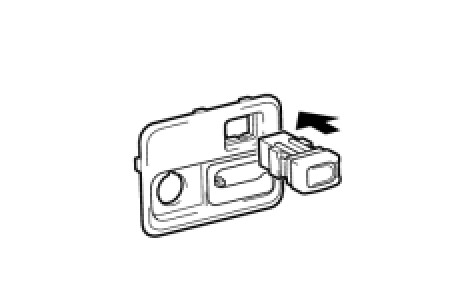

(a) Install the headphone terminal.

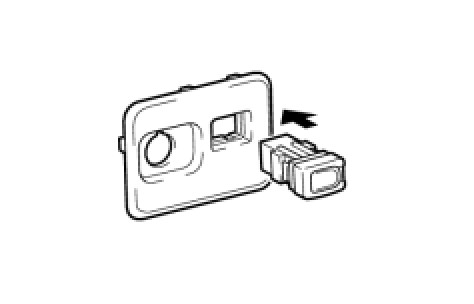

(b) Install the headphone terminal.

(d) Connect the 2 connectors.

2. INSTALL REAR SEAT CONSOLE BOX ASSEMBLY (for 4-Passenger with Ottoman) Installation

3. INSTALL HEADPHONE TERMINAL (for 5-Passenger with Ottoman)

(a) Attach the 3 claws to install the headphone terminal.

HINT
Use the same procedure for both headphone terminals.

4. INSTALL REAR NO. 1 SEAT CENTER ARMREST PANEL (for 5-Passenger with Ottoman) Reassembly

5. INSTALL CENTER SEATBACK FRAME SUB-ASSEMBLY (for 5-Passenger with Ottoman) Reassembly

6. INSTALL REAR SEAT ARMREST HOLE COVER (for 5-Passenger with Ottoman) Reassembly

7. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (for 5-Passenger with Ottoman) Installation

8. INSTALL REAR CENTER SEAT CUSHION ASSEMBLY (for 5-Passenger with Ottoman) Installation

9. INSTALL STEREO JACK ADAPTER ASSEMBLY (for 4-Passenger with Ottoman)

(a) Attach the 2 claws to install the adapter.

10. INSTALL LOWER CONSOLE BOX POCKET (for 4-Passenger with Ottoman)

(a) Attach the 8 claws to install the lower console box pocket.

(b) Connect the connector.

11. INSTALL STEREO JACK ADAPTER ASSEMBLY

(a) Attach the 2 claws to install the adapter.

12. INSTALL LOWER CONSOLE BOX POCKET

(a) Attach the 8 claws to install the lower console box pocket.

(b) Connect the connector.

13. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

14. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY Installation

15. INSTALL NO. 3 BOX PANEL Installation

16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

17. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

18. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

20. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
