Rear View Monitor System
PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: PROBLEM SYMPTOMS TABLE
NOTICE:
The following inspection procedures of the rear view monitor system are described on the assumption that the navigation system is normal. If any navigation system DTC is output, first proceed with troubleshooting of the navigation system.
HINT
* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.

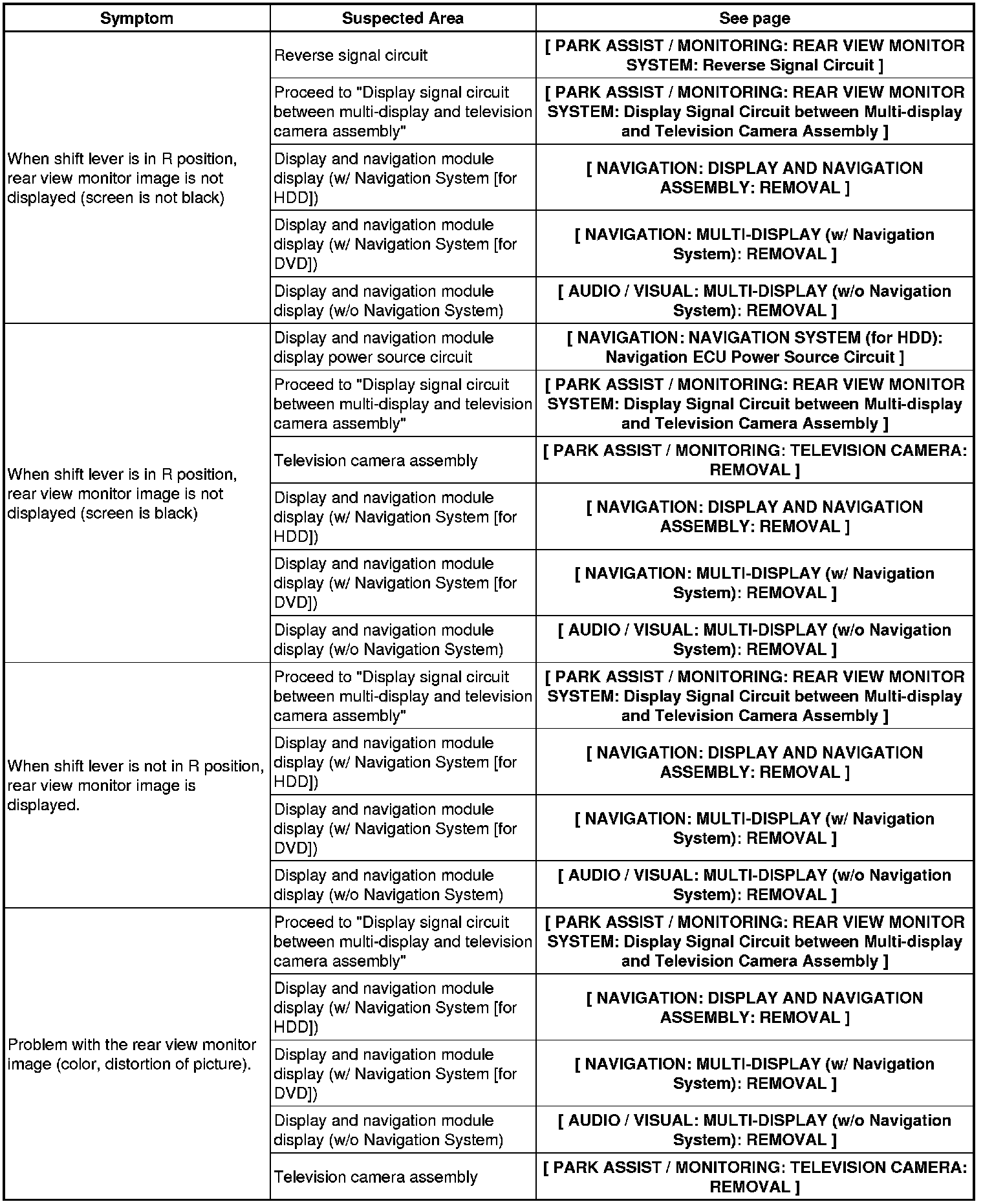

Rear view monitor system
