Pre-Collision System (w/o Driver Monitor Camera)

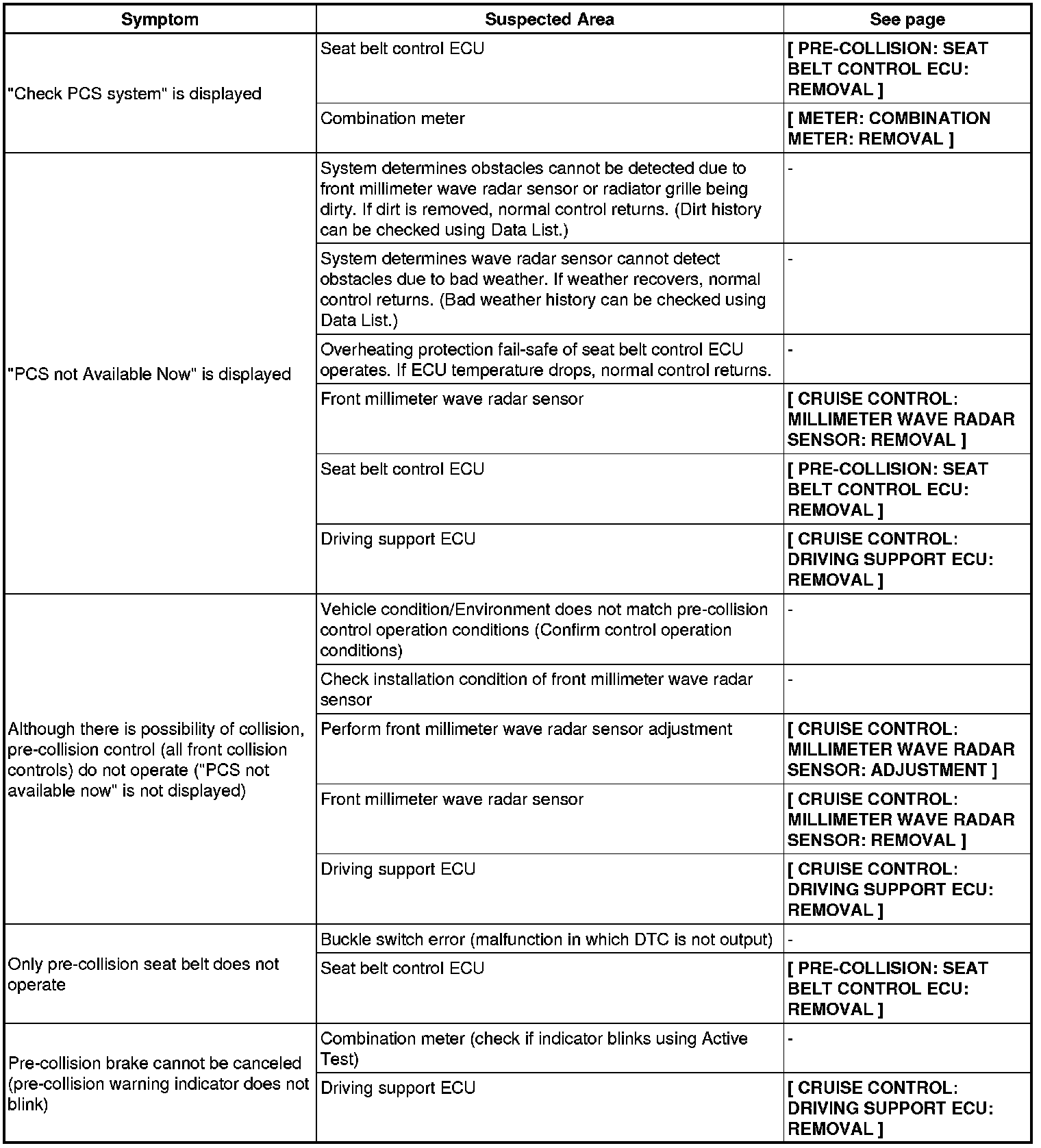

PRE-COLLISION: PRE-COLLISION SYSTEM (w/o Driver Monitor Camera): PROBLEM SYMPTOMS TABLE
HINT
If the normal codes for the pre-collision system and CAN communication system are output but the following problem symptoms are present, perform the malfunction diagnosis by following the "Suspected Area" procedures below.
Pre-collision system
